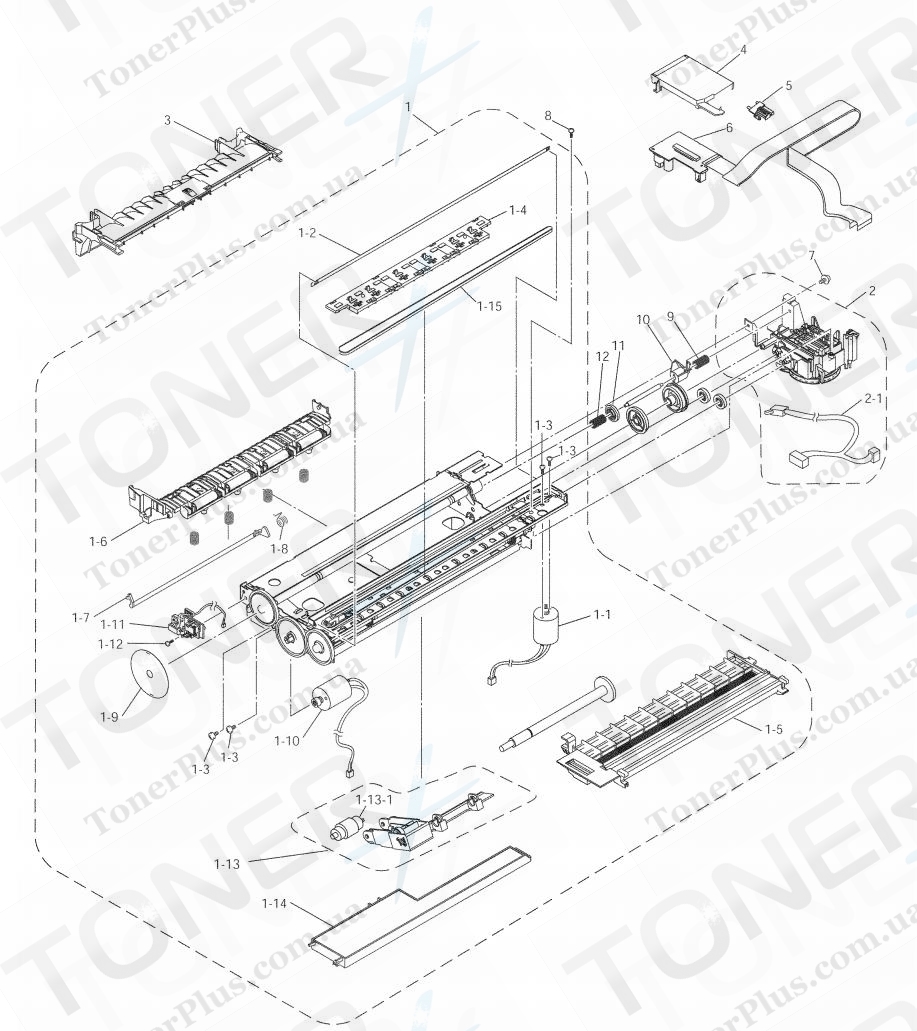

Группа запчастей для Brother DCP315CN - ENGINE

№	Номер партии	Описание	Примечание

1	LF7963001	ENGINE UNIT SUPPLY ASSY
1-1	LF4764001	CARRIAGE MOTOR
1-10	LP0060001	PAPER FEED MOTOR
1-11	LF4809001	SENSOR PCB
1-12	087320616	TAPTITE, CUP S M3X6
1-13	LF4812001	PAPER PULL-IN HOLDER
1-13-1	LF4815001	AUTO SHEET FEEDER ROLLER ASSY	add
1-14	LF4818001	FLUSHING CASE
1-15	LF4768001	TIMING BELT	ADD
1-2	LF4769001	CR ENCODER STRIP
1-3	000300305	SCREW, BIND M3X3
1-4	LP0555001	STAR WHEEL HOLDER ASSY A	chg
1-5	LF7525001	PLATEN
1-6	LP0021001	PAPER PRESSURE HOLDER
1-7	LF4789001	REGISTRATION SENSOR ACTUATOR
1-8	LF4790001	SENSOR ACTUATOR SPRING
1-9	LF4800001	PF ENCODER DISK
10	LF4759001	PURGE LEVER
11	LF4762001	CLUTCH GEAR
12	LF4763001	CLUTCH GEAR SPRING (SHORTER)
2	LF7036001	PURGE UNIT
2-1	LG5780001	INK CARTRIDGE/PURGE HP SWITCH HARNESS
3	LF4806001	JAM CLEAR COVER
4	LF7953001	HEAD COVER ASSY
5	LP0057001	FFC SUPPORT
6	LF7954001	CARRIAGE PCB SUPPLY ASSY
7	087320616	TAPTITE, CUP S M3X6
8	087310815	TAPTITE, CUP B M3X8
9	LF4760001	PURGE LEVER SPRING (LONGER)
