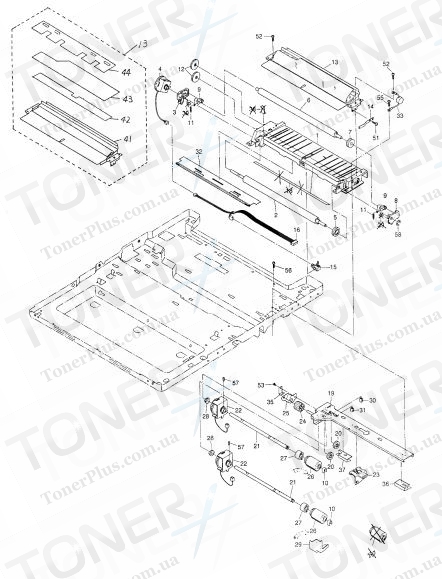

Группа запчастей для Toshiba 1550pc -


Группа запчастей для Toshiba 1550pc -
Номер партии Описание Примечание
1 4400669620 K-FRAME-FEED-U
10 4407972860 STOP-RING-6-5
11 4400670480 SPE051-060-0129
11-1 4400682950 SPE053-080-0152
12 4400669680 GR-10S30-50-06
13 4400682690 K-GUIDE-FEED-U
14 4400670220 SPL-ROL-ALIGN
15 4402842640 SZ-RGT-121
16 4400678050 K-WH-RGTUNT-14
18 4400669710 MYLAR-FEED-L
18-1 4400669710 MYLAR-FEED-L
19 4400670550 K-BASE-FEED-L
2 4400669770 K-ROLL-RGT-L
2-1 4400682990 K-ROLL-RGT-L
20 4400669860 GR-10S18-60-06
21 4400669870 SHAFT-PICK/FEED
22 4400678690 CLT-30E-CW-20
23 4400682790 HOLDER-SHAFT-F
24 4400670050 GR-10S24-210-06
25 4400670040 BRKT-GEAR-24
26 4400669960 K-ROL-PICK/FEED
26-1 4400682770 K-ROL-PICK/FEED
27 4402833110 CLUTCH-6-L
28 4407734980 BUSH-6-GCB
29 4400670610 COVER-FEED-L
3 4400669740 BUSH-RGT-R
3-1 4400682910 BUSH-RGT-R F96H744
30 4843306485 J-0-175694-2
30-1 E0-00116000 175694-2
31 4843308158 J-6-175694-2
31-1 E0-02248000 6-175694-2
32 4400682840 K-BKT-BRUSH-AL
33 4400679630 K-VARISTER-140F
34 4400670350 SPE051-060-0130
35 4400670630 HOLDER-COV-CLT
36 4400670950 K-GUIDE-FED-F
37 4400670960 K-GUIDE-FED-R
38 4400670290 SPACER-FEED-U
38-1 4400670290 SPACER-FEED-U
39 4400670890 SPACER-BUSH-RGT
39-1 4400670890 SPACER-BUSH-RGT
4 4400678700 CLT-30E-CW-40
41 4400682750 GUIDE-FEED-U
42 4400682760 MYLAR-FEED-U
43 4400682780 MYLAR-COV-RGT
44 4400682740 MYLAR-RGT
5 4402813120 GEAR-20-1.0
51 4842040370 TBID3006MSZN3L
52 4842040846 PTBR30*08MSZN3
53 4842040690 TZPAN3006MSZN3
53-1 X0-01458000 S/TPS/FPAN-3X6-Z
55 4842041800 SCREW-M4-7-R
55-1 4842041794 TBIDS-40*08-CP
56 4842041799 SCREW-MR-M3-6
57 4842011062 9HSS30/04MSFB
57-1 X0-00730000 S/SET/K-M3X4-B
58 7405004031 ERR040SKZN3A
58-1 X0-01265000 RR/E-4-ZC
6 4400669720 K-ROLL-RGT-U
7 4402813190 GEAR-15-1.0
8 4400669660 BUSH-RGT-F
8-1 4400682900 BUSH-RGT-F
9 4400669670 LEVER-FEED-U
9-1 4400682940 LEVER-FEED-U
9-2 4400671200 LEVER-FEED-U2
