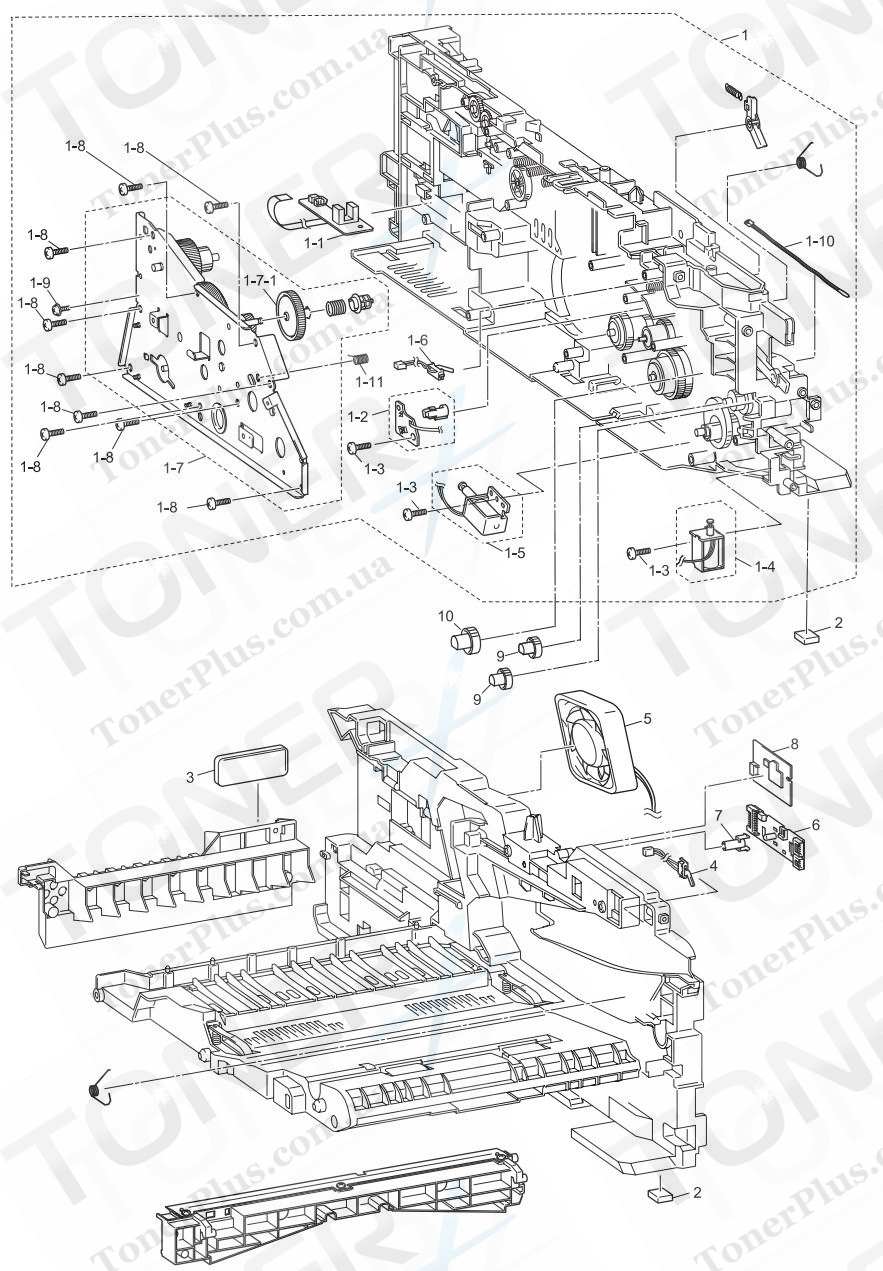

Группа запчастей для Brother DCP7045N - FRAME UNIT


Группа запчастей для Brother DCP7045N - FRAME UNIT
Номер партии Описание Примечание
1 LS0614001 MAIN FRAME L ASSY, DCP7030/DCP7032/DCP7040/ MFC7320/MFC7340
1 LS1747001 MAIN FRAME L ASSY, MFC7450
1 LS0613001 MAIN FRAME L ASSY, DCP7045N/MFC7345N/MFC7440N
1 LS0310001 MAIN FRAME L ASSY, MFC7840N/MFC7840W
1-1 LV0060001 EJECT SENSOR PCB ASSY
1-10 LT0132001 THERMISTOR HARNESS UNIT
1-11 LU2060001 REGISTRATION PENDULUM GEAR SPRING
1-2 LT0129001 TONER SENSOR PCB UNIT ASSY
1-3 085311016 TAPTITE BIND B M3X10
1-4 LU2030001 T1 SOLENOID
1-5 LU2036001 REGISTRATION SOLENOID
1-6 LT0131001 NEW TONER SENSOR HARNESS ASSY
1-7 LU3074001 DRIVE SUB ASSY (SP) chg
1-7-1 LU2067001 DEV GEAR JOINT/53R
1-8 085411216 TAPTITE BIND B M4X12
1-9 LM5867001 TAPTITE CUP S M3X6 SR
10 LU2129001 REGISTRATION GEAR 25 TERMINAL add
2 LJ7403001 RUBBER FOOT
3 LU0922001 FILTER 2 ASSY chg
4 LU2125001 COVER SENSOR HARNESS ASSY
5 LU2126001 FAN MOTOR 60 UNIT
6 LV0066001 TONER LED PCB ASSY
7 LM4267001 LED HOLDER
8 LT0963001 WIRELESS LAN PCB ASSY, MFC7840W CHG
9 LU2128001 FEEDER GEAR 17 TERMINAL add
