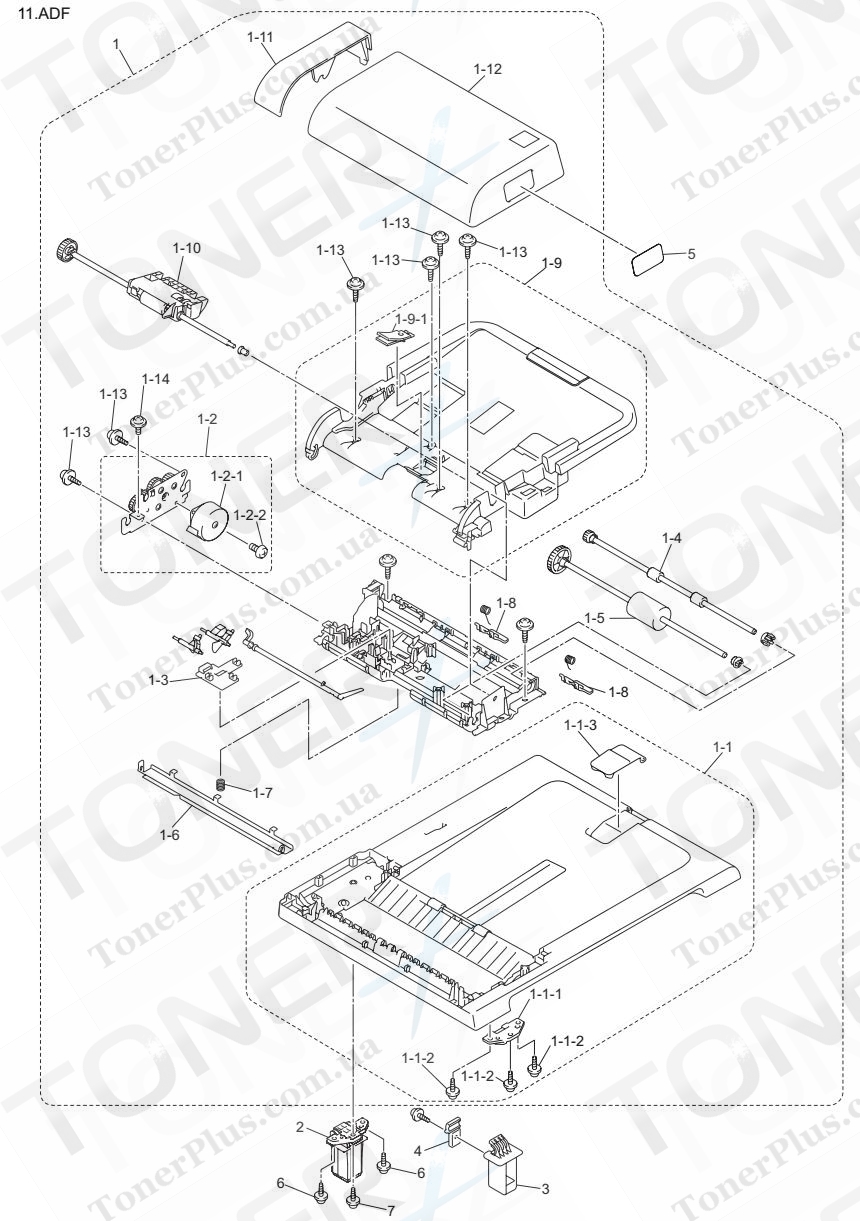

Группа запчастей для Brother MFC9010CN - ADF

№	Номер партии	Описание	Примечание

1	LS8311001	ADF UNIT(SP)
1-1	LS8076001	DOCUMENT COVER SUB ASSY
1-1-1	LS8141001	HINGE BASE
1-1-2	087311016	TAPTITE CUP B M3X10
1-1-3	LS8078001	DOCUMENT STOPPER
1-10	LS8090001	SEPARATE ROLLER SHAFT ASSY
1-11	LS8094001	GEAR COVER
1-12	LS8095001	ADF COVER ASSY
1-13	087311016	TAPTITE CUP B M3X10
1-14	LU5691001	TAPTITE CUP S M3X6 SR
1-2	LS0536001	DRIVE FRAME ASSY
1-2-1	LF9081001	ADF MOTOR
1-2-2	085320616	TAPTITE BIND S M3X6
1-3	LT0722001	ADF SENSOR PCB ASSY	B57T012
1-4	LF6577001	EJECTION ROLLER ASSY
1-5	LF6579001	LF ROLLER ASSY
1-6	LP2591001	DOCUMENT HOLD ASSY
1-7	LP2594001	DOCUMENT HOLD SPRING
1-8	LS8083001	PAPER STACK LEVER
1-9	LS8085001	UPPER DOCUMENT CHUTE ASSY
1-9-1	LS0978001	SEPARATION RUBBER ASSY
2	LS3329001	HINGE ASSY L
3	LS8154001	HINGE R
4	LS8155001	HINGE R SUPPORT
5	LS8203001	MFC EMBLEM, MFC9320CW
5	LS8205001	DCP EMBLEM, DCP9010CN
5	LS8204001	MFC EMBLEM, MFC9010CN/MFC9120CN
6	087311016	TAPTITE CUP B M3X10
7	087321217	TAPTITE CUP S M3X12
