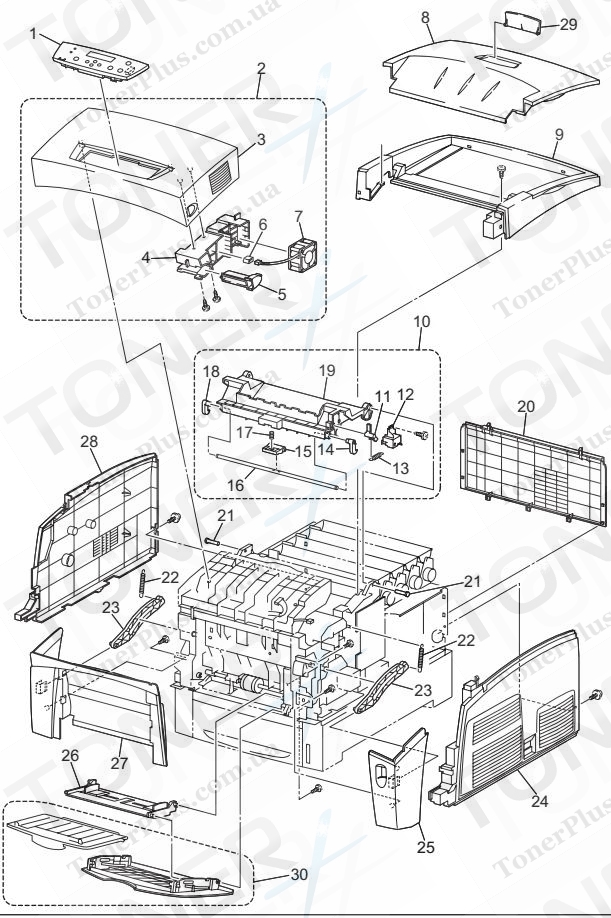

Группа запчастей для Brother HL4200CN - COVER


Группа запчастей для Brother HL4200CN - COVER
Номер партии Описание Примечание
1 LM0408001 CONSOLE PANEL HL-4200
10 LM0413001 PAPER OUTLET COVER
11 LM0139001 CAM I/L
12 LM0140001 COVER CAM
13 LM0141001 SPRING CAM I/L
14 LM0142001 LATCH TOP R
15 LM0143001 HANDLE TOP
16 LM0144001 SHAFT LATCH TOP
17 LM0145001 SPRING HANDLE
18 LM0414001 LATCH TOP L
19 LM0147001 COVER TOP PRINT HEAD CARTRIDGE
2 LM0409001 COVER ASSY FRONT HEAD
20 LM0148001 COVER REAR
21 LM0149001 STUD TOP
22 LJ3990001 SPRING LINK
23 LM0150001 LINK
24 LM0415001 COVER SIDE R
25 LJ3992001 COVER ASSY FRONT IN
26 LM0153001 TRAY ASSY BASE
27 LJ3993001 COVER ASSY FRONT
28 LJ3994001 COVER SIDE L
29 LJ3995001 COVER TOP STOPPER
3 LM0133001 COVER FRONT HEAD
30 LJ3996001 TRAY ASSY LOW
4 LM0410001 HOLDER LEVER OUT
5 LM0135001 LEVER OUT
6 LM0136001 CON.AMP 175694-3
7 LM0892001 FAN FUSER CHG
8 LM0411001 COVER TOP
9 LM0412001 COVER TOP MAIN
