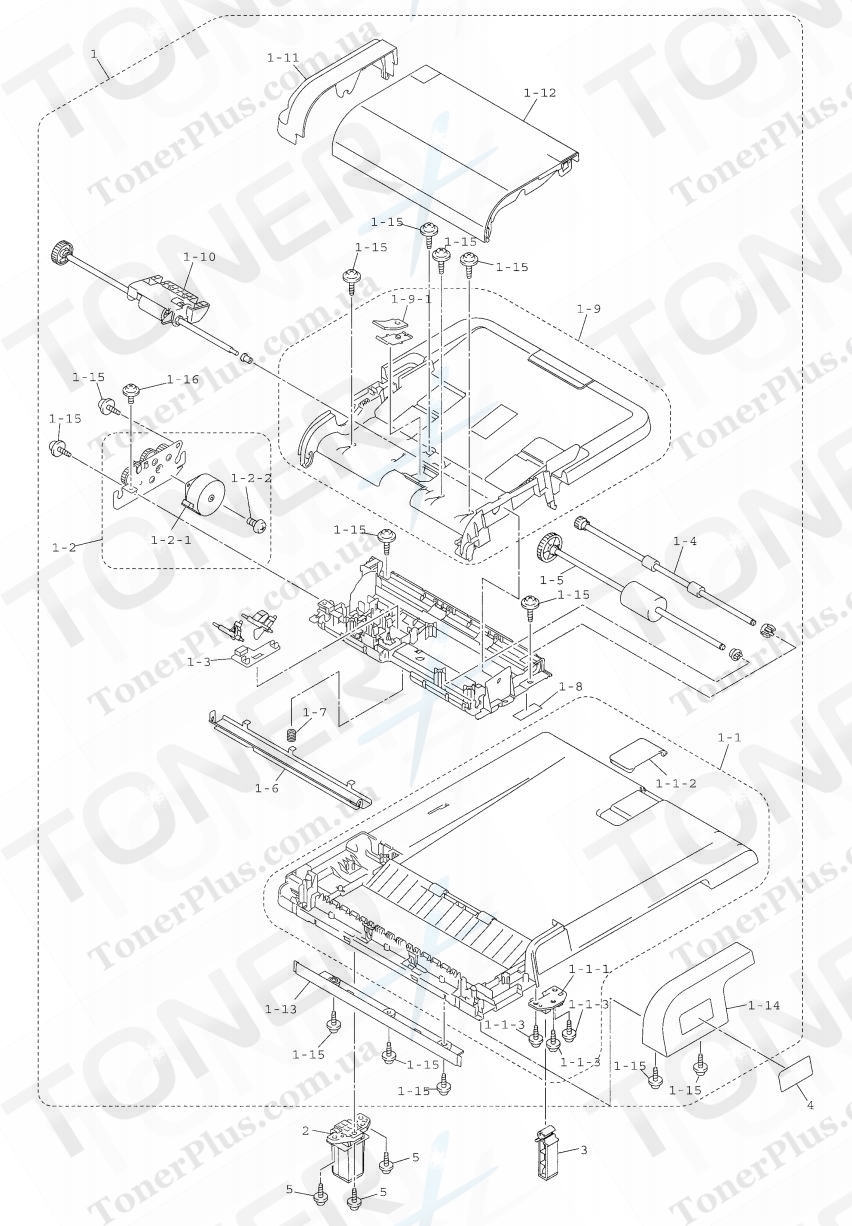

Группа запчастей для Brother MFC9440CN - ADF


Группа запчастей для Brother MFC9440CN - ADF
Номер партии Описание Примечание
1 LP7106001 ADF UNIT(SP)
1-1 LP2583001 DOCUMENT COVER SUB ASSY, GRAY(1861)
1-1-1 LP2588001 HINGE BASE R, GRAY(1861)
1-1-2 LP2589001 DOCUMENT STOPPER, GRAY(1861)
1-1-3 087311016 TAPTITE CUP B M3X10
1-10 LP2601001 SEPARATE ROLLER SHAFT ASSY
1-11 LP2603001 GEAR COVER,GRAY(1682)
1-12 LP2604001 ADF COVER ASSY, GRAY(1862)
1-13 LP2606001 ADF SIDE COVER, GRAY(1862)
1-14 LP2607001 ADF FRONT COVER, GRAY(1862)
1-15 087311016 TAPTITE CUP B M3X10
1-16 087320616 TAPTITE CUP S M3X6
1-2 LF9080001 DRIVE FRAME ASSY
1-2-1 LF9081001 ADF MOTOR
1-2-2 085320616 TAPTITE BIND S M3X6
1-3 LG7146001 ADF SENSOR PCB ASSY B53K909
1-4 LF6577001 EJECTION ROLLER ASSY
1-5 LF6579001 LF ROLLER ASSY
1-6 LP2591001 DOCUMENT HOLD ASSY
1-7 LP2594001 DOCUMENT SPRING
1-8 LF6865001 LOWER CHUTE FILM
1-9 LP2595001 UPPER DOCUMENT CHUTE ASSY, GRAY(1862)
1-9-1 LF7135001 SEPARATION RUBBER
2 LP2609001 HINGE ASSY L
3 LE6244004 HINGE ARM R, GRAY(1861)
4 LP2680001 ADF EMBLEM, DCP9040CN
4 LP2613001 ADF EMBLEM, MFC9440CN
5 087311016 TAPTITE CUP B M3X10
