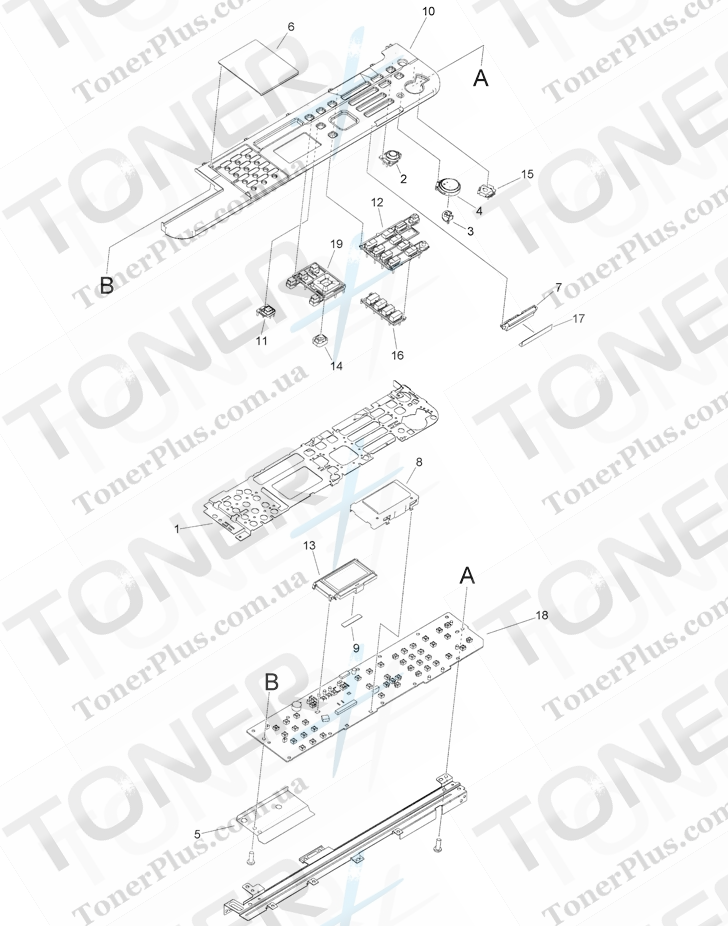

Каталог запчастей для Canon iR1435 - 130B CONTROL PANEL ASSEMBLY (IR1435J LTN 120V)


Каталог запчастей для Canon iR1435 - 130B CONTROL PANEL ASSEMBLY (IR1435J LTN 120V)
Номер партии Описание Примечание
1 FE3-6431-000 PLATE, GROUNDING
10 FL0-3652-000 COVER, CONTROL PANEL
11 FL0-3697-000 KEY TOP, RESET
12 FL0-3692-000 KEY TOP, NUMBERS, 1
13 FK4-0521-000 LCD UNIT
130B FM1-F563-000 CONTROL PANEL ASSEMBLY IR1435J LTN 120V
14 FL0-3694-000 KEY TOP, OK
15 FL0-3695-000 KEY TOP, STOP
16 FL0-3698-000 KEY TOP, NUMBERS, 2
17 FL0-3450-000 SHEET, LED PROTECT.
18 FM1-G929-000 CONTROL PANEL PCB ASSEMBLY
19 FL0-3691-000 KEY TOP, UP/DOWN
2 FL0-3696-000 KEY TOP, ENERGY SAVE
3 FE4-0595-000 COVER, LED
4 FL0-0671-000 KEY TOP, START
5 FL0-3445-000 SHEET, PCB PROTECT.
6 FE3-6434-000 COVER, ONE-TOUCH
7 FE3-6435-000 COVER, LED
8 FE3-6447-000 COVER, LCD
9 FL0-3348-000 SHEET
