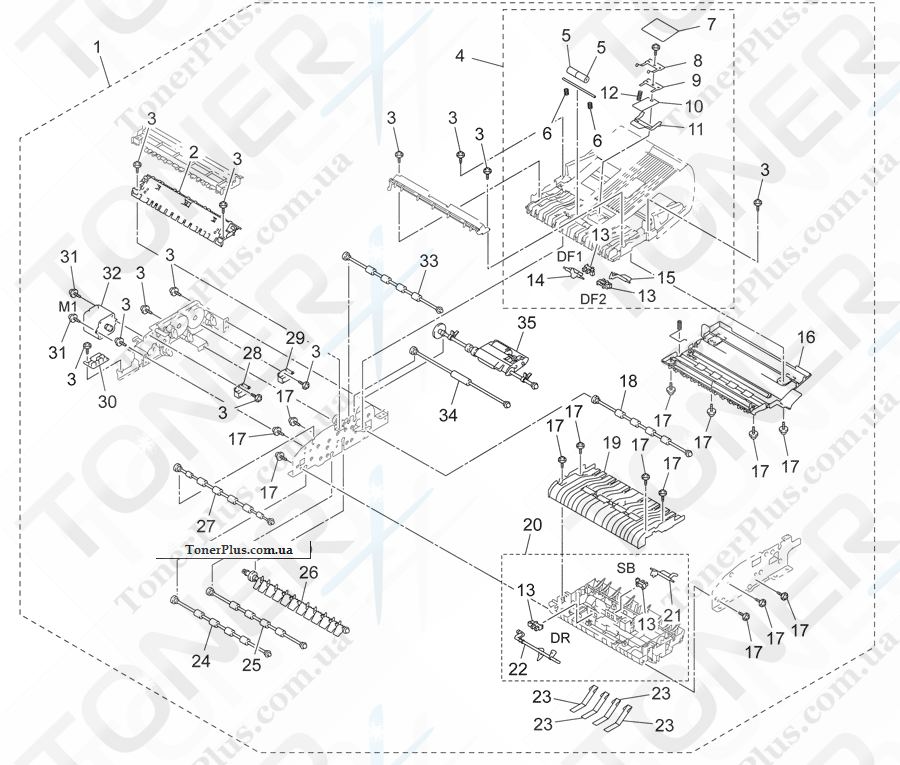

Каталог запчастей для Konica-Minolta bizhub 20 - ADF UNIT


Каталог запчастей для Konica-Minolta bizhub 20 - ADF UNIT
Номер партии Описание Примечание
1 A32R PP2M 01 ADF CHUTE ASSY DX
10 A32R PP13 00 SEPARATION RUBBER
11 A32R PP12 00 RUBBER HOLDER
12 A32R PP11 00 SEPARATION SPRING
13 A32R PP1J 00 PHOTO INTERRUPTER
14 A32R PP10 00 ACTUATOR FRONT1
15 A32R PP1E 00 ACTUATOR FRONT2
16 A32R PP14 01 EXIT CHUTE COVER ASSY
17 A32R PP01 00 TAPTITE CUP B M3X10
18 A32R PP0V 00 EXIT ROLLER ASSY
19 A32R PP0T 00 UPPER MAIN CHUTE ASSY
2 A32R PP1G 00 SB CHUTE ASSY
20 A32R PP1A 00 LOWER MAIN CHUTE ASSY
21 A32R PP1B 00 ACTUATOR SB
22 A32R PP0U 00 ACTUATOR R
23 A32R PP26 00 LF4 FILM
24 A32R PP0X 00 LF ROLLER3 ASSY
25 A32R PP0Y 00 LF ROLLER4 ASSY
26 A32R PP1C 00 FLAP ASSY
27 A32R PP2E 00 LF ROLLER2 ASSY
28 A32R PP27 00 S/B SOLENOID ASSY
29 A32R PP28 00 PF SOLENOID ASSY
3 A32R PP2A 00 TAPTITE CUP S M3X8 SR
30 A32R PP1X 00 ADF RELAY PCB
31 A32R PP04 00 SCREW PAN (S/P WASHER) M3X6
32 A32R PP0F 00 ADF MOTOR
33 A32R PP1F 00 SB ROLLER ASSY
34 A32R PP2B 00 LF ROLLER1 ASSY
35 A32R PP2F 00 PF ROLLER HOLDER ASSY
4 A32R PP1D 01 PAPER FEED CHUTE ASSY
5 A32R PP24 00 PRESSURE ROLLER
6 A32R PP08 00 LF SPRING
7 A32R PP07 00 ADF FILM
8 A32R PP06 00 SPRING PLATE ADF FRONT A ASSY
9 A32R PP2D 00 BACK SHEET ADF
