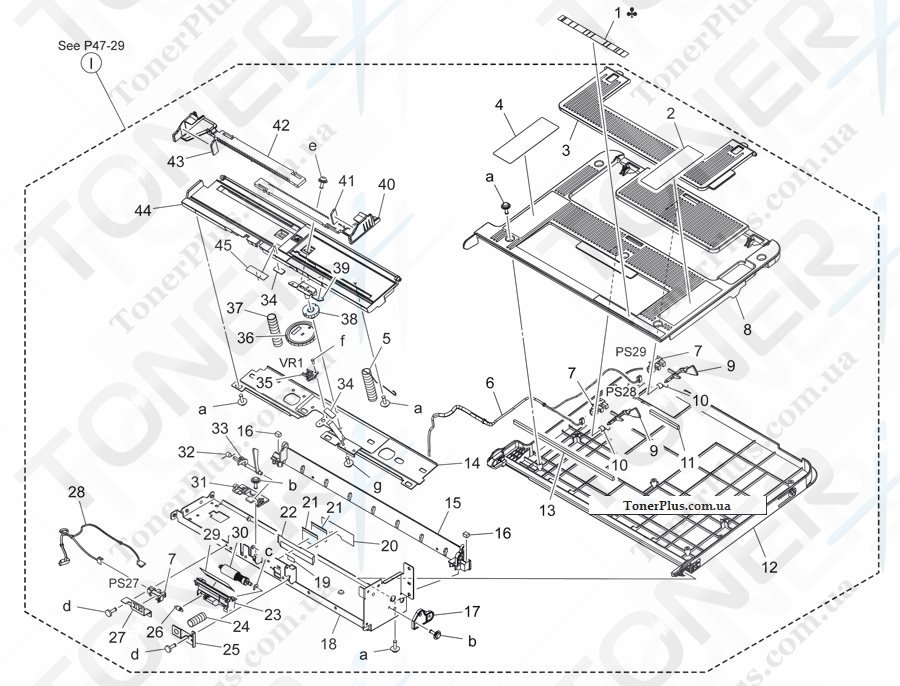

Каталог запчастей для Konica-Minolta bizhub 454e - BYPASS TRAY SECTION 2


Каталог запчастей для Konica-Minolta bizhub 454e - BYPASS TRAY SECTION 2
Номер партии Описание Примечание
1 A161944101 Label Scale/Metric A,A1,C,D1,D3,E,F2,G 1,I,K
1 A161944201 Label Scale/Inch B,G2
10 A161592501 Torsion Spring C
11 A161592600 Holding Cover /2 D
12 A161592002 Bypass Tray C
13 A161592300 Holding Cover D
14 A161593701 Mounting Plate D
15 A161590303 Support Holder D
16 A161594201 Cushion D
17 A161591600 Hold Plate C
18 A161590101 Bypass Frame D
19 A161595600 Slide Guide C
2 A161944300 Label Paper Supply 1 D
20 A161595100 Seal C
21 4030340301 GUIDE C
22 A161595300 Separating Plate C
23 A161595000 Holder D
24 4030347501 PRESSURE SPRING C
25 A161595400 Hold Plate D
26 A161595200 Pulling Coil spring C
27 A161591800 Sensor Holder D
28 A161N10X00 Paperfeed Detection harness /2 D
29 A02E597600 Guide C
3 A161592200 Auxiliary Tray C
30 4658015106 Roller Assy A
31 A161591100 Sensor Holder D
32 A161591000 Torsion Spring C
33 A161590901 Actuator C
34 A161593800 Friction Plate C
35 A161M50400 VR D
36 A161594300 Regulating Gear 41T C
37 A161593400 Compressing Coil spring C
38 A02E592100 Gear 20T C
39 A161R7A000 Caulking Gear Mounting Plate D
4 A161944400 Label Paper Supply 2 D
40 A5C1593100 Regulating Plate /L C
41 A161594600 Brake Part /F C
42 A5C1593200 Regulating Plate /R C
43 A161594500 Brake Part C
44 A161593001 Lifting Plate D
45 A161594000 Separating Sheet C
5 A161593600 Compressing Coil spring C
6 A161N11Q01 Paperfeed Detection harness /1 D
7 A108M50100 Photointerrupter B
8 A5C1592100 Bypass Tray /Upper C
9 A161592400 Actuator C
