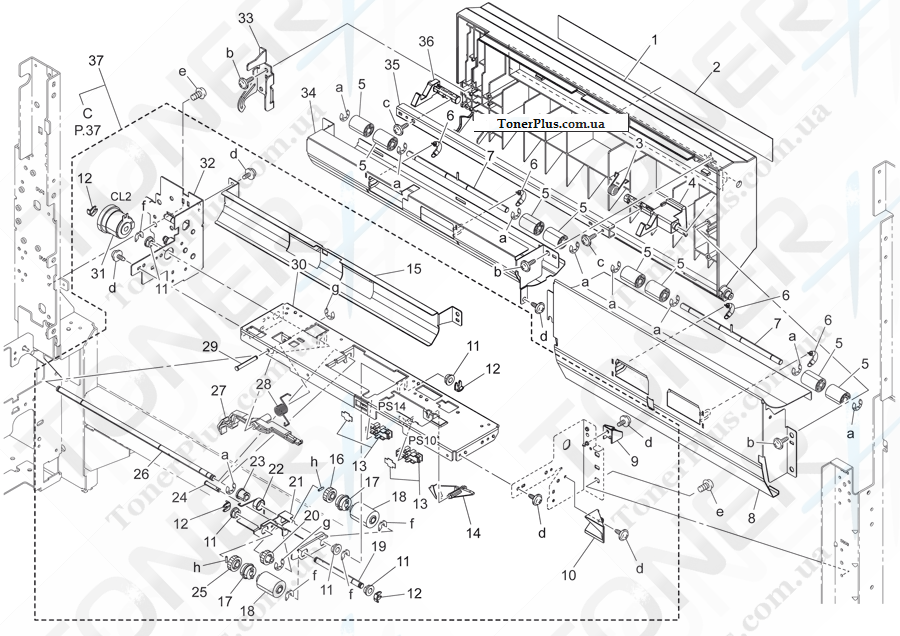

Каталог запчастей для Konica-Minolta bizhub 502 - 2ND PAPER FEED


Каталог запчастей для Konica-Minolta bizhub 502 - 2ND PAPER FEED
Номер партии Описание Примечание
1 A00J571701 Paper feed Door /Lower C
10 A0P0567600 Holding Guide D
11 4131300301 BUSHING C
12 56AA40490 SHAFT STOPPER 4 C
13 A108R90000 PHOTO INTERRUPTER I
14 4030301612 ACTUATOR C
15 A00J572300 Guide Plate C
16 4425301301 GEAR 30T C
17 A00J563500 Clutch C
18 A00J563600 Roller A
19 A00J564000 Shaft /P D
2 A00J574600 Attaching Cover C
20 4030300801 GEAR 29T C
21 A00J560100 Paper feed Holder D
22 A00J560302 Torsion Spring C
23 1065308601 BUSHING C
24 4040309701 SHAFT D
25 4425301601 GEAR 32T C
26 A0P0560200 Paper feed Shaft D
27 A00J567300 Release Lever D
28 A00J566801 Torsion Spring C
29 A00J566500 Shaft D
3 A00J566600 Torsion Spring C
30 A00J560400 Paper feed Frame D
31 57AA82030 CONVEYANCE DRIVE CLUTCH C
32 A00JR7AE00 FRAME / PAPER FEED 2 D
33 A00J573601 Stopper Door D
34 A0P0571800 Guide Plate /Upper D
35 A00J573900 MOUNTING PLATE D
36 A00J573801 Lock Claw /Rear C
37 A0P0R72100 Paper feed 2 assy C
4 A00J573701 Lock Claw /Front C
5 4030312201 ROLL C
6 A00J574500 PULLING SPRING /LOWER C
7 A00J574100 IDLER SHAFT D
8 A0P0571900 Guide Plate /Lower D
9 A00J574201 Lock Catch C
