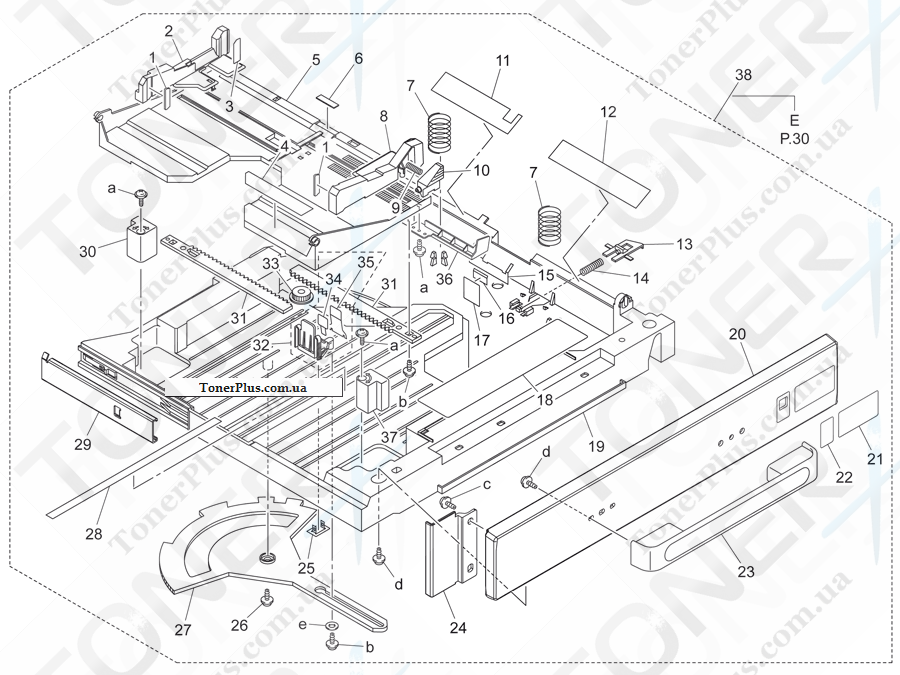

Каталог запчастей для Konica-Minolta bizhub C352P - MPT CASSETTE TRAY SECTION

№	Номер партии	Описание	Примечание
1	4036 3086 01	BRAKE	D
10	4037 3210 01	LEVER	C
11	4004 3040 02	GUIDE	C
12	4004 3024 01	GUIDE	C
13	1164 3061 01	LEVER	C
14	1164 3062 01	PRESSURE SPRING	C
15	4004 3033 01	GUIDE PLATE	D
16	4004 3038 01	GUIDE	C
17	4004 3008 01	SEAL	C
18	4038 7337 01	LABEL PAPER SUPPLY	C
19	4036 3021 02	CASSETTE	D
2	4036 3028 12	REGULATING PLATE	C
2	4036 3028 01 Old	REGULATING PLATE	C
20	4038 3020 03	COVER	D
21	4038 7312 01	LABEL NUMBER	C
22	4030 7301 02	LABEL NEAR EMPTY	C
23	4036 3025 01	HANDLE	C
24	4038 3071 02	COVER	C
25	4004 3031 01	BRACKET	D
26	4163 5293 01	SCREW	C
27	4004 3051 02	LEVER	C
28	4036 7313 01	LABEL MP FD	D
29	4039 5604 00	RAIL	D
3	4004 7324 01	LABEL CAPACITY	C
30	4037 3227 01	SPACER	D
31	4004 3032 01	RACK	C
32	4038 R712 00	REGULATING PLATE R ASSY	C
33	1164 3045 01	GEAR 20T	C
34	4021 3036 01	GUIDE	C
35	4004 3042 01	GUIDE	C
36	4036 3019 01	LEVER	D
37	4037 3226 01	SPACER	D
38	9J06 R716 00	MULTIPURPOSE CASSETTE	S
4	4036 7314 01	LABEL MP CD	D
5	4036 3022 03	LIFTING PLATE	C
5	4036 3022 01 Old	LIFTING PLATE	D
6	4687 3281 01	FRICTION SHEET	C
7	4134 3106 01	PRESSURE SPRING	C
8	4036 3008 01	REGULATING PLATE	C
9	4038 5601 00	PRESSURE SPRING	C
