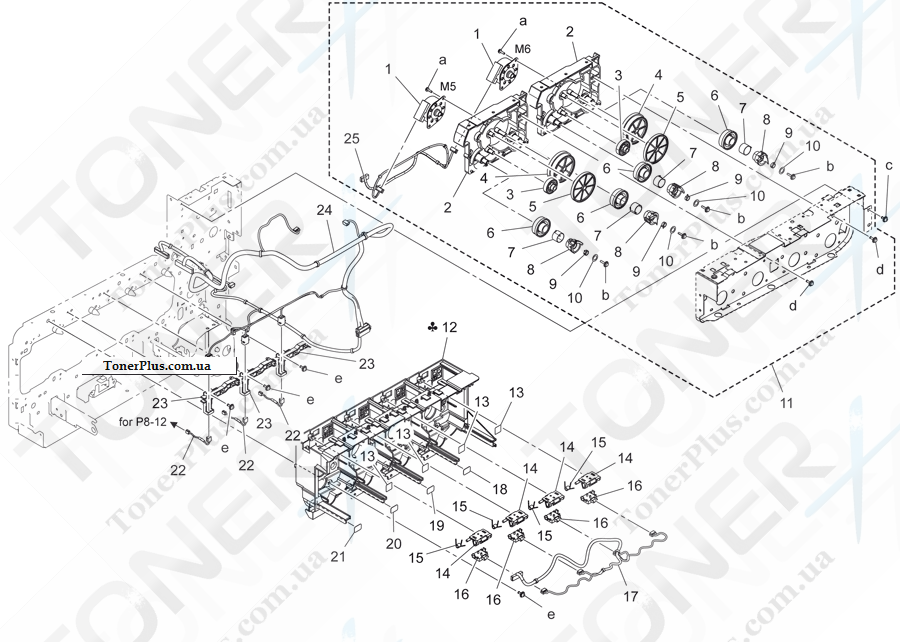

Каталог запчастей для Konica-Minolta bizhub C3850 - TONER BOTTLE DRIVE SECTION


Каталог запчастей для Konica-Minolta bizhub C3850 - TONER BOTTLE DRIVE SECTION
Номер партии Описание Примечание
1 A5C1M10400 Stepping motor
10 4131412801 WASHER
11 A3GNR70200 TB Drive Assy
12 A3GN402200 Holder D1,D3,E,F2,G1,I,K
12 A3GN400002 Holder A,A1
12 A3GN402101 Holder C
12 A3GN402001 Holder B,G2,H
13 A2X0949100 Label
14 A3GN400900 Mounting Plate
15 A3GN401000 Torsion Coil spring
16 A0EDM60001 Relay Connector
17 A3GNN10700 Toner Detection harness
18 A3GN401600 Label K
19 A3GN401500 Label C
2 A3GN400100 Holder
20 A3GN401400 Label M
21 A3GN401300 Label Y
22 A3GNN10U00 Relay Wiring
23 A3GN137100 Guide
24 A3GNN10Q00 Transfer Wiring
25 A3GNN10800 Toner Drive harness
3 A3GN400400 Gear 25T
4 A3GN400300 Gear 49/86T
5 A3GN400200 Gear 20/107T
6 A02E240600 Gear 30T
7 4038541101 SPRING
8 A3GN400800 Guide
9 A3GN401100 Spring
