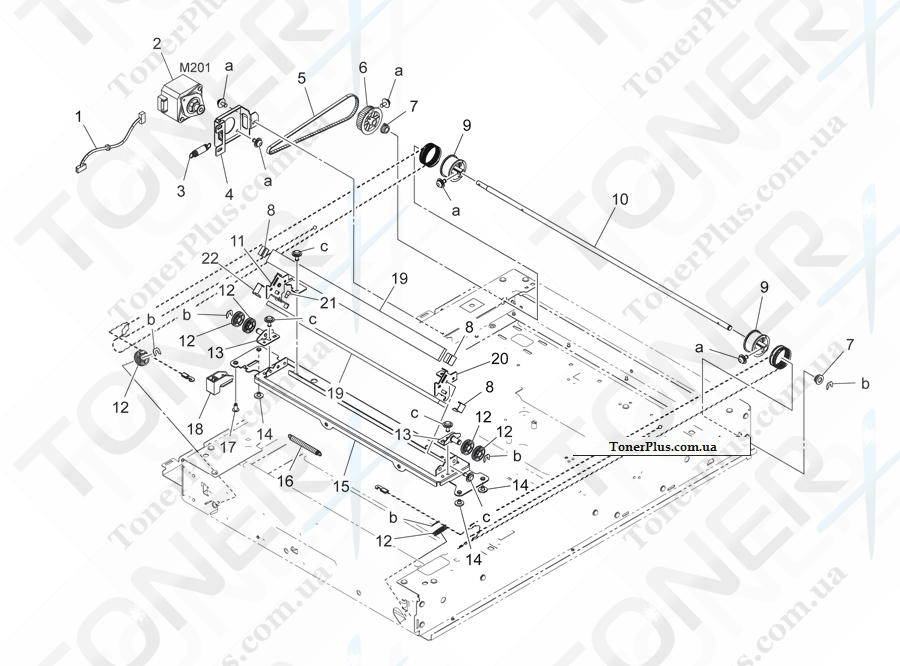

Каталог запчастей для Konica-Minolta bizhub C454e - SCANNER SECTION 3


Каталог запчастей для Konica-Minolta bizhub C454e - SCANNER SECTION 3
Номер партии Описание Примечание
1 A5C1N14300 Scanner Wiring D
10 A161275400 Shaft D
11 A161273701 Mounting Plate D
12 A0ED273600 Pulley C
13 A161273401 Mounting Plate D
14 A161271000 Bushing D
15 A161273100 Frame D
16 A0ED276301 Pulling Spring D
17 A161271100 Bushing D
18 A161273500 Guide Part D
19 A0ED274300 Mirror D
2 A5C1M10A00 Stepping motor C
20 A161273800 Mounting Plate D
21 A161274600 Adjusting Screw C
22 A161274500 Plate spring /1 D
3 A161275700 Pulling Spring D
4 A161276000 Mounting Plate D
5 A161275600 Timing belt 335L D
6 A161275500 Pulley 103T D
7 A161276500 Bearing D
8 A0ED274400 Plate spring D
9 A161275300 Pulley D
