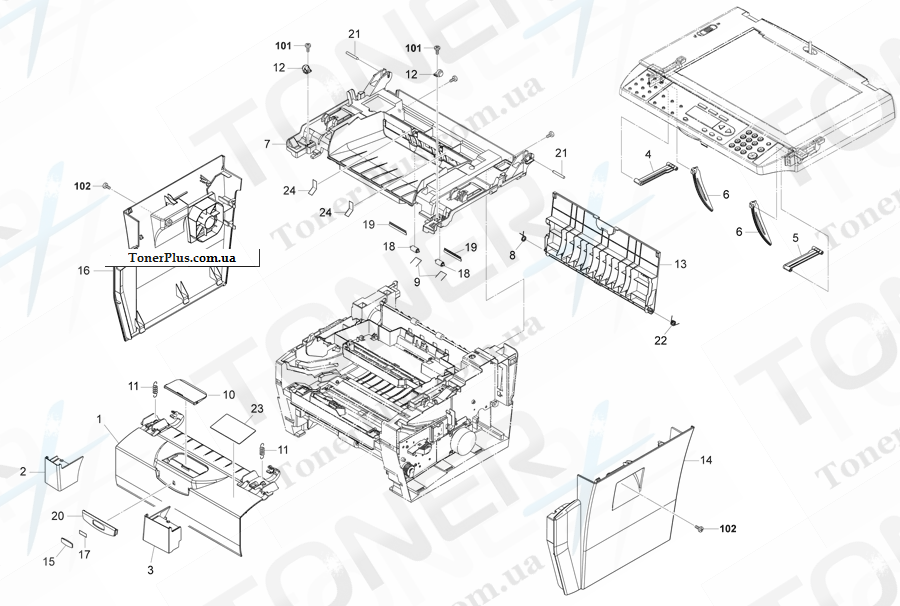

Каталог запчастей для Kyocera-Mita FS1016MFP - Covers


Каталог запчастей для Kyocera-Mita FS1016MFP - Covers
Номер партии Описание Примечание
1 302G404020 COVER LID 2G404020
10 302G404050 TRAY SUBTRAY 2G404050
101 5MBTPB3008PW++R BIND T.T SCREW(+) / M3 X 8 B1A63080
102 5MBTPB3012PW++R BIND T.T SCREW(+) / M3 X 12 CRFREE P-T B1A63120
11 302G404150 SPRING ARM 2G404150
12 302G404160 DAMPER 2G404160
13 5MVB874SB011 COVER REAR 2FV04060
14 302G404040 COVER SIDE R 2G404040
15 302F904120 EMBLEM KYOCERA 2F904120
16 302G404030 COVER SIDE L 2G404030
17 302F904130 TAPE EMBLEM 2F904130
18 5MVM363DB001 PULLEY FD 2FV04150
19 5MVS625XF001 DISCHARGER FD 2FV04140
2 302G404070 ARM LID L 2G404070
20 302G404140 PLATE LOGOTYPE 2G404140
21 302G404130 PIN PIVOT OD4 L20 2G404130
22 302FV04200 SPRING COVER REAR R 2FV04200
23 302G404380 LABEL LID OPERATION 2G404380
24 302G404450 SHEET FD 2G404450
3 302G404080 ARM LID R 2G404080
4 302G404090 LINK LIFT L 2G404090
5 302G404100 LINK LIFT R 2G404100
6 302G404110 GEAR ARM DAMPING 2G404110
7 302G404010 COVER TOP PRINTER 2G404010
8 5MMW126SD001 SPRING COVER REAR 2FV04130
9 302G404060 SPRING PULLEY FD 2G404060
