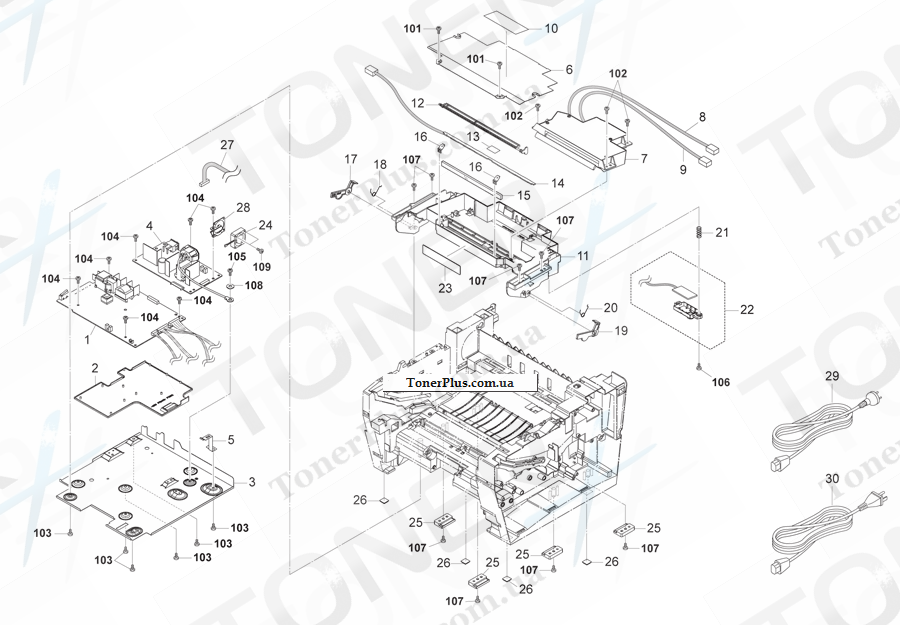

Каталог запчастей для Kyocera-Mita FS1016MFP - Frames 2


Каталог запчастей для Kyocera-Mita FS1016MFP - Frames 2
Номер партии Описание Примечание
1 302G480010 P.W.B ASSY ENGINE(SP) 2G480010
10 302FV12080 LABEL LASER CAUTION 2FV12080
101 5MBTPB3008PW++R BIND T.T SCREW(+) / M3 X 8 B1A63080
102 5MBTPB3012PW++R BIND T.T SCREW(+) / M3 X 12 B1A63120
103 5MBTPB4010WW BIND T.T SCREW(+) / M4 X 10 B8204100
104 BAB53060 +TP TAP-TITE S SCREW M3X06 B1A53060
105 5MBTPB4006TW++R BIND T.T SCREW(+) / M4 X 6 B1A54060
106 BAA63080 +TP TAP-TITE P SCREW M3X08
107 B4B74100 +TP T.T SCREW(+) / M4 X 10 CRFREE B-T
108 5MBWG40854LD OT.LOCK WASHER / M4X8.5X0.4T CP003020
109 5MBTPB3014TW++R BIND T.T SCREW(+) / M3 X 14 CRFREE S-T B1A53140
11 5MVX876XB002 FRAME MID 2FV12060
12 5MVX821SB014 SHUTTER LSU 2FV12050
13 302FV12070 SHEET ERASER 2FV12070
14 5AAPRELC1008AHR P.W.B.ASSY KP-5157 2FV01100
15 2DC13030 MIRROR LSU
16 5MMX221LD034 SPRING MIRROR 2FV12030
17 5MVX631SB006 LEVER STOPPER L 2FV02420
18 5MMW165SD001 SPRING STOPPER L 2FV02400
19 5MVX631SB007 LEVER STOPPER R 2FV02430
2 5MVS777CB001 COVER PWB 2FV02000
20 5MMW165SD002 SPRING STOPPER R 2FV02410
21 5MMW261LD070 SPRING FULL SENSOR 2FV12010
22 302FV00040 FULL SENSOR ASSY 2FV00040
23 302G402040 LABE CONT OPERATION 2G402040
24 302G444020 FAN MOTOR 2G444020
25 5MVX431SB012 RAIL FRAME 2FV02450
26 5MVX221RB014 FOOT 2BS03110
27 302G446030 CONN.CORD ASSY LVP-MAIN 2G446030
28 302G402010 BRACKET FAN 2G402010
29 2DC27410 AC CORD ASSY
3 5MMX884SL002 PLATE BOTTOM FRAME 2FV02380
30 302FV45020 AC CORD ASSY 2FV45020
4 302G445010 UNIT LOW VOLTAGE 100 2G445010
4 302G445020 UNIT LOW VOLTAGE 200 2G445020
5 5MMX541LD002 PLATE EARTH A 2FV02350
6 5MMS875SL007 COVER SCANNER 2FV12020
7 302FV93092 LK-110 2FV93092
8 302G446010 CONN.CORD ASSY MAIN-LSU 2G446010
9 302FV26052 CONN CORD ASSY 2FV26052
