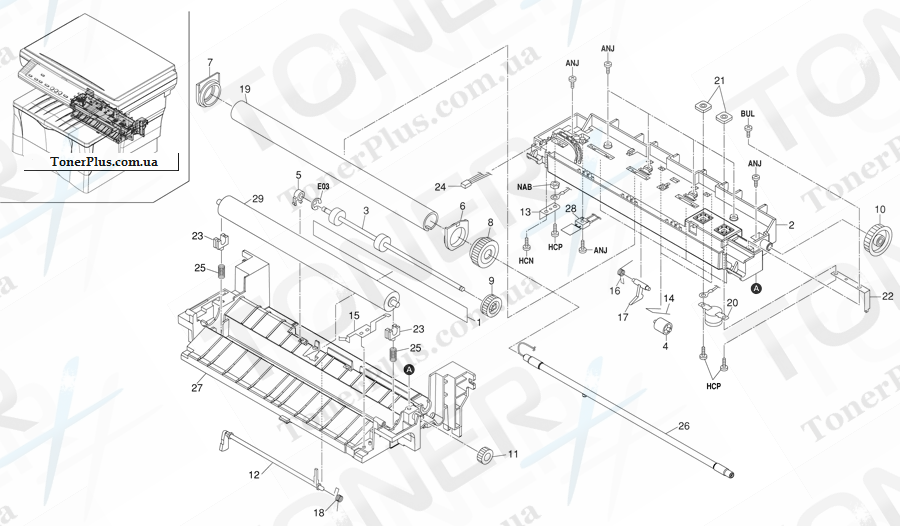

Каталог запчастей для Kyocera-Mita FS1018MFP - FUSER UNIT


Каталог запчастей для Kyocera-Mita FS1018MFP - FUSER UNIT
Номер партии Описание Примечание
* 2DC93051 PARTS,FUSER UNIT(E)SP
* 2DC93061 PARTS,FUSER UNIT(U)SP
1 2A805020 LABEL FUSER CAUTION 5MVVL731WN14
10 2A820180 GEAR IDLE Z34 5MVG148XN009
11 2A820190 GEAR IDLE Z18 5MVG127DN070
12 2A820200 ACTUATOR FUSER A 5MVX731CB002
13 2A820220 HOLDER LAMP B 5MML211RD002
14 2A820260 SPRING PULLEY 5MMW601LD011
15 2A820280 PLATE EARTH FUSER 5MMX665LD004
16 2A820350 SPRING SEPARATOR 5MMW261LD055
17 2A820360 SEPARATOR ASSY 5AAVSEPRT015
17 2A820360 SEPARATOR ASSY 5AAVSEPRT015
17 2A820360 SEPARATOR ASSY 5AAVSEPRT015
18 2A820520 SPRING ACTUATOR 5MMW261LD017
19 2BY20010 ROLLER HEAT 5MMT876AX002
19 2BY20010 ROLLER HEAT 5MMT876AX002
19 2BY20010 ROLLER HEAT 5MMT876AX002
2 2A820023 FRAME FUSER UP 5MVB863KB003
20 2BY20020 THERMOSTAT 250V 160 5EYFFQ16001++01
21 2BY20050 NUT FUSER A 5MMS111SL002
22 2BY20060 HOLDER LAMP A 5MML531CG001
23 2BY20070 BUSH PRESS 5MVX221XN004
24 2BY27570 CONN.CORD ASSY S02775 5AACCNSH4GEA
24 2BY27560 CONN.CORD ASSY S02774 5AACCNSH3GEA
25 2DC20010 SPRING PRESS ROLLER
26 2DC20020 HEATER 230 FIXING
26 2DC20030 HEATER 120 FIXING
27 2DC20040 FRAME FUSER LOW (1/2)
28 2DC20050 THERMISTOR FUSER
29 2DC20060 ROLLER PRESS
29 2DC20060 ROLLER PRESS
3 2A820080 ROLLER EXIT LOW 5MMT774SN001
4 2A820100 PULLEY EXIT 5MVM273DB005
5 2A820110 BUSH EXIT 5MVX211DB016
6 2A820120 BUSH HEAT R 5MVM188XN015
6 2A820120 BUSH HEAT R 5MVM188XN015
7 2A820131 BUSH HEAT L 5MVM188XN016
7 2A820131 BUSH HEAT L 5MVM188XN016
7 2A820131 BUSH HEAT L 5MVM188XN016
8 2A820160 GEAR HEAT Z33 5MVG148XN008
9 2A820170 GEAR EXIT Z23 5MVG137DN031
