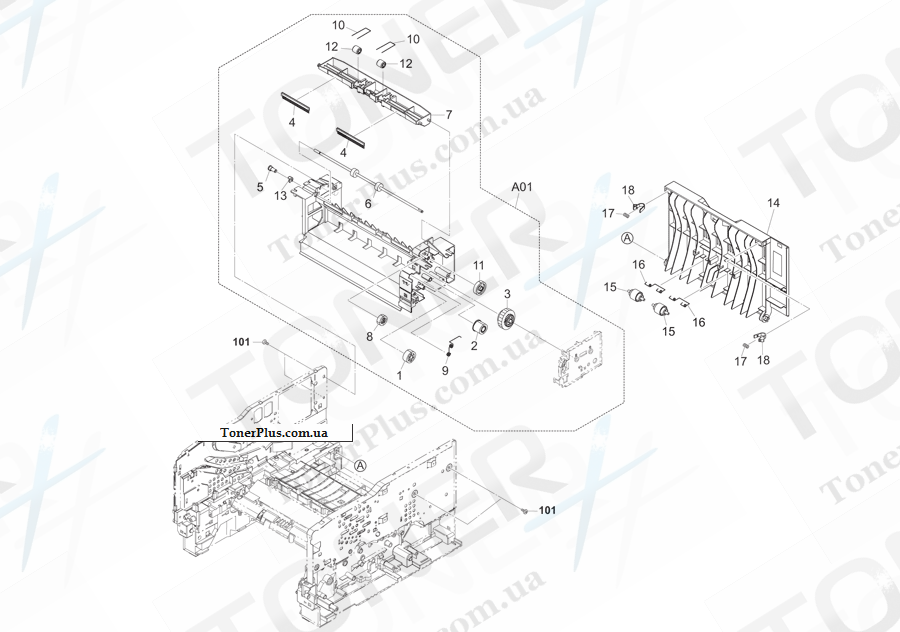

Каталог запчастей для Kyocera-Mita FS1110 - Paper Feed Section 2


Каталог запчастей для Kyocera-Mita FS1110 - Paper Feed Section 2
Номер партии Описание Примечание
1 2BL06380 GEAR Z25 JOINT 2BL06380
10 302HS28141 SPRING PULLEY 2HS28141
11 302HS28170 GEAR FD Z29S 2HS28170
12 5MVM273DB005 PULLEY EXIT /A-49 FUSER A3 2A820100
13 5MVX111DN007 STOPPER 3 /2BT1107 A4 2BT11070
14 302HS94160 COVER REAR ASSY SP 2HS94160
15 302HS28070 PULLEY EXIT 2HS28070
16 302HS28120 SPRING EXIT 2HS28120
17 302HS08320 SPRING COVER MPF 2HS08320
18 302F908200 LOCK COVER 2F908200
2 2FM02350 GEAR Z22 /B-11 FRAME A4 5MVG133DN022
3 302FM94020 GEAR CLUTCH ASSY A SP 2FM94020
4 302H428020 DISCHARGER FD 2H428020
5 302HN29050 BUSH DU 2HN29050
6 302HS28030 ROLLER FD UP 2HS28030
7 302HS28041 COVER FD 2HS28041
8 302HS28060 GEAR Z21S 2HS28060
9 302HS28110 SPRING EARTH 2HS28110
A01 302M194010 PARTS FD ASSY SP 2M194010
