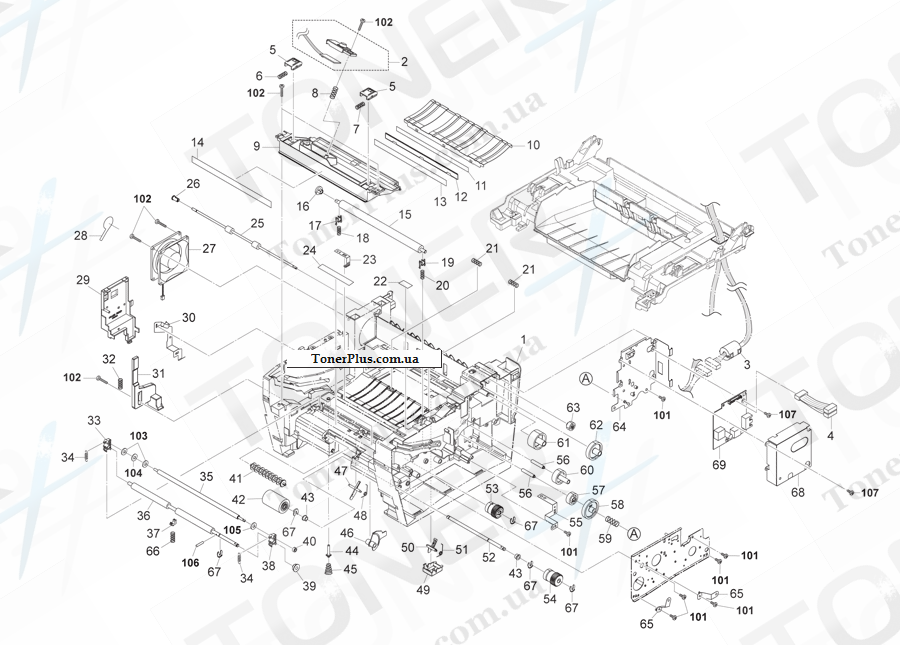

Каталог запчастей для Kyocera-Mita FS1116MFP - Frames 1


Каталог запчастей для Kyocera-Mita FS1116MFP - Frames 1
Номер партии Описание Примечание
1 5MVX888CB001 FRAME BASE 2FV02170
10 5MMU862SL001 PLATE EARTH GUIDE 2FV02250
101 5MBTPB4010WW BIND T.T SCREW(+) / M4 X 10 B8204100
102 B4B74100 +TP T.T SCREW(+) / M4 X 10 CRFREE B-T
103 5MBWK41A03NN POLY-SLIDER WASHER 4.1X10X0.3T C2891100
104 5MBWW43802SP++R WAVE WASHER / M4X8.0X0.2T C3790080
105 5MBWK4165+NN POLY SLIDER / M4.1X6.5X0.25T C2894650
106 5MBP2008WWLD SPRING PIN / M2 X 8 E1120080
107 BAB53060 +TP TAP-TITE S SCREW M3X06
11 5MVS812XF003 TAPE BRUSH 2A816120
12 5MMS821LD014 BRUSH DISCHARGER 2A816080
13 5MVS812KF006 SHEET DISCHARGER 2A816090
14 302G402030 LABEL JAM OPERATION 2G402030
15 5MMT876SN104 ROLLER TRANSFER 2FV02230
16 5MVG127DN131 GEAR TC Z17 2FV02030
17 5MVX221DB023 BUSH TC L 2A816020
18 302G622010 SPRING TC L 2G622010
19 5MVX221DW008 BUSH TC R 2A816030
2 302FV00030 TE SENSOR ASSY 2FV00030
20 302FV02490 SPRING TC R 2FV02490
21 302FV02480 SPRING ROLL 2FV02480
22 302FV14500 LABEL GUIDE DLP 2FV14500
23 5MMX331LD005 PLATE CONTACT TC 2FV02330
24 5MVS721KF007 SHEET REGIST 2FV02390
25 5MMT875SN016 ROLLER FD 2FV02220
26 302FV02470 BUSH FD 2FV02470
27 302FV45010 FAN MOTOR 2FV45010
28 302FV02500 SHEET FAN 2FV02500
29 5MVB763CB001 COVER MC 2FV02010
3 M70CA010 FERRITE CORE,SFT-72SN(TAKEUCHI)
30 5MMX763LD007 PLATE CONTACT MC 2FV02370
31 5MVX763SB011 ROD INTERLOCK 2FV02150
32 5MMW451LD001 SPRING INTERLOCK 2B700570
33 5MVX221DB019 BUSH REGIST LEFT 2A806420
34 5MMW261LD023 SPRING REGIST R 2A806410
35 302A806051 ROLLER REGIST UP 2A806051
36 5MMT876SN105 ROLLER REGIST LOW 2FV02240
37 2FM02180 BUSH REGIST C 5MVX221DN020
38 5MVX221DW006 BUSH REGIST RIGHT 2A806430
39 5MVG127DB047 GEAR REGIST Z20 2A806230
4 302G546010 CONN.CORD ASSY MAIN-FAX(A) 2G546010
40 5MVG126DB025 GEAR REGIST Z13 2A806240
41 5MVM776DB001 PULLEY FEED 2FV02090
42 5AAVR0LL+044 ROLLER FEED ASSY 2A806010
43 5MVM176DN016 BUSH A 2BR20170
44 5MMT365SN003 PIN CONTACT BIAS 2A815020
45 5MMW361LD028 SPRING PIN BIAS 2FV02310
46 5MVX552DB001 ACTUATOR EMPTY 2FV02130
47 5MVX441SB006 ACTUATOR REGIST 2FV02110
48 5MMW261LD066 SPRING ACTUATOR 2FV02260
49 5MVX432SB014 BKT ACTUATOR EXIT 2FV02460
5 5MVX431DN005 LEVER LOCK DLP 2FV02100
50 5MVX442SB011 ACTUATOR EXIT 2FV02120
51 5MMW261LD069 SPRING EXIT 2FV02290
52 5MMT766SN011 SHAFT FEED 2FV02210
53 5AAVCLTCH032 CLUTCH REGIST 2FV02180
54 5AAVCLTCH028 CLUTCH FEED 2BY02020
55 5MMX643LD006 PLATE EARTH B 2FV02360
56 5MMT463SN002 PIN DRIVE 2FV02200
57 5MVG138DN088 GEAR FREE Z28S 2FV02040
58 5MVG158DN059 GEAR FREE Z46H 2FV02060
59 5MMW371LD006 SPRING FREE 2FV02320
6 5MMW261LD067 SPRING LEVER LOCK L 2FV02270
60 5MVG148DN107 GEAR Z34S 2FV02050
61 5MVG158DN060 GEAR FD Z42S 2FV02070
62 5MVG158DN061 GEAR FD Z45S 2FV02080
63 5MVG127DN130 GEAR FD Z19S 2FV02020
64 302G539010 LID CONTROLLER 2G539010
65 5MMX522LD013 PLATE EARTH FEED 2FV02340
66 2FM02580 SPRING REGIST C 5MMW261LD064
67 5MVX111DN003 RING STOPPER 2A806250
68 302G539030 BOX CONTROLLER 2G539030
69 302G570050 P.W.BOARD ASSY FAX CTR(IF35) SP 2G570050
69 302G570020 P.W.BOARD ASSY FAX NA(IF32)SP 2G570020
7 5MMW261LD068 SPRING LEVER LOCK R 2FV02280
8 5MMW261LD036 SPRING TE SENSOR 2A814570
9 5MVX865SB008 GUIDE FEED 2FV02160
