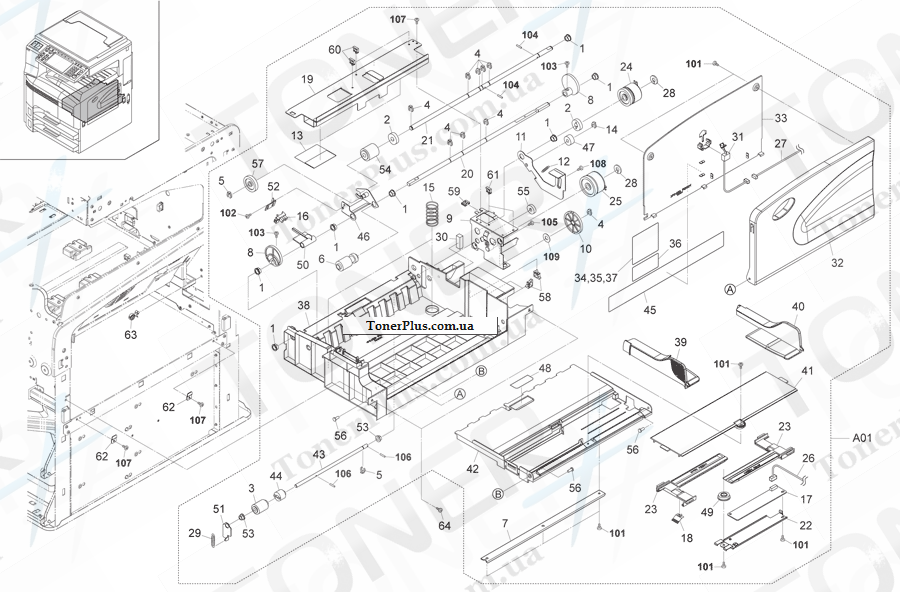

Каталог запчастей для Kyocera-Mita TASKalfa 300i - Paper Feed Section 3


Каталог запчастей для Kyocera-Mita TASKalfa 300i - Paper Feed Section 3
Номер партии Описание Примечание
1 28107310 BUSH 8 49028101
10 2BL06720 GEAR 55/15 2BL06720
101 7BB202308H +TP-FLAT T.T P SCREW 3X8 BB105690
102 7BB000305H +BIND M SCREW 3X5 BB063450
103 7BB600308H +BIND M SCREW 3X8 R BB055190
104 5MBP2014WXSP SPRING PIN / M2 X 14 S-BLK E0020140
105 7BB200306H +BIND T.T P SCREW 3X6 BB105650
106 5MBP2010WXSP SPRING PIN / M2 X 10 S-BLK E0020100
107 7BB100306H +BIND T.T S SCREW 3X6 BB046010
108 7BB202306H +TP-FLAT T.T P SCREW 3X6 BB106940
109 C2895130 SHIM 8.2-0.5T C2895130
11 2BL06850 JOINT RETARD 2BL06850
12 2BL06870 SPRING JOINTRETARD 2BL06870
13 2BL06880 FILM BYPASS 2BL06880
14 2BL06990 STOPPER GEAR 8-25 2BL06990
15 2BL07860 SPRING BYPASS 2BL07860
16 2C927210 SENSOR 248NL1 2C927210
17 2FG01020 SIZE DETECTION ASSY 2FG01020
18 302BC07861 TERMINAL,PAPER SIZE DETECTION 2BC07861
19 302BL06532 COVER BYPASSUNIT 2BL06532
2 29415100 GEAR,TONER ROLLER 45729416
20 302BL06761 SHAFT BYPASSCAM 2BL06761
21 302BL06773 SHAFT BYPASS 2BL06773
22 302GR08060 MOUNT SIZE PWB 2GR08060
23 302GR08071 RACK CURSOR 2GR08071
24 302GR44120 CLUTCH FEED 2GR44120
25 302GR44131 CLUTCH FEED B 2GR44131
26 302GR46230 WIRE BYPASS UNIT 2GR46230
27 302GR46270 WIRE BYPASS TRAY 2GR46270
28 302H008180 CUT WASHER MPF 5 2H008180
29 302H008290 SPRING RETARD 2H008290
3 2AR07230 PULLEY,SEPARATION 2AR07230
3 2AR07230 PULLEY,SEPARATION 2AR07230
30 302H008330 CUSHION MPF 2H008330
31 302H044100 SWITCH BYPASS SIZE 2H044100
32 302K504180 COVER BYPASSTRAY 2K504180
33 302K508010 TABLE BYPASS 2K508010
34 302K534070 LABEL SET PAPER CAUTION A 2K534070
35 302K534080 LABEL SET PAPER CAUTION E 2K534080
36 302K534110 LABEL SET PAPER CAUTION 2K534110
37 302K534160 LABEL SET PAPER CAUTION J 2K534160
38 302KS08061 BASE BYPASS 2KS08061
39 302KS08070 FRONT CURSOR BYPASS 2KS08070
4 2BC06910 STOPPER 6 2BC06910
40 302KS08080 REAR CURSOR BYPASS 2KS08080
41 302KS08090 COVER CURSOR 2KS08090
42 302KS08100 PLATE LIFT BYPASS 2KS08100
43 302KS08180 SHAFT RETARD 2KS08180
44 302KS08190 TORQUE LIMITER 620 2KS08190
45 302KS34040 LABEL BYPASS SIZE 2KS34040
46 303A206131 JOINT,BYPASS PICKUP 3A206131
47 302KY06010 GEAR Z16 PAPER FEED 2KY06010
48 34806490 FRICTION PLATE,BYPASS LEAD NG FEED GEAR GUIDE S DE 34806490
49 302BM07410 GEAR GUIDE S DE 2BM07410
5 2BC06980 STOPPER 5 2BC06980
50 3A206100 ARM,BYPASS PE 3A206100
51 3A206170 HOLDER,RETARD 3A206170
52 3A206210 MOUNT,BYPASS PE SWITCH 3A206210
53 3CY07080 BUSHING 6 3CY07080
54 61706770 UPPER PULLEY,BYPASS 61706770
55 66006810 GEAR,16 BYPASS PULLEY 66006810
56 66007310 P N,CASSETTE WORK PLATE 66007310
57 72321350 GEAR 30, FD EJECT IDLE 72321350
58 7YZM610003++H01 ACCESS SADDLE YZ010250
59 M2104350 EDGING,EDS-0607M(KITAGAWA) M2104350
6 2BJ06010 PULLEY FEED A 2BJ06010
60 M2105210 M NI CLAMP,UAMS-02WL-0(KITAGAWA) M2105210
61 M2105740 M NIATURE CLAMP,UAMS-05S-2 M2105740
62 2BL06890 PLATE BYPASS HOLD 2BL06890
63 5MVX431NN001 SPACING CLIP /VSC-10 XX 3D302100
64 2FB20860 P N FUSER COVER 2FB20860
7 2BL06650 STAY LIFTPLATE 2BL06650
8 2BL06680 CAM BYPASS 2BL06680
9 302BL06691 MOUNT BYPASSDRIVE 2BL06691
A01 302K594094 PARTS MPF UNIT SP 2K594094
