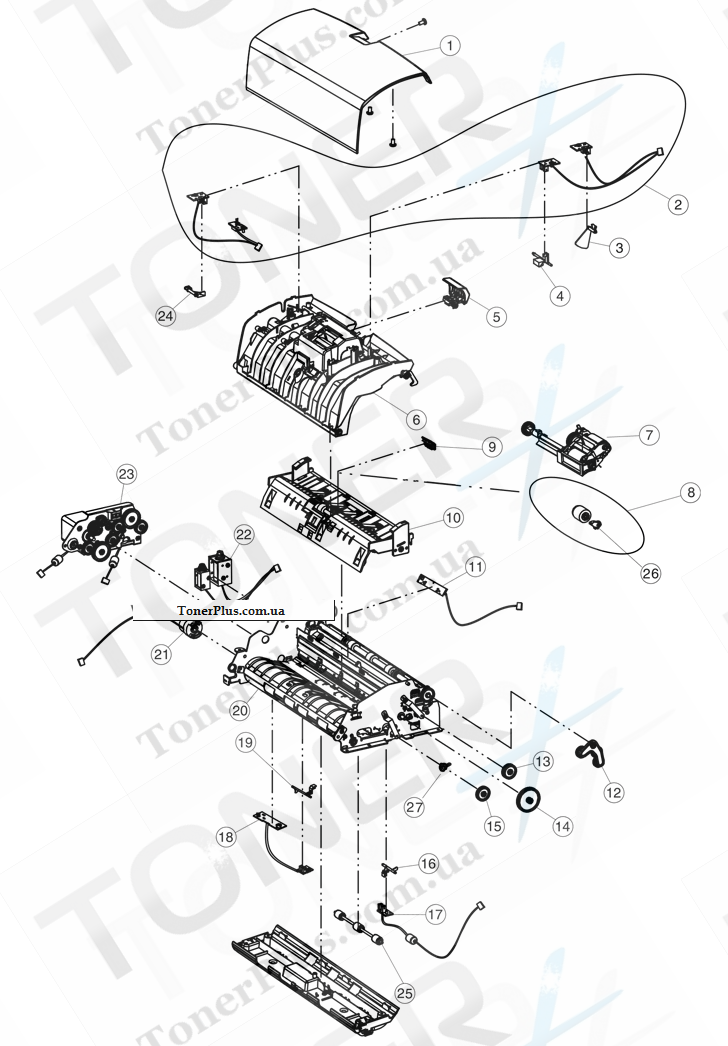

Каталог запчастей для Lexmark X925 - ADF 2

Каталог запчастей для Lexmark X925 - ADF 2
№ Номер партии Описание Примечание
1 40X6331 Outer ADF top cover
10 40X6349 ADF media paperpath guide
11 40X6976 Duplex timing sensor
12 40X6532 Gear w/spring holder
13 40X6538 Spur G28T gear
14 40X6537 Spur G63-27T gear
15 40X6536 Spur G36T gear
16 40X6974 Duplex out sensor actuator
17 40X6975 Duplex out sensor
18 40X6534 Scan sensor w/ paper in sensor
19 40X6535 Scan sensor actuator
2 40X6531 ADF paperpath sensors
20 40X6348 ADF main feeder
21 40X6335 ADF drive clutch
22 40X6434 ADF solenoid
23 40X6330 ADF motor frame w/motors
24 40X6541 Cover open sensor actuator
25 40X6533 Idle roller w/shaft
26 40X6547 Separator roll lock
27 40X6336 Roller Bearing
3 40X6540 Paper present sensor actuator
4 40X6539 Paper in sensor actuator
5 40X6340 Top cover release handle
6 40X6332 Inner ADF top cover
7 40X6327 ADF pick roll assembly
8 40X6328 ADF separator roll
9 40X6953 Mylar ADF pad
NS 40X6341 Top cover release hook
NS 40X5867 ADF screws and fasteners parts pack
