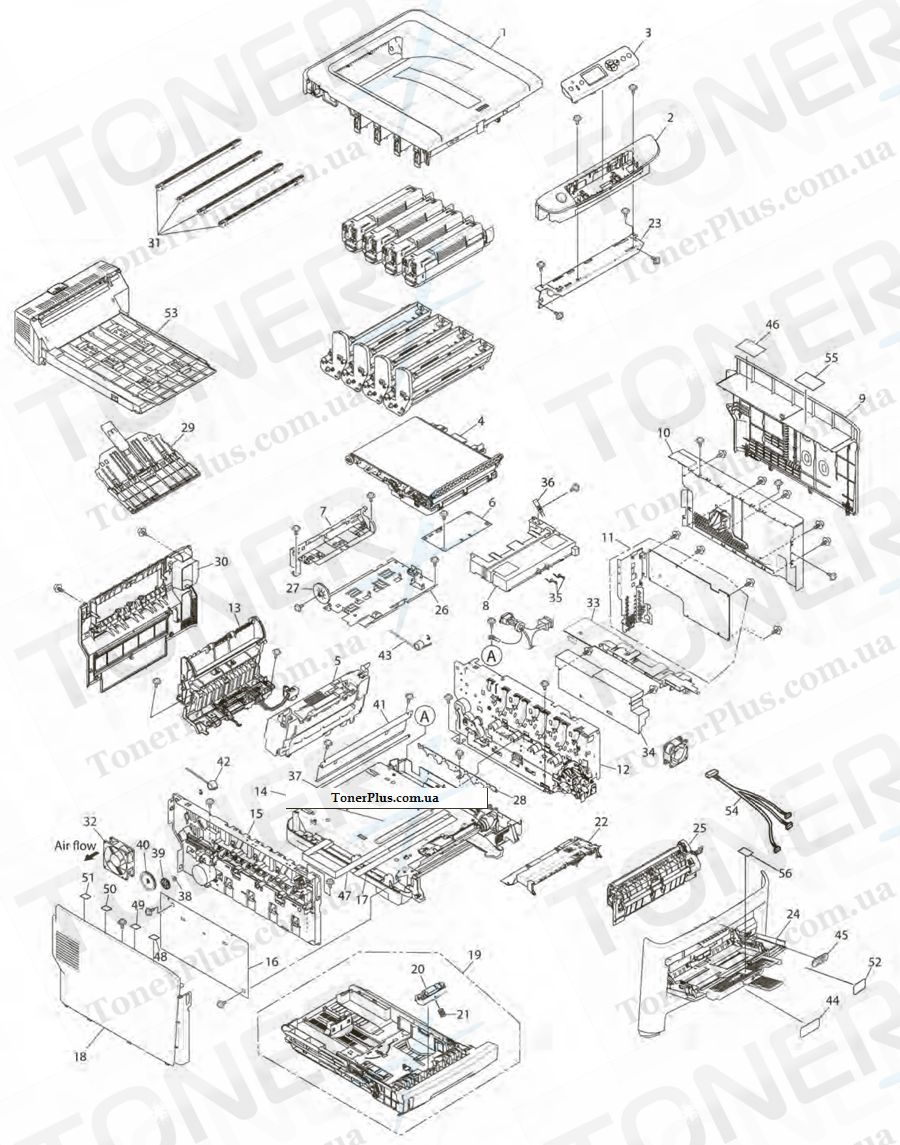

Каталог запчастей для OKI C711DW - Printer

№	Номер партии	Описание	Примечание

1	44260701	Cover Assy.-Top
10	43738101	Plate-Shield-A
11	55122701	IBD-3 maintenance board	AXXIS HS Board PU/CU (ODA)
12		Plate Assy.-Side R
13	44263301	Eject-Assy.-757
14		Plate Assy.-Base
15		Plate Assy.-Side L(PX755/7)
16	43770701	PWR unit-DCDC	High Voltage
17	43393801	CONN-High Voltage(Bend)
18		Cover-Side(L)
19	43894903	Cassette Assy.-PX755
2	44260101	Frame Assy.-OP
20	43895001	Frame-Assy-Retard
21	43963101	Spring-Retard
22	44259901	Cover Assy.-Hopping-PX755
23		Plate-Front
24		Cover Assy.-Front-PX755
25	44261901	Feeder-Assy.-Regist
26		Plate-Driver(PU)(Caulking)
27	43076101	Gear-Idle-Belt-Z20Z93
28		Plate-Lockout-ID
28		Plate-Lockout-ID
29	43078704	Cover Assy.-FaceUP
3	44260901	Cover Assy.-OP
30	43917704	Cover-Sub Assy.-Rear
31	44317204	LED Head Unit-	600dpi(20pin)
32	43289101	OR-Motor-FAN(80)	FUSER
33	43746401	Guide-Cable-(Pow-low)
34	44305201	PWR unit-ACDC Switch	(230V)
34	44201901	PWR unit-ACDC Switch	(120V)
35		Spring-BeltFuse
36		Thermistor-Belt
37		Shaft-Liftup-PX734
38	42060701	Bush
39	43075201	Gear-LiftupL-Z32
4		PX755 Belt Unit
40	43075501	Gear-LiftUpLinkL-Z56
41		Plate-Heat
42	44313001	Spring-Torsion(L)
43	44313101	Spring-Torsion(R)
44		Plate-name C610	C610
45		Plate-Logo
46		Label-FuserJAM
47	43348901	CONN-Cord-FlexyDP(Bend)	PU-PRY
48		Label-Color K
49		Label-Color Y
5		PX755 Fuser-Unit	(230V)
5		PX755 Fuser-Unit	(120V)
50		Label-Color M
51		Label-Color C
52		Label-ES/HD/CZ
53		Unit-Duplex-PX755(Spare)
54	44256301	CONN Cord-AMP9P- AMP4PAMP2PAMP2P	HOPMOT/FDCL/MPTCL-PU
55		Label-Consumable PX755
6	43131301	OR-PRY	Board-PRY
7	43917501	Sensor Assy.-Color-Regist
8	42066901	Cover-Driver
9		Cover Assy.-Side R-755
