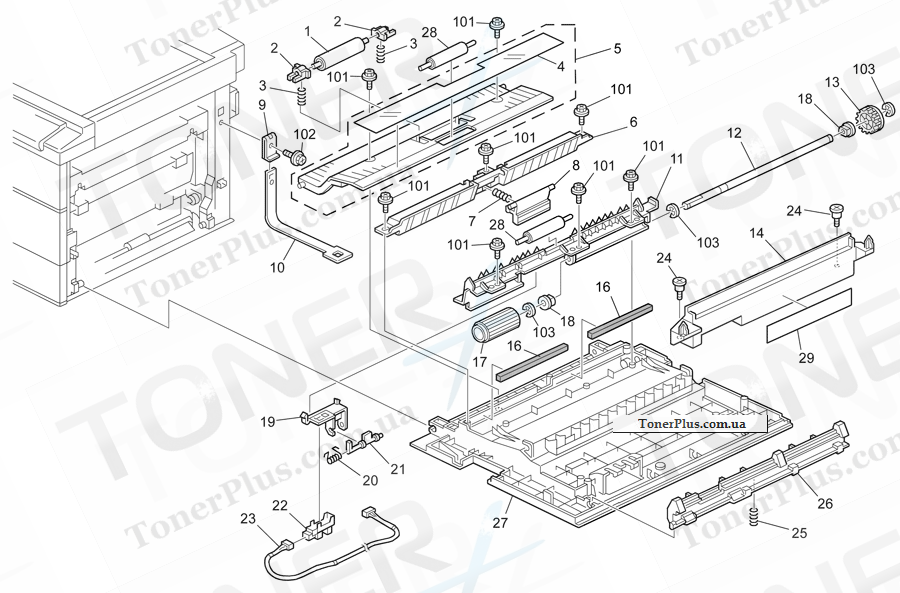

Каталог запчастей для Ricoh Aficio MP1610L - VERTICAL TRANSPORT (B282/B283)

№	Номер партии	Описание	Примечание
1	AF02 2138	Vertical Transport Roller
10	B039 2660	Band - Right Door (B283)
101	0450 3008N	Tapping Screw - M3x8
102	0451 3006N	Tapping Screw - 3x6
103	0720 0040E	Retaining Ring - M4
11	B039 2594	Upper Guide Plate - By-pass Feed (B283)
12	B259 2594	Shaft - Feed (B283)
13	AB01 2313	Gear - 25Z (B283)
14	B121 4470	Right Lower Exit Guide Plate (B283)
16	B039 2658	Sponge - By-pass Feed (B283)
17	AF03 1060	By-pass Feed Roller
18	AA08 2101	Bushing - 6x10x6
19	B039 2610	Bracket - Paper End Sensor
2	AA08 0268	Bushing - Vertical Transport
20	AA06 6343	Spring - Paper End Sensor
21	B039 2611	Feeler - Paper End Sensor
22	GW02 0020	Photointerruptor:Lg248nl1
23	B121 5259	Harness - Paper End Sensor (B283)
24	B039 4480	Stepped Screw - M5
25	A250 1388	Spring
26	B039 2651	Right Door Lever (B283)
27	B039 2670	Right Door (B283)
28	B039 2558	Driven Roller
29	B039 4488	Jam Removal Decal (B283)
3	AA06 3399	Spring - Vertical Transport
4	B039 2655	Vertical Transport Guide
5	B039 2653	Vertical Transport Guide (B283)
6	B039 2592	Lower Guide Plate - By-pass Feed (B283)
7	AA06 3398	Spring - Friction Pad (B283)
8	B261 4650	Separation Pad (B282)
8	B039 2596	Friction Pad (B283)
9	A232 3962	Spring Plate - Band Stopper (B283)
