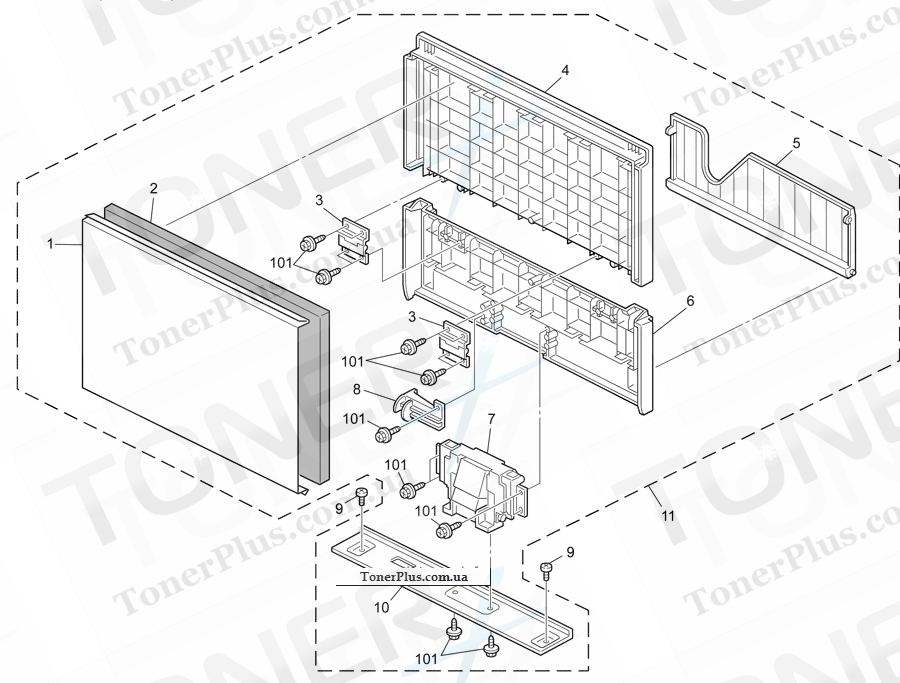

Каталог запчастей для Ricoh Aficio MP1801 - Platen Cover (B24561)


Каталог запчастей для Ricoh Aficio MP1801 - Platen Cover (B24561)
Номер партии Описание Примечание
1 54 482 804 Platen Cover Sheet
10 B484 1383 Bracket - Platen Cover
101 0450 4012N Tapping Screw:4x12
11 B406 1232 Pressure Plate Assy
2 B406 1393 Platen Cover Pad
3 G329 1350 Flex Hinge - Platen Cover
4 B406 1387 Front Platen Cover
5 B406 1397 Original Holder
6 B406 1392 Rear Platen Cover
7 G329 1355 Hinge:Pressure Plate:Assy
8 B406 1384 Feeler - Platen Cover
9 A548 6121 Screw - M4
