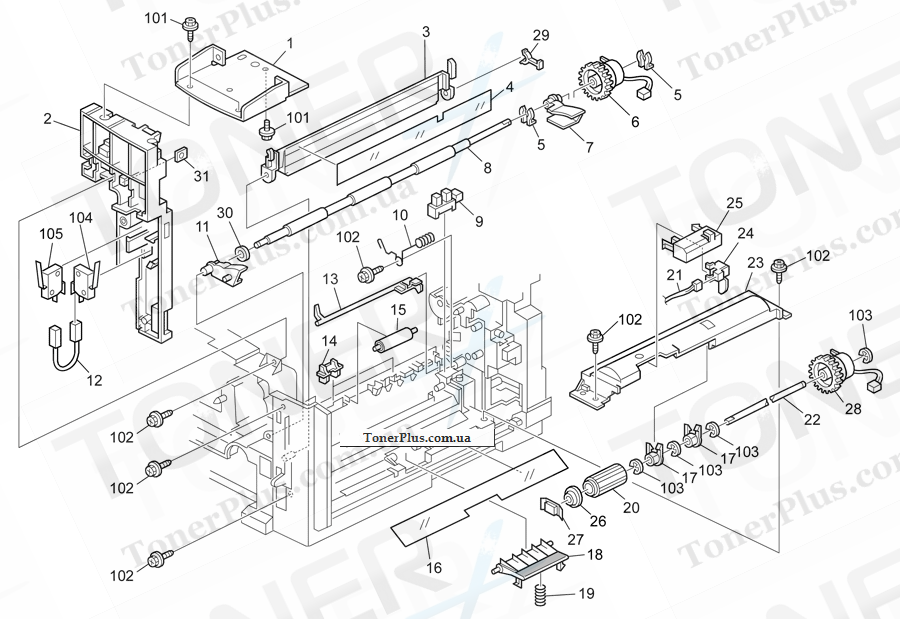

Каталог запчастей для Ricoh Aficio MP201SPF - Paper Registration

№	Номер партии	Описание	Примечание
1	B262 1064	Scanner Bracket - Front Right
10	B044 1102	Registration Electrode Plate
101	0451 3006N	Tapping Screw - 3x6
102	0450 3006N	Tapping Screw - M3x6
103	0720 0040E	Retaining Ring - M4
104	1204 2521	Micro Switch
105	1204 2529	Switch - V-5F912DN
11	B044 2604	Front Bushing
12	D067 5211	Harness:Switch:Front Right
13	B044 2603	Registration Feeler
14	B044 2616	Support Bushing
15	B044 2602	Turn Roller
16	B044 2814	Exit Guide
17	AA08 0322	Bushing - 6mm
18	B044 2815	Friction Pad - Manual Feed
19	B044 2817	Friction Pad Spring
2	B044 1063	Scanner Stud
20	AF03 1086	By-pass Feed Roller
21	D067 5218	Harness:Paper End Sensor
22	B044 2829	Manual Feed Shaft
23	B044 2811	Guide Plate - Manual Feed
24	G020 2772	By-pass Paper End Sensor
25	B044 2812	Manual Feed Bracket
26	B044 2825	Spacer-manual Feed Roller
27	B044 2824	Cushion-manual Feed Roller
28	AX20 0310	Magnetic Clutch:0.25N.m:Z43
29	B044 2656	Guide Plate Stopper
3	B044 2653	Guide Plate - Paper Feed
30	B044 2622	Spacer - Registration
31	B044 4200	Fusing Plate Nut
4	B044 2654	Paper Feedguide
5	H521 3355	C Ring - Paper Feed Roller
6	AX20 0308	Magnetic Clutch:0.25N.m:Z43
7	B044 2605	Rear Bushing
8	AF02 0686	Registration Roller
9	GW02 0020	Photointerruptor:LG248NL1
