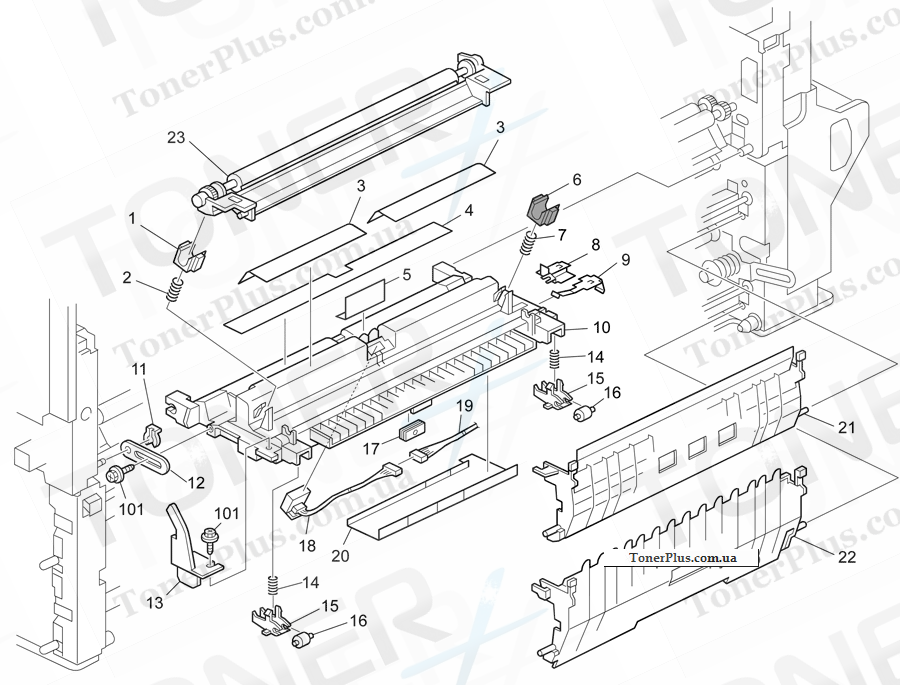

Каталог запчастей для Ricoh Aficio MP2550B - Transfer Unit (D017/D018/D019/D020)


Каталог запчастей для Ricoh Aficio MP2550B - Transfer Unit (D017/D018/D019/D020)
Номер партии Описание Примечание
1 AA08 0256 Front Bushing - Transfer Roller
10 D019 3855 Cover:Transfer/Separation Unit:C5
101 0450 3008N Tapping Screw - M3x8
11 54 472 681 Snap Ring
12 D019 3941 Band - Vertical Transport Cover
13 D019 3931 Lever:Shutter
14 D019 3859 Compression Spring
15 D019 3866 Pressure Over - Transfer Unit
16 D019 3867 Roller - Transfer Unit
17 AG07 0514 Magnet Catch
18 D019 3901 ID Sensor
19 D019 5236 Interface Harness - Density Sensor
2 B091 3911 Compression Spring:Pressure:Front
20 D019 3908 Cover - Density Sensor Harness
21 D019 2656 Guide Plate - Upper
22 D019 2775 Guide Plate - Lower
23 B209 2870 Spring Plate:Paper Size Sensor:Assy
23 B209 3831 Separation Unit:Assy
3 AA15 0708 Front Discharge Sheet
4 A267 2712 Cleaner - Regist Driven Roller
5 A267 3905 Cover - ID Sensor
6 AA08 0250 Rear Bushing - Transfer Roller
7 B091 3912 Compression Spring:Pressure:Rear
8 A267 3861 Terminal - Transfer Roller
9 A267 3862 Terminal - Separation
