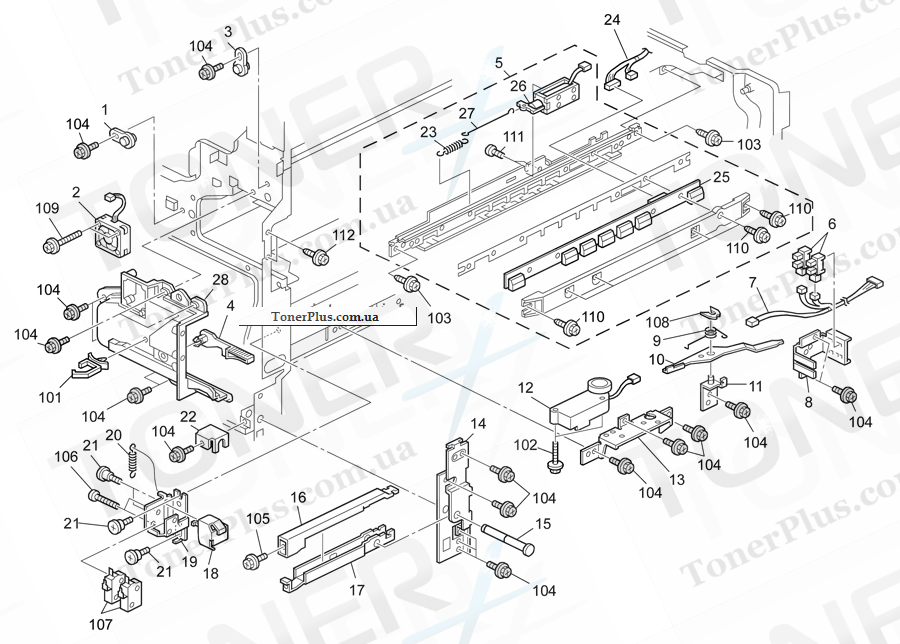

Каталог запчастей для Ricoh Aficio MPC3000 - Paper Registration 2


Каталог запчастей для Ricoh Aficio MPC3000 - Paper Registration 2
Номер партии Описание Примечание
1 B238 1118 Lever - Front Left
10 B223 1225 Shutter Link
101 11 050 516 Clamp
102 0451 3025N Tapping Screw:M3x25
103 0451 3006N Tapping Screw - 3x6
104 0454 3006Q Tapping Screw - M3x6
105 0451 4006N Tapping Screw - 4x6
106 0353 0250N Screw:M3x25
107 12 042 709 Switch - V-5F930DN
108 8 050 088 Retaining Ring - M6
109 0450 3025N Tapping Screw:3x25
11 B223 1221 Sensor Link Bracket
110 0451 3008N Tapping Screw - M3x8
111 0312 5040N Screw - M2.5X4
112 0450 3010N Tapping Screw - M3x10
12 B223 1213 DC Motor:Shutter:Assy
13 B223 1212 DC Motor Bracket
14 B238 1100 Grip Bracket - Right Front
15 B238 1106 Grip Shaft - Right Front
16 B238 1105 Grip Cover - Right Front
17 B238 1104 Grip - Right Front
18 B223 5814 Bracket - Safety Switch Lever
19 B223 5813 Safety Switch Bracket
2 GX64 0029 Fan:Mm40x15:Nidec:L
20 AA06 3568 Pressure Spring
21 B223 1317 Screw
22 B238 1107 Grip Plate - Right Front
23 AA06 0151 Tension Spring
24 B238 5306 Harness - TM/P Sensor
25 B223 6395 Density Sensor
26 B238 5875 DC Solenoid DC24V
27 B238 5867 Hook:Solenoid:Sensor:TM
28 B238 1054 Guide Plate:Machine Or Copier:Fusin
3 B238 1119 Lever - Front Upper
4 G052 4696 Right Fusing Lock Lever
5 B223 5876 Density Sensor:Assy
6 GW02 0020 Photointerruptor:Lg248nl1
7 B238 5310 Harness - IOB Image Unit Shutter
8 B223 1227 Sensor Shutter Bracket
9 B223 1224 Torsion Spring
