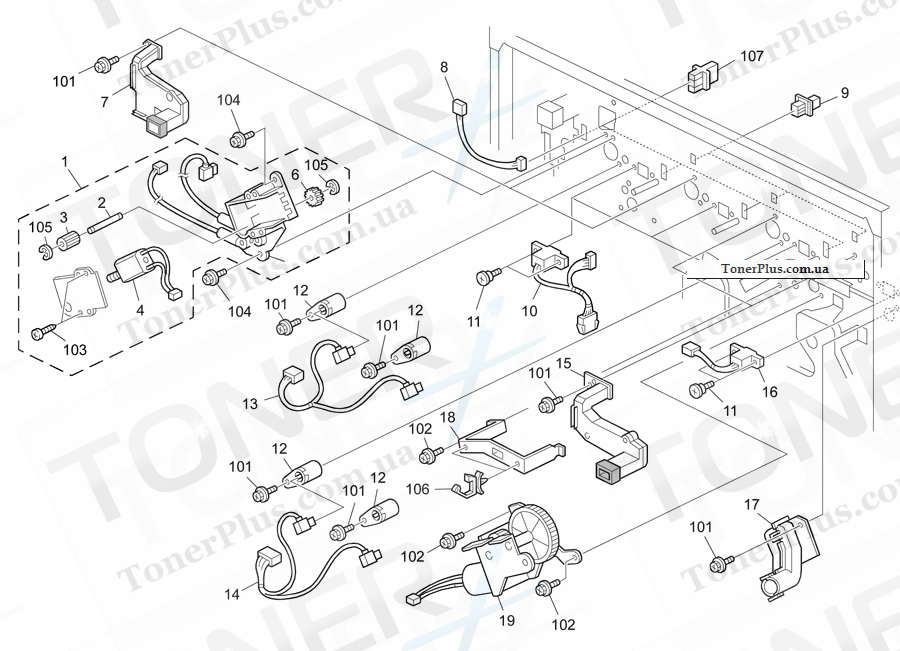

Каталог запчастей для Ricoh Aficio MPC7500SP - Drive Section 2


Каталог запчастей для Ricoh Aficio MPC7500SP - Drive Section 2
Номер партии Описание Примечание
1 D014 3553 Cleaning Draive Unit:Charge
10 D014 5271 Harness:PCU:Drawer:MCY
11 B259 1131 Screw:PCU
12 D014 3261 Receptacle:Development Unit
13 D014 5340 Harness:Development:BM
14 D014 5342 Harness:Development:CY
15 D014 3630 Duct:Joint:PCU:Color
16 D014 5270 Harness:PCU:Drawer:Black
17 D014 3601 Duct:Connecting:Fusing Unit
18 B132 1339 Bracket:On-Off:Plate
19 B132 1338 DC Motor:On-Off:Assy
2 D014 3558 Shaft:Drive:Cleaner:Charge Corona
3 D014 3559 Gear:20Z
4 AX04 0167 Motor:DC5V 0.71W
5 D014 3554 Housing:Charge Corona
6 D014 2419 Gear:11Z
7 D014 3670 Duct:Joint:PCU:M&K:Assy
8 D014 5272 Harness:T:Sensor:Drawer
9 D014 3550 Connector:1Pole
