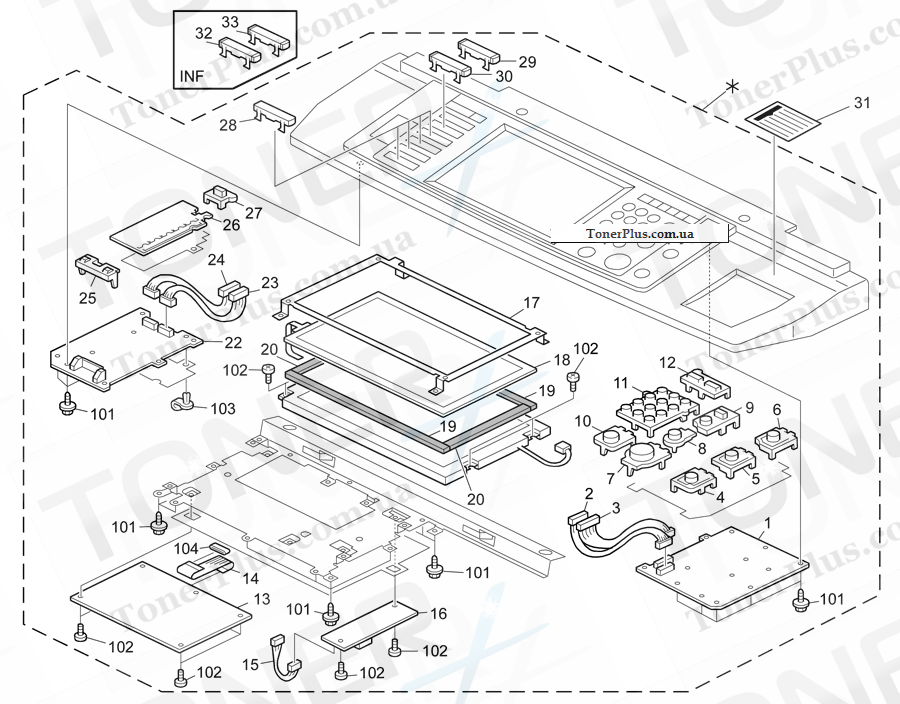

Каталог запчастей для Ricoh Aficio MPC7500SP - Operation Panel


Каталог запчастей для Ricoh Aficio MPC7500SP - Operation Panel
Номер партии Описание Примечание
* D014 7201 Operation Panel - NA
* D014 7202 Operation Panel - EU
1 D009 1470 PCB:OP-R
10 B223 1520 Keytop - Clear/Stop
11 B223 1521 Keytop:10key
11 B223 1540 Keytop:10key:NA
12 B238 1583 Keytop - Clear Modes
13 D014 5191 LCDC Board - NA
13 D014 5192 LCDC Board - EU
14 D009 1487 Cable:FFC:TFT:LCD
15 D009 1484 Harness:Invertor
16 D009 1486 Invertor:TFT
17 D009 1504 Shadeing Plate:Touch Panel
18 D009 1488 Touch Panel:W-VGA:MA
19 B238 1535 LCD Spacer B
2 D009 1482 Harness:OP-L:12
20 B238 1534 LCD Spacer A
21 D009 1489 LCD:TFT:W -VGA:SH
22 B223 1475 PCB OP-L
23 D009 1481 Harness:OP-R:13
24 D009 1480 Harness:OP-R:10
25 D014 7223 Lens:Front
26 B238 1547 Spacer - Keytop
27 B238 1511 Keytop - Counter
28 B223 1518 Keytop - Blank FB
29 B223 1535 Keytop:Doc:EU
29 B223 1529 Keytop - Doc NA
3 D009 1483 Harness:OP-L:13
30 B223 1528 Keytop - Copy NA
30 B223 1534 Keytop:Copy:EU
31 B132 1562 Decal - Inkjet:Paper
32 B223 1538 Keytop:Scanner:EU
33 B223 1537 Keytop:Printer:EU
4 B238 1552 Keytop - Kantan
5 B238 1550 Keytop - Login
6 B238 1549 Keytop - Power Source
7 B238 1504 Keytop - Start
8 B238 1506 Keytop - Try Print
9 B238 1509 Keytop - Interrupt
