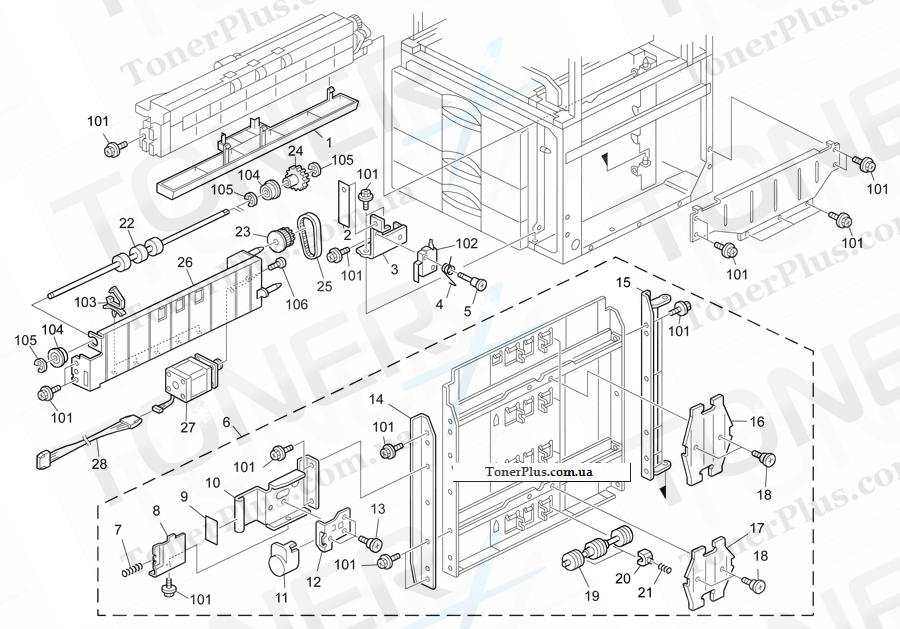

Каталог запчастей для Ricoh Aficio MPC7500SP - Vertical Transport


Каталог запчастей для Ricoh Aficio MPC7500SP - Vertical Transport
Номер партии Описание Примечание
1 B132 6758 Guide:Relay:Paper Feed Unit
10 B247 6426 Lever:Release:Vertical Transport
11 B065 6428 Release Button - Vertical Transport
12 B065 6427 Release Lever - Vertical Transport
13 AA14 3560 Stepped Screw - M4
14 B132 6753 Side Plate:Front:Vertical Transport
15 B132 6754 Side Plate:Rear:Vertical Transport
16 B132 6752 Pressure Plate:Transport Roller:Driven:No.1
17 B065 6407 Transport Pressure Plate
18 B247 6982 Stepped Screw - M5
19 AF02 0295 Vertical Driven Roller
2 B132 5999 Sheet:Micro Switch:12mm
20 AA08 0241 Bushing - M4
21 AA06 3878 Spring
22 AF02 0562 Transport Roller
23 AB01 7619 Gear - 24Z/40Z
24 AB01 1466 Gear - 35Z
25 AA04 3575 Timing Belt
26 B140 6472 Joint Unit Guide Plate Assy
27 B132 6655 Stepper Motor:Paper Feed Unit:Assy
28 B132 7583 Harness - Joint Unit
3 B132 5971 Bracket:Micro Switch:Paper Bank
4 B132 5869 Torsion Spring
5 B132 5868 Screw:Micro Switch
6 B132 6771 Transport Unit:Vertical Transport:Assy
7 AA06 3487 Spring - 10mm
8 B247 6430 Cover:Release:Vertical Transport
9 A029 2984 Decal - Grip
