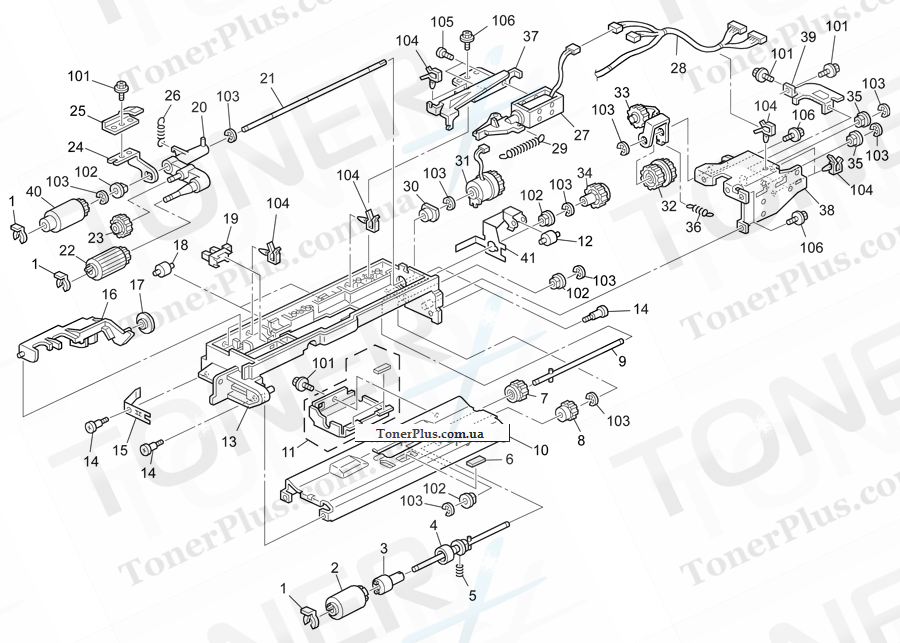

Каталог запчастей для Ricoh Aficio SP8100DN - BY-PASS FEED SECTION 2

№	Номер партии	Описание	Примечание
1	5447 2681	Snap Ring
10	B082 6028	Guide Plate:Separator:Assy
101	0451 3008N	Tapping Screw - M3x8
102	0805 3480	Bushing - 6mm
103	0720 0040E	Retaining Ring - M4
104	1105 0267	Harness Clamp - YMC-10-0
105	0353 0040N	Screw - M3X4
106	0450 3008N	Tapping Screw - M3x8
11	B082 6038	Cover:Gear:Adhesion
12	AF04 0575	Driven Roller
13	B077 6022	Housing:Manual Feed
14	5216 4198	Stepped Screw - Guide Plate
15	A232 6023	Grounding Plate - Reverse
16	A232 6055	Paper End Feeler
17	A134 2661	Feeler Roller
18	AF04 0031	Driven Roller
19	AW02 0145	Photointerruptor:Flat
2	AF03 2046	Separation Roller - Manual Feed
20	A232 6043	Arm Paper Pick Up
21	AA14 0753	Feed Shaft
22	AF03 0049	Pick-up Roller
23	AB01 1387	Gear - 23Z
24	B077 6044	Guide Plate:Feed
25	A232 6046	Grounding Plate - Feed
26	AA06 3568	Pressure Spring
27	B213 6051	DC Solenoid:Pickup:Sub-assy
28	B082 5427	Harness:Manual Feed Unit
29	AA06 3567	Tension Spring
3	B004 2783	Torque Limiter
30	AA08 3018	Roller Clutch - 6x14x10
31	AX20 0292	Magnetic Clutch:245mn.m
32	AB01 7454	Gear - 24Z/30Z
33	B213 6059	Arm:Tightener:Assy
34	AB01 1390	Gear - 27Z
35	GA08 0002	Bushing - 6mm
36	AA06 3569	Spring
37	B213 6049	Bracket:DC Solenoid
38	B082 6061	Bracket:Drive:Assy
39	B077 6065	Rail:Holder
4	B213 6033	Shaft:Separator:Driven
40	AF03 1046	Feed Roller - Manual Feed
41	B004 6062	Pressure Plate - By-pass Feed
5	AA06 3499	Pressure Spring
6	AF01 3016	Bottom Plate Pad
7	AB01 1389	Gear - 20Z
8	AB01 1388	Gear - Z16
9	A232 6035	Shaft - Drive Roller
