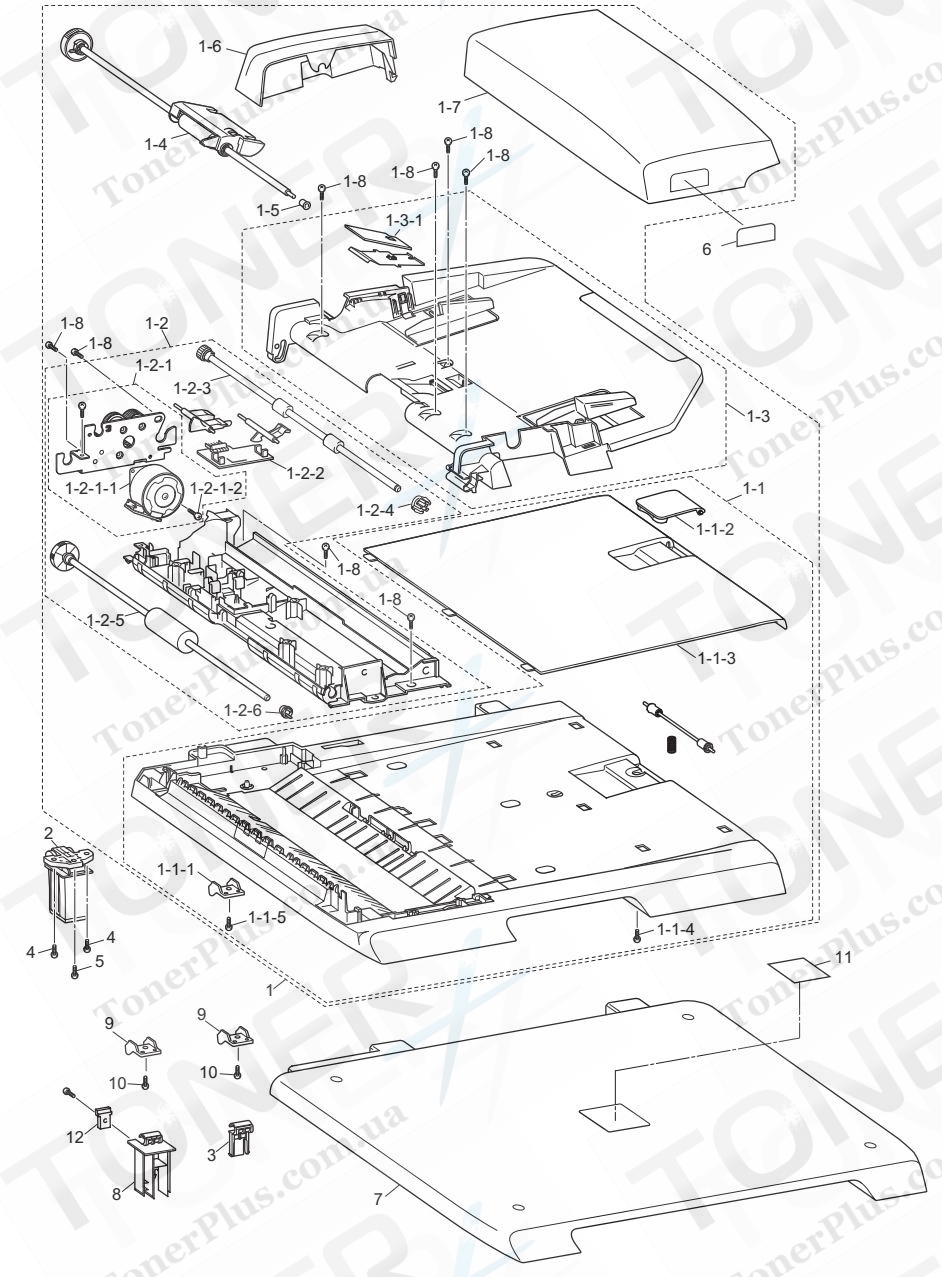

Группа запчастей для Brother DCP7030 - ADF


Группа запчастей для Brother DCP7030 - ADF
Номер партии Описание Примечание
1 LS1219001 ADF UNIT ASSY (SP), DCP7040/DCP7045N/MFC7440N/MFC7450
1 LS1219003 ADF UNIT ASSY (SP), MFC7320/MFC7340/MFC7345N
1 LS1219002 ADF UNIT ASSY (SP), MFC7840N/MFC7840W
1-1 LS0360001 DOCUMENT COVER SUB ASSY, GRAY(1581), DCP7040/DCP7045N/MFC7440N/MFC7450
1-1 LS0360003 DOCUMENT COVER SUB ASSY, GRAY(1581), MFC7320/MFC7340/MFC7345N
1-1 LS0360002 DOCUMENT COVER SUB ASSY, GRAY(1736), MFC7840N/MFC7840W
1-1-1 LF6165001 HINGE ARM EXCEPT FOR DCP7030/DCP7032
1-1-2 LS0363002 DOCUMENT STOPPER, GRAY(1581), MFC7840N/MFC7840W
1-1-2 LS0363001 DOCUMENT STOPPER, GRAY(1736), DCP7040/DCP7045N/MFC7440N/MFC7450
1-1-2 LS0363003 DOCUMENT STOPPER, GRAY(1861), MFC7320/MFC7340/MFC7345N
1-1-3 LS0364002 DOCUMENT DRESS COVER, GRAY(1581), MFC7840N/MFC7840W
1-1-3 LS0364001 DOCUMENT DRESS COVER, GRAY(1736), DCP7040/DCP7045N/MFC7440N/MFC7450
1-1-3 LS0364003 DOCUMENT DRESS COVER, GRAY(1861), MFC7320/MFC7340/MFC7345N
1-1-4 087310816 TAPTITE CUP B M3X8 EXCEPT FOR DCP7030/DCP7032
1-1-5 085411216 TAPTITE BIND B M4X12 EXCEPT FOR DCP7030/DCP7032
1-2 LS0365001 LOWER DOCUMENT CHUTE ASSY EXCEPT FOR DCP7030/DCP7032
1-2-1 LS0536001 DRIVE FRAME ASSY EXCEPT FOR DCP7030/DCP7032
1-2-1-1 LF9081001 ADF MOTOR EXCEPT FOR DCP7030/DCP7032
1-2-1-2 085320616 TAPTITE BIND S M3X6 EXCEPT FOR DCP7030/DCP7032
1-2-2 LG7146001 ADF SEN PCB ASSY EXCEPT FOR DCP7030/DCP7032
1-2-3 LF6577001 EJECTION ROLLER ASSY EXCEPT FOR DCP7030/DCP7032
1-2-4 LF4230001 EJECTION ROLLER BUSHING EXCEPT FOR DCP7030/DCP7032
1-2-5 LF6579001 LF ROLLER ASSY EXCEPT FOR DCP7030/DCP7032
1-2-6 UF0026001 LF ROLLER BUSHING EXCEPT FOR DCP7030/DCP7032
1-3 LS0366001 UPPER DOCUMENT CHUTE ASSY, GRAY(1581), DCP7040/DCP7045N/ MFC7320/MFC7340/MFC7345N/MFC7440N/MFC7450
1-3 LS0366002 UPPER DOCUMENT CHUTE ASSY, GRAY(1736), MFC7840N/MFC7840W
1-3-1 LS0978001 SEPARATION RUBBER ASSY EXCEPT FOR DCP7030/DCP7032
1-4 LP2601001 SEPARATE ROLLER SHAFT ASSY EXCEPT FOR DCP7030/DCP7032
1-5 UF9949001 SEPARATE ROLLER BUSHING EXCEPT FOR DCP7030/DCP7032
1-6 LS0371001 GEAR COVER, GRAY(1581), DCP7040/DCP7045N/ MFC7320/MFC7340/MFC7345N/MFC7440N/MFC7450
1-6 LS0371002 GEAR COVER, GRAY(1736), MFC7840N/MFC7840W
1-7 LS0372002 ADF COVER ASSY, GRAY(1736), MFC7840N/MFC7840W
1-7 LS0372001 ADF COVER ASSY, GRAY(1581), DCP7040/DCP7045N/MFC7320/ MFC7340/MFC7345N/MFC7440N/MFC7450
1-8 087311016 TAPTITE CUP B M3X10 EXCEPT FOR DCP7030/DCP7032
10 085411216 TAPTITE BIND B M4X12, DCP7030/DCP7032
11 LS0721002 DCP EMBLEM, DCP7032
11 LS0721001 DCP EMBLEM, DCP7030
12 LS1690001 HINGE L SUPPORT, DCP7030/DCP7032
2 LS0939001 HINGE ASSY L EXCEPT FOR DCP7030/DCP7032
3 LS1952001 HINGE R CHG
4 087311016 TAPTITE CUP B M3X10 EXCEPT FOR DCP7030/DCP7032
5 087321217 TAPTITE CUP S M3X12 EXCEPT FOR DCP7030/DCP7032
6 LS0870001 EMBLEM, DCP7040
6 LS0869001 EMBLEM, MFC7345N/MFC7440N
6 LS0871001 EMBLEM, DCP7045N
6 LS0869002 EMBLEM, MFC7840N
6 LS0503001 EMBLEM, MFC7320/MFC7340/MFC7450
6 LS0868001 EMBLEM, MFC7840W
7 LS1938001 DOCUMENT COVER (SP), DCP7030/DCP7032
8 LS0401001 HINGE L, DCP7030/DCP7032
9 LF6165001 HINGE ARM, DCP7030/DCP7032
