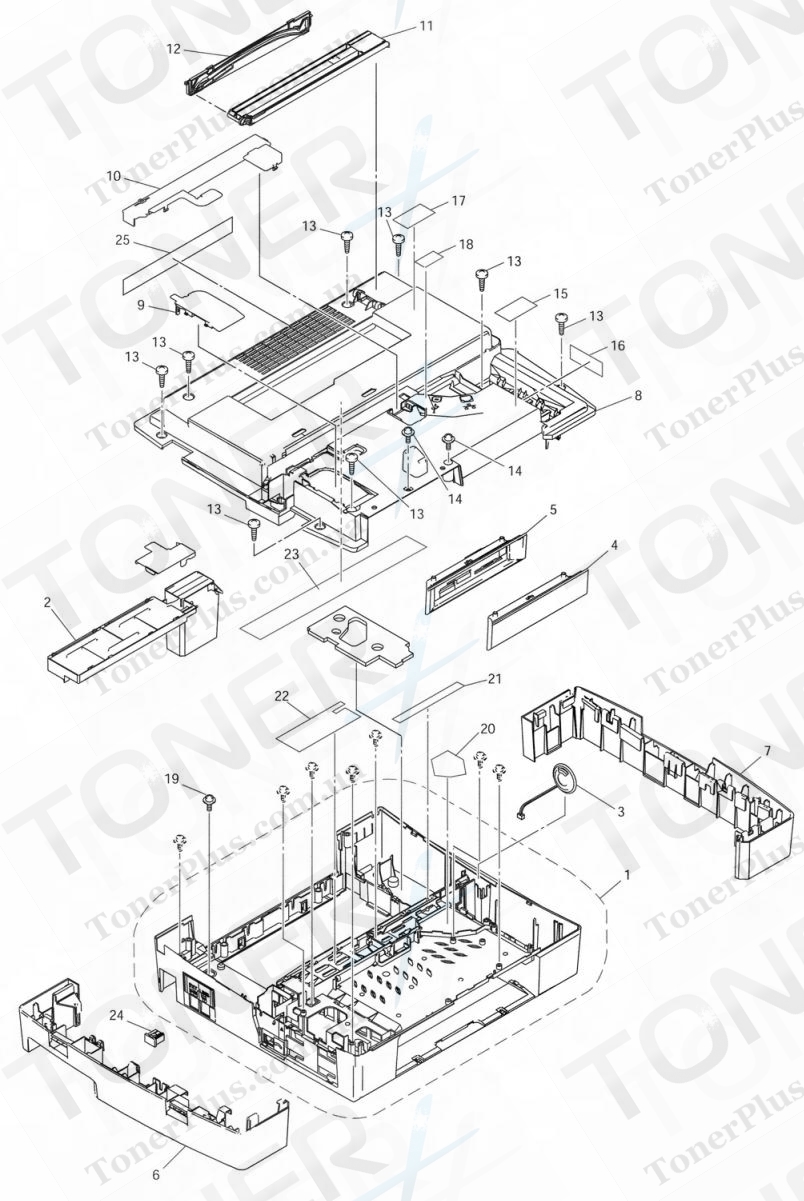

Группа запчастей для Brother MFC5840CN - COVER


Группа запчастей для Brother MFC5840CN - COVER
Номер партии Описание Примечание
1 LF4865001 LOWER COVER ASSY, MFC5440CN
1 LF7220001 LOWER COVER ASSY, MFC5840CN
10 LF4987001 CIS FLAT CABLE COVER
11 LF7010001 SCANNER COVER STOPPER
12 LF7011001 SCANNER COVER DAMPER
13 085411216 TAPTITE, BIND B M4X12
14 087310815 TAPTITE, CUP B M3X8
15 LP0717001 INK REPLACE LABEL CHG
16 LF5116001 CONSUMPTION LABEL FOR GER/UK/FRA/BEL/NLD/CHE/IRE/AUS/SPA/ITA/POR/PND/GNR
16 LF7833001 CONSUMPTION LABEL FOR CHN
16 LF5941001 CONSUMPTION LABEL FOR HK/ASA/OCE
17 LF5789001 COVER OPEN/CLOSE LABEL
18 LF5191001 USB STICKER FOR CHN
18 LF5179001 USB STICKER EXCEPT FOR CHN
19 0A5300805 SCREW, PAN(S/P WASHER) M3X8
2 LF7950001 INK ABSORBER BOX ASSY, MFC5840CN
2 LF7544001 INK ABSORBER BOX ASSY, MFC5440CN
20 LF7105001 USB/LAN CONNECTION LABEL
21 LF7262001 FFC GUIDE FILM
22 LF7445001 TUBE GUIDE FILM
23 LF7321001 SLIDE FILM
24 UF5745000 MJ COVER, EXT FOR GER/UK/FRA/BEL/AUS/ITA
25 LP0582001 PAPER JAM INSTRUCTION LABEL/M2, MFC5440CN chg
3 LG6024001 SPEAKER UNIT
4 LF5270001 FRONT SUB COVER, MFC5440CN
5 LF5292001 MEDIA MODULE COVER, MFC5840CN
6 LF5271001 SIDE COVER L
7 LF5272001 SIDE COVER R
8 LP0070001 UPPER COVER (*1 : For models with non-detachable carriage PCB on the print head)
8 LF5273001 UPPER COVER (*2: For models with detachable carriage PCB on the print head) add
9 LF4879001 HARNESS COVER
