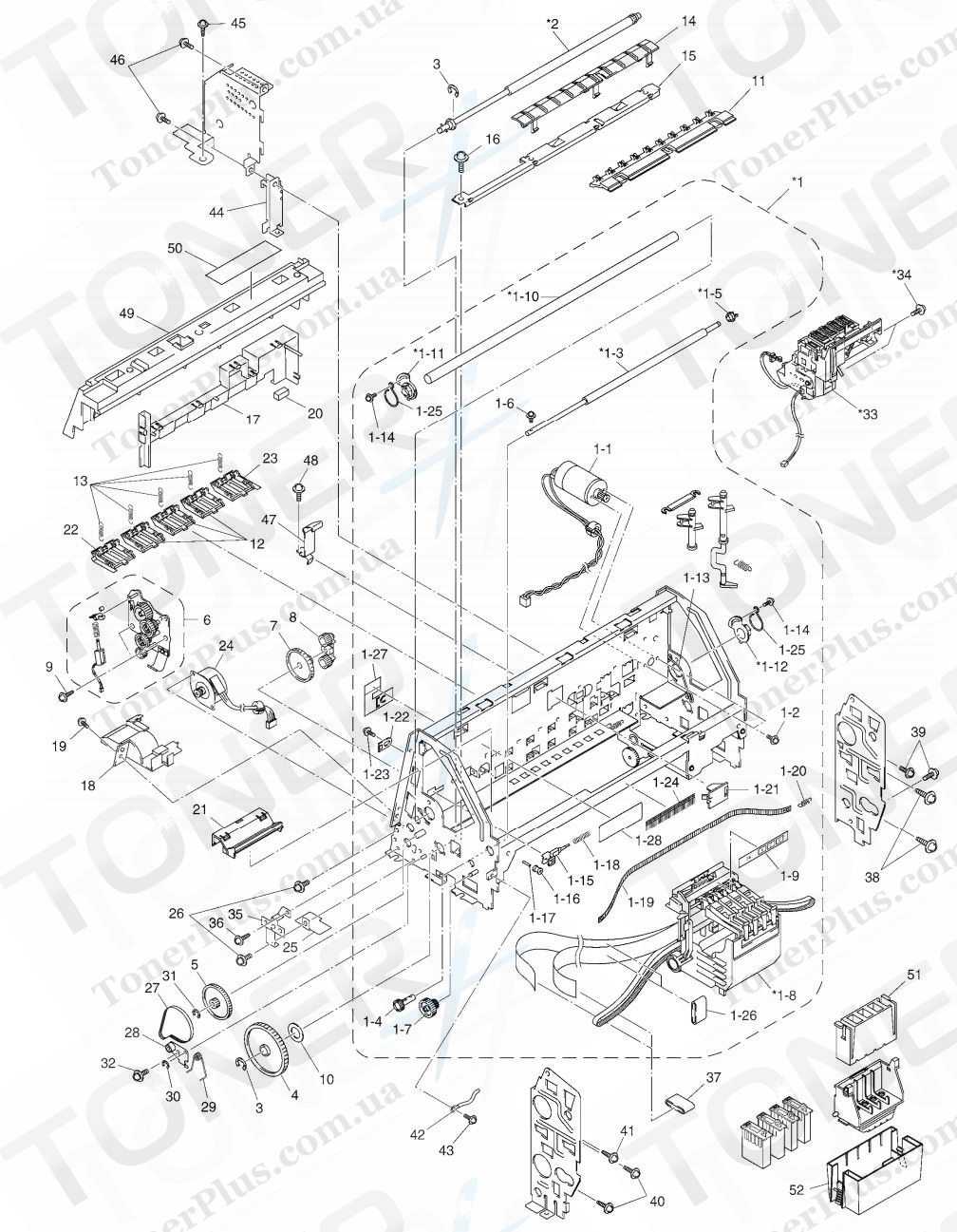

| *1 |
UU1493001 |
MAIN FRAME ASSY |
|
|
| *1-10 |
UU1077001 |
CARRIAGE RAIL |
|
|
| *1-11 |
UU1078001 |
ECCENTRIC BUSHING L |
|
|
| *1-12 |
UU1079001 |
ECCENTRIC BUSHING R |
|
|
| *1-3 |
UU1047001 |
PAPER EJECTION ROLLER |
|
|
| *1-5 |
UU1290001 |
BUSHING |
|
|
| *1-8 |
LE0159001 |
CARRIAGE ASSY |
|
|
| *2 |
UU1089001 |
PAPER FEED ROLLER ASSY |
|
|
| *33 |
UU1502001 |
PURGE UNIT ASSY |
|
|
| *34 |
0A5300605 |
SCREW, PAN (S/P WASHER) M3X6 |
|
|
| 1-1 |
UU1042001 |
CARRIAGE MOTOR |
|
|
| 1-13 |
UU1080001 |
RAIL PRESSURE SPRING |
|
|
| 1-14 |
0A5300805 |
SCREW, PAN (S/P WASHER) M3X8 |
|
|
| 1-15 |
UU1081001 |
IDLE PULLEY HOLDER |
|
|
| 1-16 |
UD6023000 |
IDLE PULLEY |
|
|
| 1-17 |
UD6025001 |
IDLE PULLEY SHAFT |
|
|
| 1-18 |
UU1082001 |
TENSION SPRING |
|
|
| 1-19 |
UD6014001 |
ENCODER STRIP |
|
|
| 1-2 |
0A5300605 |
SCREW, PAN (S/P WASHER) M3X6 |
|
|
| 1-20 |
UD6012001 |
ENCODER STRIP SPRING |
|
|
| 1-21 |
UU1088001 |
FFC HOLDER |
|
|
| 1-22 |
UU1286001 |
IDLE PULLEY STOPPER |
|
|
| 1-23 |
0A5300805 |
SCREW, PAN (S/P WASHER) M3X8 |
|
|
| 1-24 |
UU1107001 |
ANTISTATIC BRUSH |
|
|
| 1-25 |
UU1476001 |
BUSHING LOCK |
|
|
| 1-26 |
UG5569000 |
UPPER FLAT CORE |
|
|
| 1-27 |
UU1459001 |
CORE SUPPORT |
|
|
| 1-28 |
UU1238001 |
CAUTION LABEL |
|
|
| 1-4 |
UU1049001 |
PAPER EJECTION ROLLER GEAR |
|
|
| 1-6 |
0A5260805 |
SCREW, PAN (S/P WASHER) M2.6X8 |
|
|
| 1-7 |
UU1050001 |
PAPER EJECTION IDLE GEAR |
|
|
| 1-9 |
UU1313001 |
INK COLOR LABEL |
|
|
| 10 |
UU1092001 |
SPACER |
|
|
| 11 |
UU1108001 |
STAR WHEEL HOLDER ASSY |
|
|
| 12 |
UU1111001 |
PAPER PRESSURE HOLDER ASSY |
|
|
| 13 |
UU1115001 |
PRESSURE HOLDER SPRING |
|
|
| 14 |
UU1116001 |
PLATEN |
|
|
| 15 |
UU1117001 |
PLATEN FRAME |
|
|
| 16 |
087320616 |
TAPTITE, CUP S M3X6 |
|
|
| 17 |
UU1119001 |
PURGE LEVER COVER |
|
|
| 18 |
UU1120001 |
GEAR COVER |
|
|
| 19 |
087320616 |
TAPTITE, CUP S M3X6 |
|
|
| 20 |
UU1381001 |
SPONGE A |
|
|
| 21 |
UU1315001 |
FLUSHING SUPPORT PLATE |
|
|
| 22 |
UU1418001 |
PAPER PRESSURE HOLDER L |
|
|
| 23 |
UU1419001 |
PAPER PRESSURE HOLDER R |
|
|
| 24 |
UU1452001 |
PAPER FEED MOTOR ASSY |
|
|
| 25 |
UU1465001 |
MOTOR SHIELD |
|
|
| 26 |
0A5300805 |
SCREW, PAN (S/P WASHER) M3X8 |
|
|
| 27 |
UU1446001 |
PF TIMING BELT |
|
|
| 28 |
UU1450001 |
TENSION PLATE ASSY |
|
|
| 29 |
UU1444001 |
TENSION SPRING |
|
|
| 3 |
048080345 |
RETAINING RING, E8 |
|
|
| 30 |
048030345 |
RETAINING RING, E3 |
|
|
| 31 |
048040345 |
RETAINING RING, E4 |
|
|
| 32 |
0A5300805 |
SCREW, PAN (S/P WASHER) M3X8 |
|
|
| 35 |
UU1152001 |
GROUNDING PLATE |
|
|
| 36 |
087320616 |
TAPTITE, CUP S M3X6 |
|
|
| 37 |
UG5577000 |
LOWER FLAT CORE |
|
|
| 38 |
087411216 |
TAPTITE, CUP B M4X12 |
|
|
| 39 |
087320616 |
TAPTITE, CUP S M3X6 |
|
|
| 4 |
UU1094001 |
PAPER FEED ROLLER GEAR L |
|
|
| 40 |
087411216 |
TAPTITE, CUP B M4X12 |
|
|
| 41 |
087320616 |
TAPTITE, CUP S M3X6 |
|
|
| 42 |
UU1375001 |
COATING CLIP |
|
|
| 43 |
087320616 |
TAPTITE, CUP S M3X6 |
|
|
| 44 |
UU1196001 |
GROUNDING PLATE R |
|
|
| 45 |
087411216 |
TAPTITE, CUP B M4X12 |
|
|
| 46 |
087320616 |
TAPTITE, CUP S M3X6 |
|
|
| 47 |
UU1046001 |
COVER LOCK LEAF SPRING |
|
|
| 48 |
0A5300605 |
SCREW, PAN (S/P WASHER) M3X6 |
|
|
| 49 |
UU1217001 |
FRAME COVER, WHITE(1138) |
|
|
| 5 |
UU1428001 |
IDLE GEAR 720 |
|
|
| 50 |
UU1235001 |
INK REPLACE INSTRUCTION LABEL |
|
|
| 51 |
ZA0424001 |
HEAD FILTER SEALS (INCLUDING 10PCS) |
|
|
| 52 |
ZA0423001 |
HEAD NOZZLE SEALS (INCLUDING 10PCS) |
|
|
| 6 |
UU1096001 |
GEAR FRAME ASSY |
|
|
| 7 |
UU1105001 |
PAPER FEED IDLE GEAR |
|
|
| 8 |
UU1275001 |
PF ARM ASSY |
|
|
| 9 |
087311016 |
TAPTITE, CUP B M3X10 |
|
|
