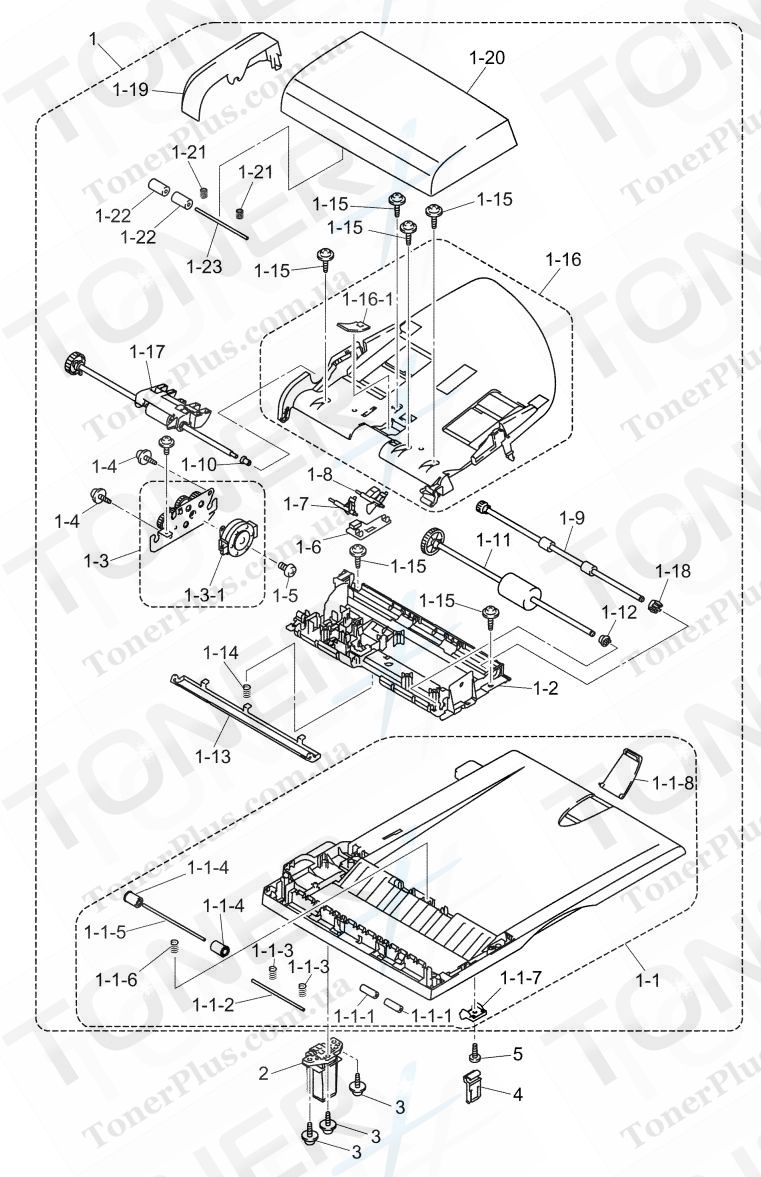

Группа запчастей для Brother MFC9420CN - ADF

№	Номер партии	Описание

1	LF9057001	DOCUMENT COVER ASSY
1-1	LF9058001	DOCUMENT COVER SUB ASSY
1-1-1	LE9733001	PRESSURE ROLLER
1-1-2	LE2471001	PRESSURE ROLLER SHAFT
1-1-3	LF5206001	LF SPRING
1-1-4	UL6244002	EJECTION ROLLER
1-1-5	LE9735001	PRESSURE ROLLER SHAFT
1-1-6	LE6206001	EJECTION SPRING
1-1-7	LF6165001	HINGE ARM
1-1-8	LF6166003	DOCUMENT STOPPER
1-10	LF4230001	BUSHING
1-11	LF6579001	LF ROLLER ASSY
1-12	UF0026001	RESIN BEARING
1-13	LF5225001	DOCUMENT HOLD
1-14	LF5226001	DOCUMENT HOLD SPRING
1-15	087311016	TAPTITE CUP B M3X10
1-16	LF9064001	UPPER DOCUMENT CHUTE ASSY
1-16-1	LF9784001	SEPARATION RUBBER
1-17	LF6582001	SEPARATE ROLLER SHAFT ASSY
1-18	UF9949001	EJECTION ROLLER BEARING
1-19	LF9066001	GEAR COVER
1-2	LF9063001	LOWER DOCUMENT CHUTE
1-20	LF9068001	ADF COVER
1-21	LE2472001	LF SPRING
1-22	UF9009001	PRESSER ROLLER
1-23	LE2471001	PRESSURE ROLLER SHAFT
1-3	LF9080001	DRIVE FRAME ASSY
1-3-1	LF9081001	ADF MOTOR
1-4	087311016	TAPTITE CUP B M3X10
1-5	0A4300606	SCREW PAN (S/P WASHER) M3X6
1-6	LG5847001	ADF SENSOR PCB ASSY
1-7	LF5217001	ACTUATOR, R
1-8	LF4967001	ACTUATOR, F
1-9	LF6577001	EJECTION ROLLER ASSY
2	LF6846001	HINGE ASSY L
3	087311016	TAPTITE CUP B M3X10
4	LF4976002	HINGE
5	085411216	TAPTITE BIND B M4X12
