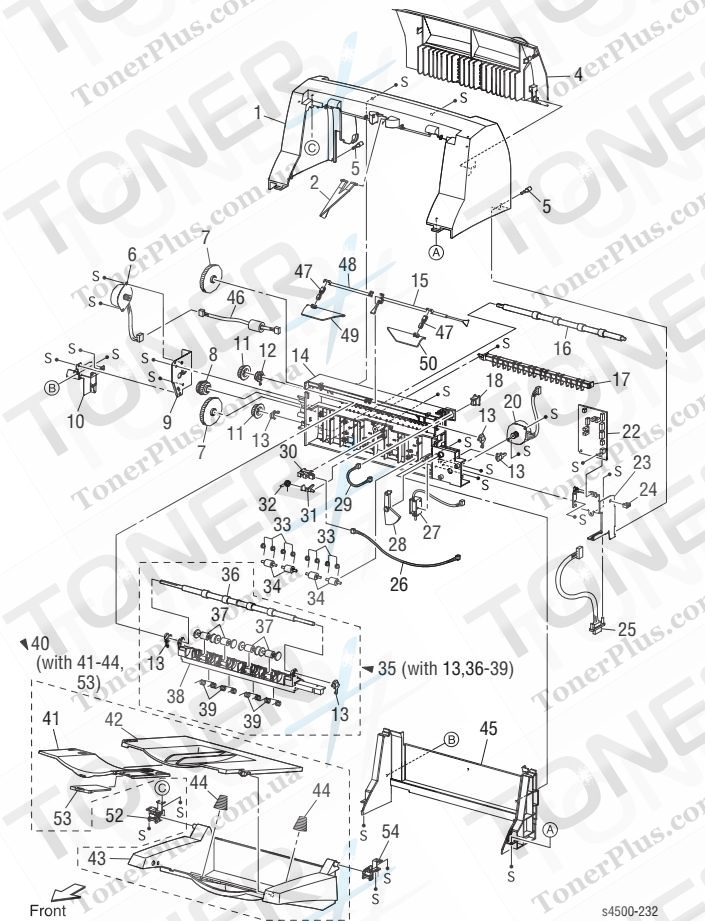

COVER OCT (with 3) (Stacker Cover) |
|
|
| 10 |
---- |
SUPPORT OCT LEFT (Left Stacker Support) |
|
|
| 11 |
007E74821 |
GEAR 19 |
|
|
| 12 |
013E22030 |
BEARING OFFSET |
|
|
| 13 |
013E22021 |
BEARING ROLL |
|
|
| 14 |
---- |
HOUSING OCT (Stacker Housing) |
|
|
| 15 |
120E21663 |
ACTUATOR FULL STACK |
|
|
| 16 |
059K25121 |
ROLL OCT LOWER (Lower Stacker Roller) |
|
|
| 17 |
---- |
CHUTE INLET |
|
|
| 18 |
110E10200 |
S/W REAR COVER (P740) |
|
|
| 2 |
036E91551 |
WEIGHT |
|
|
| 20 |
127K39340 |
MOTOR ASSY OFFSET (J72) |
|
|
| 22 |
160K86744 |
PWBA OCT (Stacker PWBA) |
|
|
| 23 |
---- |
SUPPORT OCT RIGHT (Right Stacker Support) |
|
|
| 24 |
---- |
CLAMP MINI |
|
|
| 25 |
---- |
HARNESS ASSY OCT 2 (J70-JD3070) (Stacker Harness 2) |
|
|
| 26 |
---- |
HARNESS ASSY OCT SNR (J73-J730) (Stacker Sensor Harness) |
|
|
| 27 |
121K28671 |
SOLENOID ASSY GATE (J75) |
|
|
| 28 |
007E74810 |
GEAR CAM |
|
|
| 29 |
---- |
HARNESS ASSY REAR COVER (J74-J740) |
|
|
| 3 |
---- |
ELIMINATOR ASSY |
|
|
| 30 |
130E81970 |
SENSOR OCT (P730) (Stacker Sensor) |
|
|
| 31 |
120E21270 |
ACTUATOR OCT (Stacker Actuator) |
|
|
| 32 |
809E37332 |
SPRING ACTUATOR |
|
|
| 33 |
809E37341 |
SPRING PINCH |
|
|
| 34 |
059E97541 |
ROLL PINCH |
|
|
| 35 |
054K23313 |
CHUTE OFFSET ASSY (with 13, 36-39) |
|
|
| 36 |
---- |
ROLL OCT UPPER (Upper Stacker Roller) |
|
|
| 37 |
---- |
ROLL PINCH OCT (Stacker Pinch Roller) |
|
|
| 38 |
---- |
CHUTE OFFSET |
|
|
| 39 |
---- |
SPRING PINCH EXIT |
|
|
| 4 |
---- |
COVER REAR |
|
|
| 40 |
050K49264 |
TRAY ASSY OCT (with41-44, 53) (Stacker Tray Assembly) |
|
|
| 41 |
---- |
TRAY EXTENSION |
|
|
| 42 |
---- |
TRAY EXIT |
|
|
| 43 |
---- |
TRAY BASE |
|
|
| 44 |
---- |
SPRING TRAY |
|
|
| 45 |
---- |
COVER FRONT |
|
|
| 46 |
---- |
HARNESS ASSY OCT MOT (J71-P710) (Stacker Motor Harness) |
|
|
| 47 |
---- |
LINK |
|
|
| 48 |
006E79380 |
SHAFT FULL STACK |
|
|
| 49 |
036K91582 |
FLAPPER ASSY L (with 47) |
|
|
| 5 |
---- |
SCREW THUMB |
|
|
| 50 |
036K91592 |
FLAPPER ASSY R (with 47) |
|
|
| 51 |
---- |
SPRING |
|
|
| 52 |
004K02070 |
DAMPER ASSY TRAY L |
|
|
| 53 |
---- |
STOPPER |
|
|
| 54 |
004K02080 |
DAMPER ASSY TRAY R |
|
|
| 6 |
127K36291 |
MOTOR ASSY OCT (J71) (Stacker Motor Assembly) |
|
|
| 7 |
007E74830 |
GEAR 45 |
|
|
| 8 |
007E74840 |
GEAR 19/37 |
|
|
| 9 |
---- |
BRACKET MOTOR OCT (Stacker Motor Bracket) |
|
|
| 99 |
084K18114 |
STACKER ASSY (ENTIRE UNIT) |
|
|
