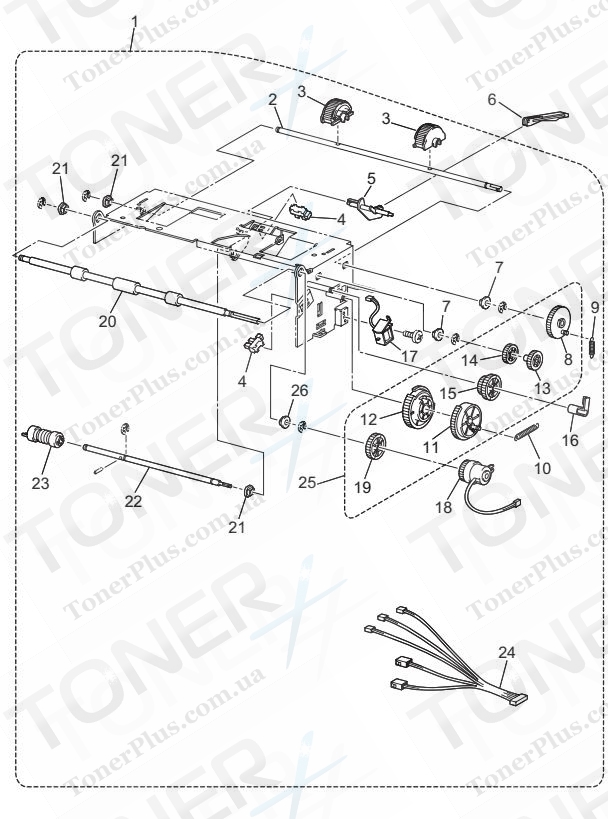

Группа запчастей для Brother HL4200CN - PAPER FEEDER 3


Группа запчастей для Brother HL4200CN - PAPER FEEDER 3
Номер партии Описание Примечание
1 LM0008001 PICKUP ASSY
10 LM0168001 SPRING FEED H
11 LM0169001 GEAR FEED H2
12 LM0170001 GEAR FEED H1
13 LM0171001 GEAR FEED 2
14 LM0172001 GEAR IDLER FEED
15 LM0173001 GEAR IDLER
16 LM0174001 STOPPER CLUTCH
17 LM0013001 SOLENOID FEED
18 LM0014001 CLUTCH ASSY TURN
19 LM0175001 GEAR IDLER IN
2 LM0126001 SHAFT FEED 1
20 LM0176001 ROLL ASSY TURN
21 LM0177001 BUSH(D6XL8)/BLACK
22 LM0178001 SHAFT FEED 2
23 LJ3998001 ROLL ASSY
24 LM0179001 HARNESS ASSY FEEDER
25 LM0016001 KIT GEAR FDR
26 LM0165001 TURN ROLL BEARING METAL ADD
3 LM0009001 ROLL ASSY FEED
4 LM0010001 SENSOR PHOTO
5 LM0011001 ACTUATOR NO PAPER
6 LM0012001 LINK ACTUATOR
7 LM0165001 BUSH(D6XL8)/METAL
8 LM0166001 GEAR FEED 1
9 LM0167001 SPRING FEED 1
