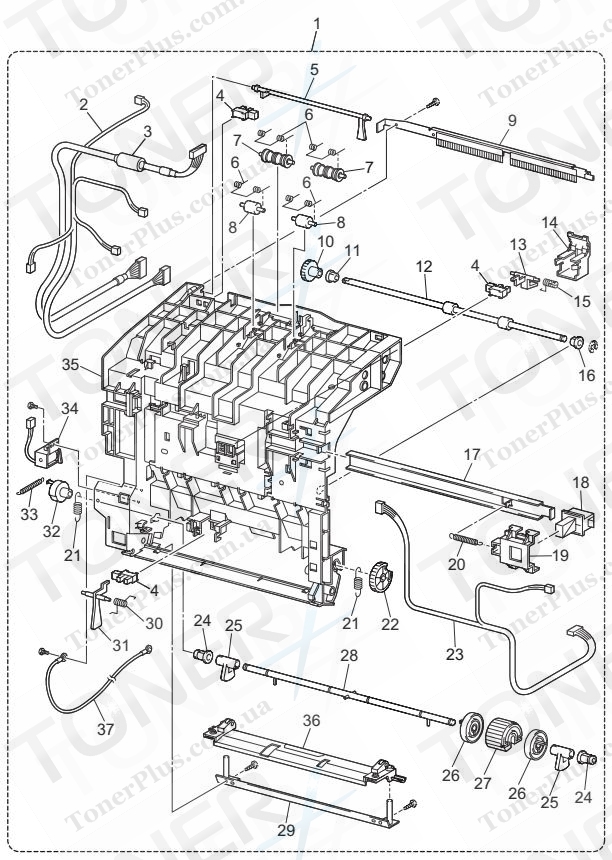

Группа запчастей для Brother HL4200CN - CHUTE ASSY OUT


Группа запчастей для Brother HL4200CN - CHUTE ASSY OUT
Номер партии Описание Примечание
1 LM0426001 CHUTE ASSY OUT
10 LM0222001 GEAR 30
11 LM0190001 BUSH EARTH
12 LM0223001 ROLL DUP
13 LM0029001 ACTUATOR DUP
14 LM0030001 COVER ACTUATOR
15 LM0224001 SPRING SNR DUP
16 LM0225001 BUSH
17 LM0226001 PLATE LATCH
18 LM0227001 LACHT OUT
19 LM0228001 HOLDER LATCH
2 LM0216001 HARNESS ASSY FRONT 2
20 LM0229001 SPRING LATCH OUT
21 LM0230001 SPRING N/F
22 LM0031001 GEAR MSI
23 LM0429001 HARNESS ASSY DUP
24 LM0430001 BUSH MSI
25 LM0233001 CAM MSI
26 LM0032001 ROLL CORE MSI
27 LM0234001 ROLL ASSY FEED MSI
28 LM0235001 SHAFT MSI
29 LM0236001 PLATE OUT MSI
3 LM0217001 HARNESS ASSY OPEPANE BS
30 LM0033001 SPRING SENSOR MSI
31 LM0034001 ACTUATOR MSI
32 LM0237001 STOPPER SOL
33 LM0238001 SPRING SOL
34 LM0035001 SOLENOID FEED MSI
35 LM0239001 CHUTE DUP OUT
36 LM0240001 PLATE ASSY BOTTOM MSI
37 LM0241001 WIRE ASSY DUP EARTH
4 LM0027001 SENSOR PHOTO
5 LM0028001 ACTUATOR FULL
6 LM0427001 SPRING PINCH EXIT
7 LM0219001 ROLL PINCH EXIT
8 LM0220001 ROLL PINCH
9 LM0428001 BRACKET ASSY ELIMINATOR
