BROTHER
Brother MFC760

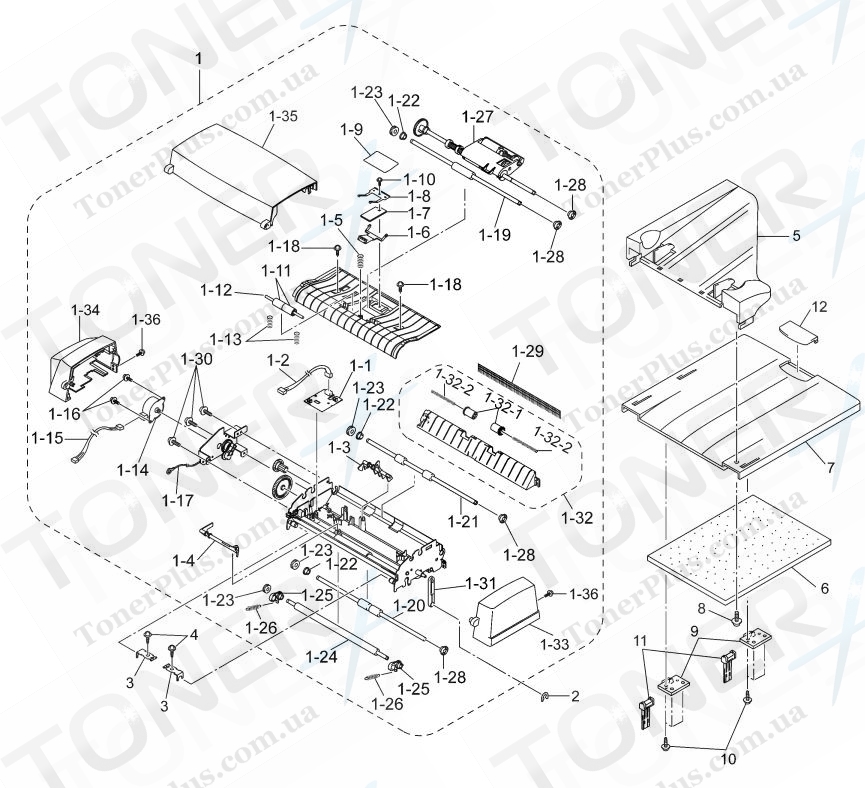

1. ADF&TRAY
Группа запчастей для Brother MFC760 - ADF&TRAY
№
Номер партии
Описание
Примечание
(1-27-1)
LE2037001
DOCUMENT FEED ROLLER (RUBBER)
1
LE2005001
ADF UNIT
1-1
UG6609001
DOCUMENT SENSOR PCB
1-10
UF6116001
TAPTITE, PAN B M3X6
1-11
UF9009001
PRESSURE ROLLER
1-12
LE2471001
PRESSURE ROLLER SHAFT
1-13
LE2472001
PRESSURE ROLLER SPRING
1-14
LE2566001
ADF MOTOR
1-15
LG2015001
ADF MOTOR HARNESS
1-16
0A4300605
SCREW, PAN (S/P WASHER) M3X6
1-17
LG2016001
GROUNDING WIRE
1-18
087310815
TAPTITE, CUP B M3X8
1-19
LE2026001
UPPER LF ROLLER (GRAY)
1-2
LG2014001
DOCUMENT SENSOR HARNESS
1-20
LE2029001
LOWER LF ROLLER (BLACK)
1-21
LE2028001
DOCUMENT EJECTION ROLLER
1-22
UF8105001
CONDUCTIVE BUSHING
1-23
UU7039001
LF ROLLER GEAR 27
1-24
LE2030001
WHITE ROLLER
1-25
LE2032001
WHITE ROLLER BUSHING
1-26
LE2033001
EXTENSION SPRING
1-27
LE2919001
DOCUMENT FEED ROLLER HOLDER ASSY
1-28
UU1290001
CONDUCTIVE BUSHING
1-29
UU7505001
ANTI-STATIC BRUSH
1-3
UF7026001
DOCUMENT FRONT SENSOR ACTUATOR
1-30
087320616
TAPTITE, CUP S M3X6
1-31
UF0208001
ADF ARM
1-32
LE2048001
DOCUMENT EJECTION CHUTE ASSY
1-32-1
LE2582001
PINCH ROLLER
1-32-2
UU2009001
PINCH ROLLER SPRING
1-33
LE2050001
ADF SIDE COVER F, WHITE(1495)
1-34
LE2051001
ADF SIDE COVER R, WHITE(1495)
1-35
LE2534001
ADF COVER ASSY, WHITE(1495)
1-36
087320816
TAPTITE, CUP S M3X8
1-4
LE2008001
DOCUMENT REAR SENSOR ACTUATOR
1-5
LE2011001
COMPRESSION SPRING
1-6
LE2551001
RUBBER HOLDER A
1-7
UU2055001
SEPARATION RUBBER
1-8
LE2550001
SPRING PLATE A
1-9
LE2470001
ADF FILM
10
087311015
TAPTITE, CUP B M3X10
11
LE2568001
HINGE HOLDER A
12
LE2777001
DOCUMENT SUPPORT, WHITE(1495)
2
UF8088001
PLASTIC RETAINING RING
3
LE2053001
ADF SUPPORT
4
087310816
TAPTITE, CUP B M3X8
5
LE3426001
DOCUMENT CHUTE, WHITE(1495)
6
LE2487001
DOCUMENT SPONGE
7
LE2056001
DOCUMENT TRAY, WHITE(1495)
8
087320816
TAPTITE, CUP S M3X8
9
LE2567001
HINGE A
