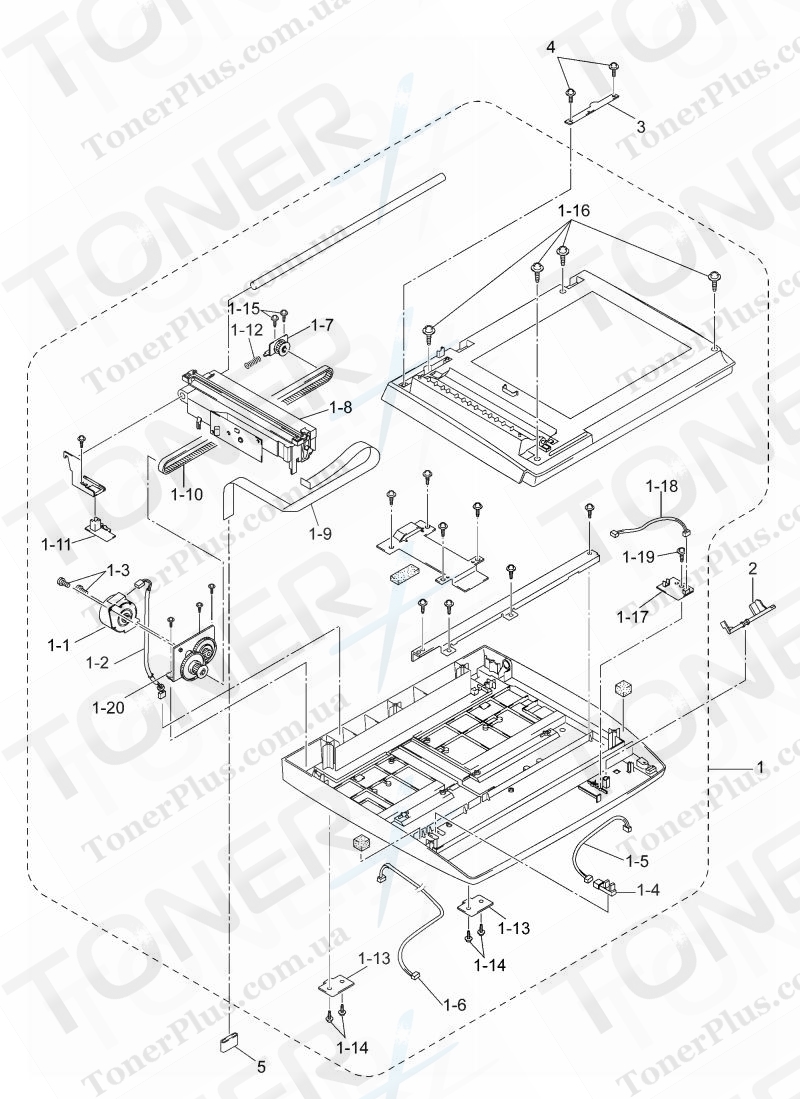

Группа запчастей для Brother MFC760 - SCANNER UNIT

Группа запчастей для Brother MFC760 - SCANNER UNIT
№ Номер партии Описание Примечание
1 LE2883001 SCANNER UNIT SUPPLY ASSY
1-1 UU7490001 CCD MOTOR
1-10 LE2297001 CCD DRIVE BELT
1-11 LE2082001 CCD LOCK
1-12 LE2079001 COMPRESSION SPRING
1-13 LE2098001 HINGE PLATE
1-14 085411216 TAPTITE, BIND B M4X12
1-15 LE2805001 TAPTITE, PAN B M3X10
1-16 087411216 TAPTITE, CUP B M4X12
1-17 LG2018001 COVER SENSOR PCB
1-18 LG2137001 COVER SENSOR HARNESS
1-19 087310815 TAPTITE, CUP B M3X8
1-2 LG2017001 CCD MOTOR HARNESS
1-20 LE1775001 MOTOR BRACKET
1-3 0A4300605 SCREW, PAN (S/P WASHER) M3X6
1-4 LG2239001 CCD HP SENSOR
1-5 LG2019001 CCD HP SENSOR HARNESS
1-6 LG2025001 PANEL-MAIN HARNESS
1-7 LE2074001 CCD IDLE PULLEY HOLDER ASSY
1-8 LE2884001 CCD UNIT SUPPLY ASSY
1-9 LG2196001 CCD FLAT CABLE
2 LE2095001 COVER SENSOR ACTUATOR
3 LE2092001 HARNESS SUPPORT
4 087310816 TAPTITE, CUP B M3X8
5 LG2020001 FLAT CORE (CCD)
