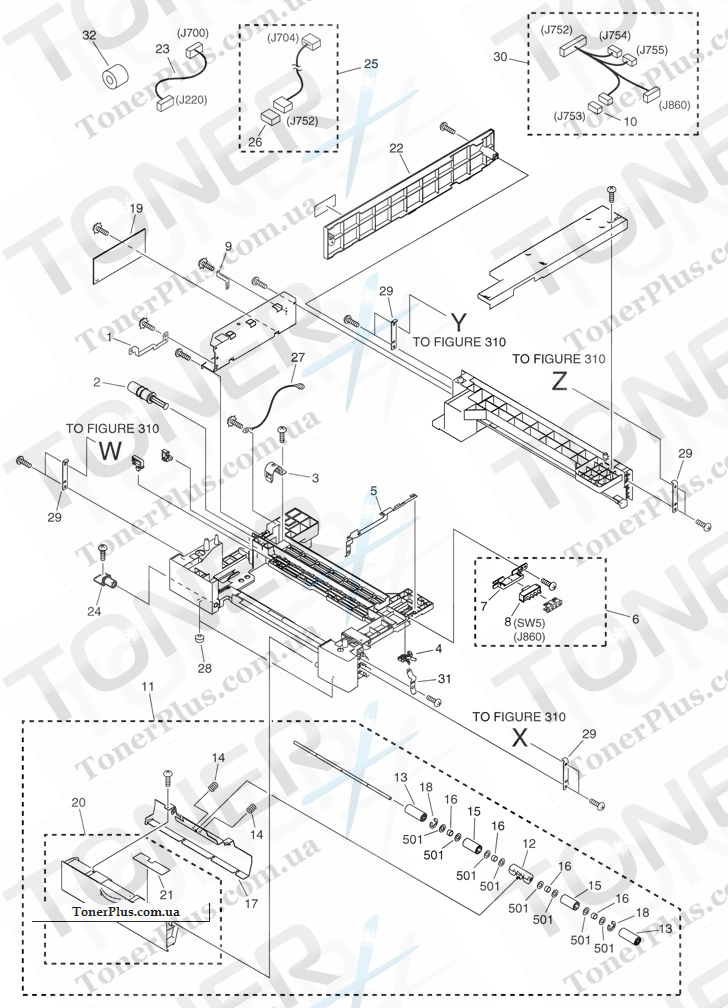

Каталог запчастей для Canon iR2422D - 312 CASSETTE FEEDER ASSEMBLY(2 CASSETTE UNIT model)

№	Номер партии	Описание	Примечание
1	FC6-6720-000	PLATE, GROUNDING
10	VS1-7177-002	CONNECTOR, SNAP TIGHT, BK
11	FM2-4483-000	VERTICAL PATH UNIT
12	FA8-2447-000	MOUNT, ROLLER
13	FB6-1536-000	ROLLER
14	FB6-1920-000	SPRING, COMPRESSION
15	FB6-1996-000	ROLLER, VERTICAL PATH
16	FB6-1997-000	SPRING, COMPRESSION
17	FC6-6714-000	GUIDE, VERTICAL PATH
18	XD9-0136-000	RING, E
19	FM2-4495-000	FEEDER CONTROLLER PCB ASSY
2	FB4-5532-000	DAMPER
20	FL2-3736-000	COVER, VERTICAL PATH
21	FU5-8680-000	LABEL,JAM
22	FC6-6710-000	COVER, CASSETTE, REAR
23	FM2-4497-000	CABLE, INTERFACE, 1
24	FC6-6718-000	SHAFT, COVER CABLE,
25	FM2-4499-000	FEEDER CONNECTOR,
26	VS1-7177-013	SNAP TIGHT CABLE,
27	FM2-4500-000	EARTH
28	XH9-0135-000	FOOT, RUBBER
29	FC8-0353-000	PLATE, JOINT
3	FB6-1608-000	HOLDER, DAMPER
30	FM2-4496-000	CABLE, FEEDER
31	FC6-6712-000	PLATE, EARTH
32	WE8-5648-000	CORE, SLEEVE FERRITE
4	FC6-4357-000	BLOCK, POSITION
5	FC6-6706-000	PLATE, EARTH
501	XD1-1106-235	WASHER,COP
6	FG6-8440-000	SIZE DETECTION ASSY
7	FB6-1910-000	MOUNT, SIZE SENSOR
8	WC2-5680-000	SWITCH, PUSH	SW5
9	FC6-6720-000	PLATE, GROUNDING
Fig.312	NPN	CASSETTE FEEDER ASSEMBLY	2 CASSETTE UNIT model
