Каталог запчастей для Canon iR2535 - B13 DOCUMENT TRAY ASSEMBLY (DADF-AB1 MODEL)


Каталог запчастей для Canon iR2535 - B13 DOCUMENT TRAY ASSEMBLY (DADF-AB1 MODEL)
Номер партии Описание Примечание
1 WG8-5696-000 PHOTO INTERRUPTER, TLP1243 PI3, PI4, PI5
10 FS4-0657-000 RACK, TRAY
11 FS4-0658-000 GEAR, 16T
12 FS2-9572-000 SCREW, M3X10
13 FM4-3611-000 CONNECTING PCB ASSEMBLY PI1, PI2
14 FS2-9569-000 SCREW, M3X10
2 FC3-1486-000 GUIDE, TRAY, FRONT
3 FC3-1488-000 LEVER, TRAY SENSOR
4 FF3-4625-000 TRAY
5 FC9-9557-000 ELIMINATOR, STATIC CHARGE
6 FF3-4626-000 GUIDE, TRAY
7 FS9-0210-000 LABEL, DOCUMENT MAXIMUM LOAD
8 FF3-4627-000 RACK
9 FF3-4628-000 COVER, TRAY BACK

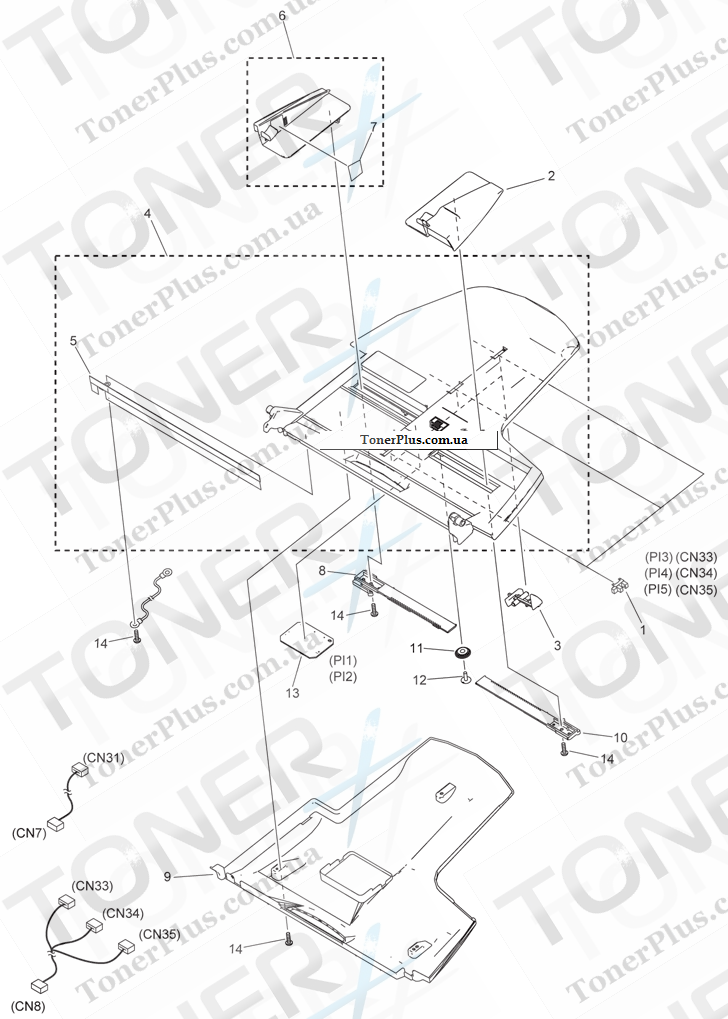

Fig.B13 FG3-4036-000 DOCUMENT TRAY ASSEMBLY DADF-AB1 MODEL
