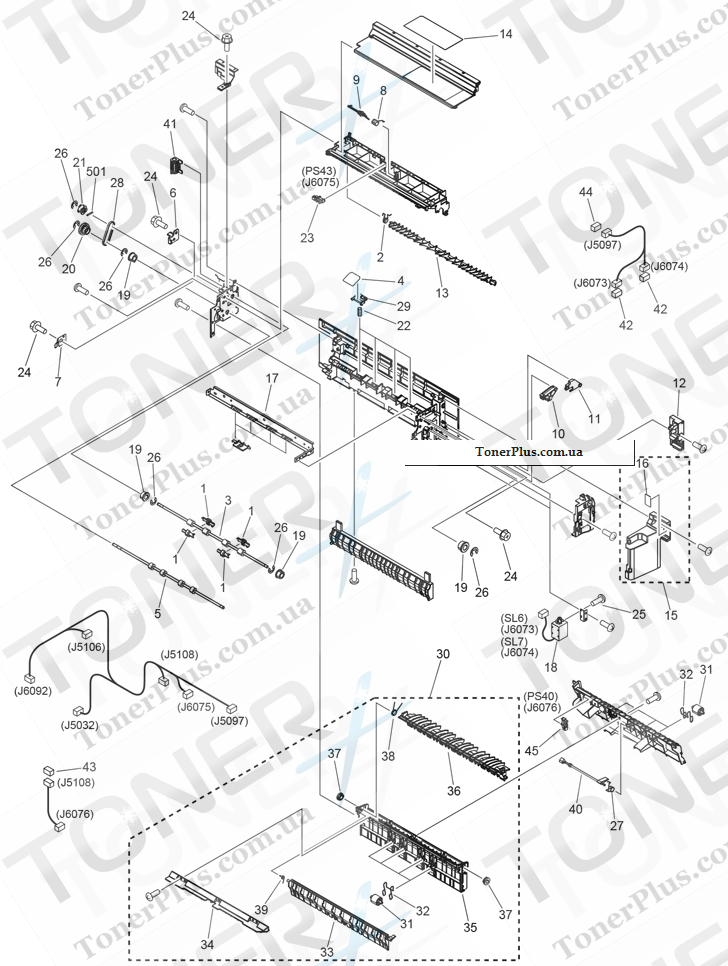

Каталог запчастей для Canon iR Advance C5051 - 352 THIRD PAPER DELIVERY ASSEMBLY


Каталог запчастей для Canon iR Advance C5051 - 352 THIRD PAPER DELIVERY ASSEMBLY
Номер партии Описание Примечание
1 FC5-0805-000 ROLLER, REFORM
10 FC8-5117-000 ARM, 2ND DEL. FLAPPER SOLENOID
11 FC8-5118-000 ARM, 3RD DEL. FLAPPER SOLENOID
12 FC8-5120-000 HOOK, 2ND/3RD PAPER DELIVERY
13 FL2-9510-000 FLAPPER, THIRD PAPER DELIVERY
14 FC8-4777-000 LABEL, JAM OPERATION
15 FL3-1125-000 COVER, SOLENOID, 1
16 FC8-4776-000 LABEL, HANDLE
17 FL3-1167-000 CROSSMEMBER
18 FL3-1169-000 SOLENOID SL6,SL7
19 FS5-1943-000 BUSHING
2 FC5-0977-000 SPRING, TORSION
20 FU5-3018-000 PULLEY, 30T/GEAR, 35T
21 FU5-3021-000 PULLEY, 30T
22 FU7-2512-000 SPRING, COMPRESSION
23 WG8-5848-000 PHOTO-INTERRUPTER,GP1A173LCS0F PS43
24 XA9-1386-000 SCREW,RS,M3X8
25 XA9-1659-000 SCREW,M3X4
26 XD9-0136-000 RING,E
27 FC5-1006-000 SPRING, TORSION
28 XF2-4107-240 BELT, TIMING
29 FM3-0006-000 PAPER DELIVERY ROLLER ASSEMBLY
3 FC5-1020-020 ROLLER, 3RD DELIVERY
30 FM3-5964-010 INTERMEDIATE GUIDE ASSEMBLY
31 FC5-1013-000 ROLLER
32 FC5-1014-000 SPRING
33 FC8-4770-010 FLAPPER, 2ND DELIVERY ENTRANCE
34 FC8-4771-000 GUIDE,DUPLEXING ENTRANCE,UPPER
35 FL3-1115-000 GUIDE, 2ND DEL. ENTRANCE INNER
36 FL3-1126-000 FLAPPER, REVERSE
37 FS5-1377-000 BUSHING
38 FU7-2510-000 SPRING, TORSION
39 FU7-2511-000 SPRING, TORSION
4 FC5-6012-010 SHEET,HOLDER
40 FC5-1005-000 FLAG, DUPLEX ENTRANCE SENSOR
41 FC8-4927-000 LATCH
42 VS1-7177-002 CONNECTOR, SNAP TIGHT, BK
43 VS1-7177-003 CONNECTOR, SNAP TIGHT, BK
44 VS1-7177-004 CONNECTOR, SNAP TIGHT, BK
45 WG8-5783-000 IC,PHOTO-INTERRUPTER,LG248NL1A PS40
5 FC8-4783-000 ROLLER, DUPLEXING ENTRANCE
501 XD3-2200-122 PIN, DOWEL
6 FC8-4929-000 BLOCK, FIXED RELEASE
7 FC8-4933-000 SPRING, LEAF
8 FC8-5111-000 SPRING, TORSION
9 FC8-5112-000 FLAG, THIRD DELIVERY SENSOR
Fig.352 FM3-5963-010 THIRD PAPER DELIVERY ASSEMBLY SEE NOTE
