Номер партии Описание Примечание
1 RM1-5746-000 FAN CABLE ASSY
10 RM1-4999-000 SHUTTER ASSY
11 RM1-5488-000 SHUTTER ASSY
12 RC2-5912-000 COVER
13 RC2-5958-000 SPRING, TORSION
14 RC2-5955-000 HOLDER, CRG. LOCK LEVER
15 RC2-5954-000 LEVER, CARTRIDGE LOCK
16 RC2-5966-000 GUIDE, TRANSFER S CABLE, 1
17 RC2-5967-000 GUIDE, TRANSFER S CABLE, 2
18 RC2-5962-000 COVER
19 RC2-5969-000 GUIDE, CARTRIDGE ESTRANGEMENT
2 RC2-5898-000 TRAY, WASTE TONER CATCH
20 RU6-2318-000 SPRING, COMPRESSION
21 RU6-2316-000 SPRING, COMPRESSION
22 RM1-5676-000 LASER/SCANNER ASSY
23 RC2-4415-000 LEVER, SHUTTER
24 RC3-1075-000 HOLDER, CARTRIDGE LOCK LEVER
25 RC2-4407-030 ARM, SHUTTER, REAR
26 RC2-4406-000 ARM, SHUTTER, FRONT
27 RK2-3267-000 SENSOR UNIT, TMP./HUM. SENSING
28 RM1-5588-000 STAND ASSY
29 RM1-5700-000 TONER SENSOR HOLDER ASSY
3 RC2-5044-000 HOLDER, CARTRIDGE FAN
30 RK2-2418-000 FAN FM2,FM3
31 RM1-8149-000 BASE ASSY
32 RM1-8140-000 LOWER CRG. GUIDE ASSY
33 RM1-5749-000 CONNECTING CABLE ASSY
34 RM1-5740-000 SENSOR CABLE ASSY
35 RM1-5741-000 SENSOR CABLE ASSY
36 RM1-5752-000 MOTOR/SENSOR CABLE ASSY
4 RC2-5932-000 HOLDER, CARTRIDGE FAN
5 RU6-2436-000 SPRING, TENSION
6 RC2-5971-000 GUIDE, CABLE, LOWER
7 RC2-5993-000 SEAL, CARTRIDGE FAN HOLDER
8 RC2-9075-000 LEVER, ESTRANGEMENT
9 RC2-5160-000 STOPPER, PLATE

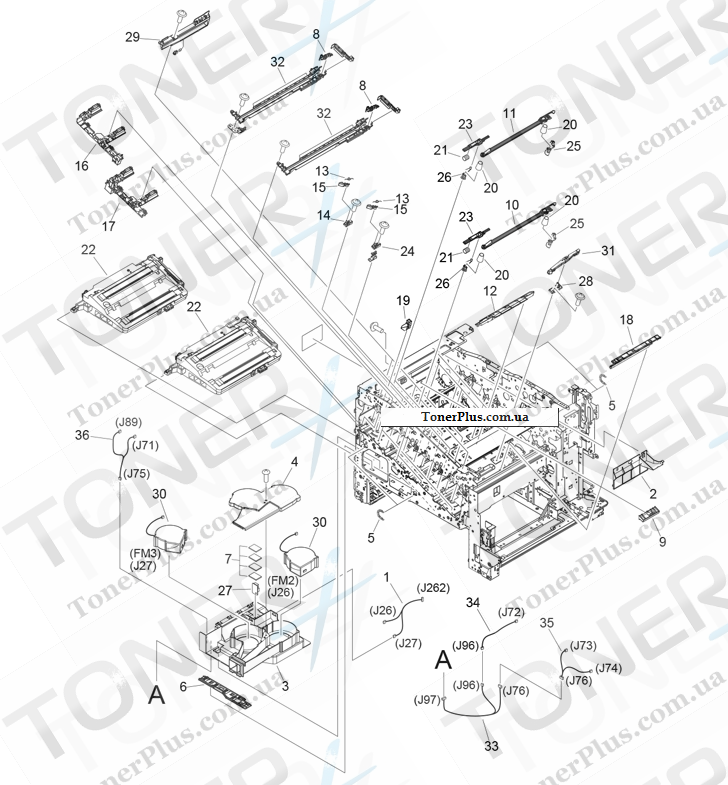

Fig.104 NPN INTERNAL COMPONENTS 2
