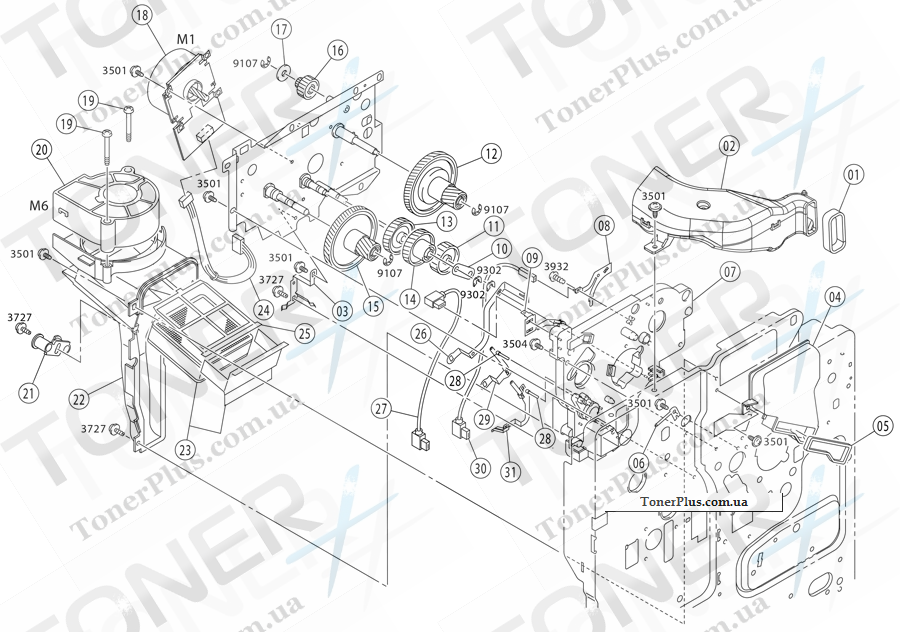

Каталог запчастей для Epson Aculaser C1900 - C485-ME CH-004 (05)


Каталог запчастей для Epson Aculaser C1900 - C485-ME CH-004 (05)
Номер партии Описание Примечание
05-01 1217527 SEAL 4131-3943-01
05-02 1217528 DUCT ASSY 4131-0152-01
05-03 1217529 CONTACT 4131-2585-01
05-04 1217530 DUCT 4131-4609-01
05-05 1217531 SEAL 4131-4612-01
05-06 1217532 GROUND 4131-2583-01
05-07 1217533 HOLDER 4131-2580-03
05-08 1217534 CONTACT 4131-2586-02
05-09 1217535 CONTACT 4131-2587-01
05-10 1217536 GUIDE 4131-2509-01
05-11 1217537 GEAR 4131-2512-01
05-12 1217538 GEAR 4131-2504-01
05-13 1217539 GEAR 4131-2502-01
05-14 1217540 GEAR 4131-2511-01
05-15 1217541 GEAR 4131-2503-01
05-16 1217542 GEAR 4131-2594-01
05-17 1217504 FLANGE 4131-2535-01
05-18 2077359 MOTOR 9314-2100-21
05-19 1217544 TAPPING SCREW 1151-4524-01
05-20 2077358 FAN MOTOR 9313-1100-31
05-21 1217545 GUIDE 4131-4635-02
05-22 1217546 DUCT 4131-4631-04
05-23 1213566 FILTER KIT 4131-0906-01
05-24 2077918 WIRE HARNESS ASSY 4131-6813-01
05-25 1217547 BRACKET 4131-4634-01
05-26 1217548 CONTACT 4131-2588-01
05-27 2077919 WIRE HARNESS ASSY 4131-6828-02
05-28 1217549 PIN 4131-2584-01
05-29 1217550 CONTACT 4131-2582-02
05-30 2077920 WIRE HARNESS ASSY 4131-6826-02
05-31 1217551 CONTACT 4131-2581-01
0502 1217606 PIN 9752-3012-50
0508 1012088 PIN
0509 1040918 PIN
