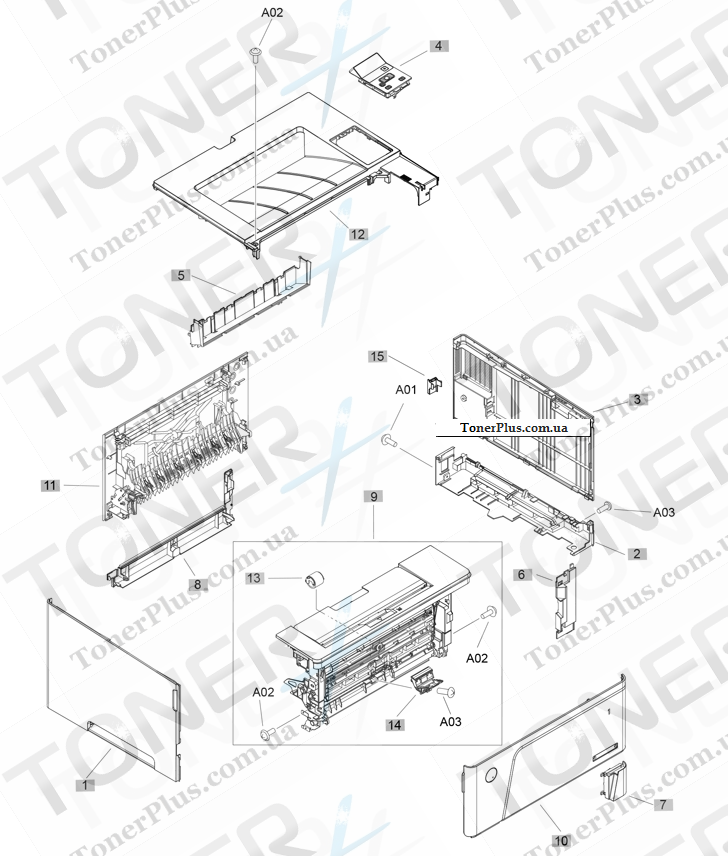

Каталог запчастей для HP LaserJet Pro M701 - External panels and covers


Каталог запчастей для HP LaserJet Pro M701 - External panels and covers
Номер партии Описание Примечание
1 RL2-0557-000 Cover, left
10 RM2-0625-000 Cover, mullti-purpose tray
11 RM2-0636-000 Assembly, rear cover
12 RC3-5766-000 Cover, top
13 RL2-0544-000 Roller, multi-purpose tray, pickup
14 RM1-2462-000 Pad, multi-purpose tray, separation
15 RC3-5767-000 Cover, connector
2 RC3-5758-000 Cover, right handle
3 RM2-5843-000 Assembly, right cover
4 RM2-7527-000 Assembly, control panel, M701a
4 RM2-7526-000 Assembly, control panel, M701n and M706n
5 RL2-0546-000 Cover, face down
6 RC3-5762-000 Cover, right front
7 RC3-5781-000 Cover, right cassette
8 RL2-0550-000 Cover, rear lower
9 RM2-0667-000 Assembly, cartridge door
Not shown B6S01-40001 Nameplate, M701n
Not shown 7121-8541 HP logo, low profile round (size 35)
Not shown B6S02-40001 Nameplate, M706n
Not shown B6S00-40001 Nameplate, M701a
