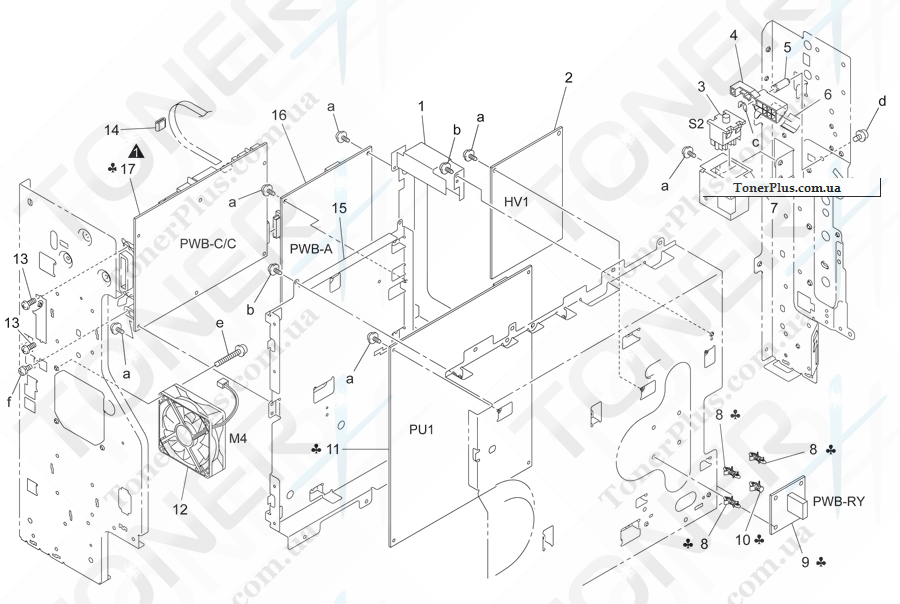

Каталог запчастей для Konica-Minolta bizhub 180 - ELECTRICAL COMPONENTS


Каталог запчастей для Konica-Minolta bizhub 180 - ELECTRICAL COMPONENTS
Номер партии Описание Примечание
1 4034 2202 01 BRACKET
10 9384 1621 21 PWB SUPPORT 6.4H C,D,E,F2,G1,I,J,K
11 4034 6201 02 POWER SUPPLY B,F1,G2,H
11 4034 6202 06 POWER SUPPLY C,D,E,F2,G1,I,J,K
12 9J03 M100 00 FAN MOTOR
13 4034 2203 01 SCREW
14 9326 1000 51 FERRITE CORE
15 4034 2201 01 BRACKET
16 4034 0121 05 PWB ASSY
17 4508 3021 02 PWB-C/C J(Type 6)
17 4508 3022 01 PWB-C/C H(Type 7)
17 4508 3020 02 PWB-C/C C(Type 5)
17 4508 3019 02 PWB-C/C B,C,D,E,F1,F2,G1,G2,I,K(Typ e 1)
2 4034 6205 04 HV TRANSFORMER
3 4040 M600 00 Micro switch
4 4034 2032 01 LEVER
5 4021 2020 01 SHAFT
6 4034 2033 01 INSTRUCTIONS
7 4034 2016 02 BRACKET
8 9384 1900 56 PWB SUPPORT 6.35H C,D,E,F2,G1,I,J,K
9 4034 0125 01 PWB ASSY C,D,E,F2,G1,I,J,K
