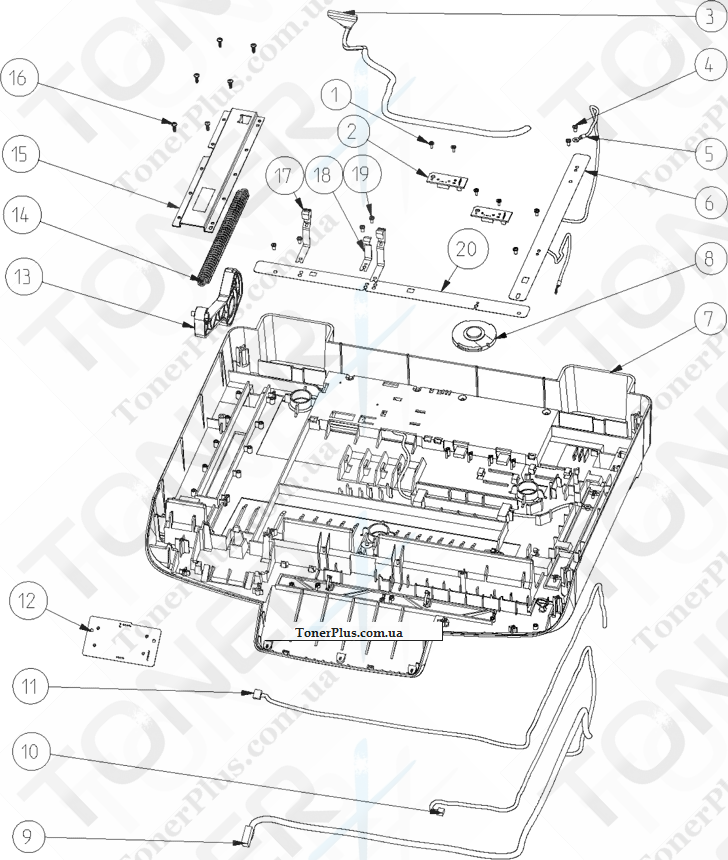

Каталог запчастей для Konica-Minolta bizhub 43 - Figure 15

Каталог запчастей для Konica-Minolta bizhub 43 - Figure 15
№ Номер партии Описание Примечание
1 186113907 Screw2x6mm washer6x0.5 torx
10 253074596 USB front cable
11 253066911 Cable Smartcart
12 253108579 Ref smartcard
13 253074913 Hinge injected
14 253074947 Spring hinge
15 253074934 Plate spring hinge
16 253090735 Screw torx 3x10mm
17 253074976 Ground spring LCD
18 253074989 Ground spring front panel
19 253074997 Screw torx 3x6mm
2 253093640 USB Host Back
20 253074955 Ground plate1
3 253083053 Ground plate to printer ground cable
4 253074997 Screw torx 3x6mm
5 253083053 HFFv2 ground plate to printer cable
6 253074968 Ground plate scanner tray
7 253074905 Scanner tray injected
8 253083029 HP HFF-V2
9 253066891 Front panel cable
