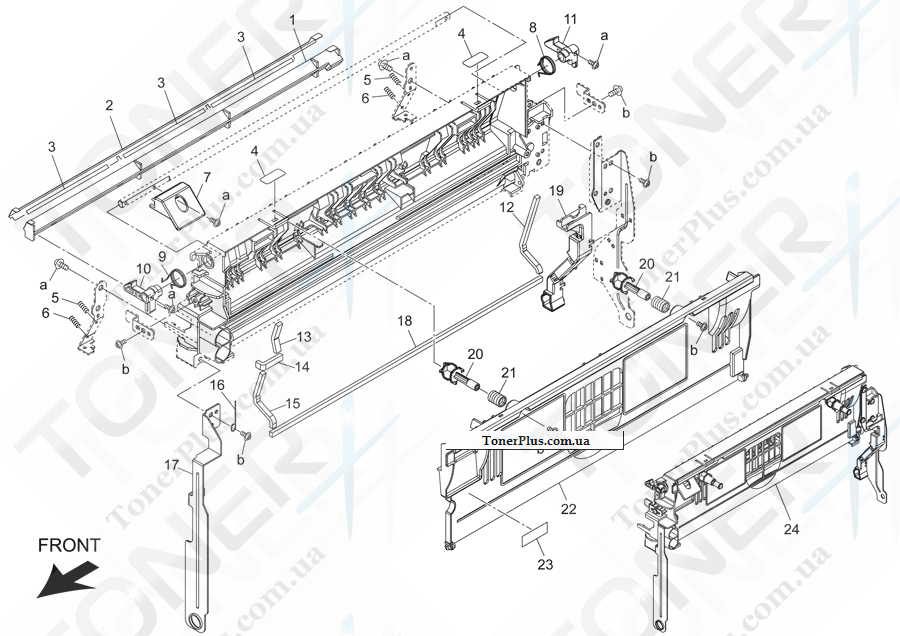

Каталог запчастей для Konica-Minolta bizhub 500 - CONVEYANCE UNIT

Каталог запчастей для Konica-Minolta bizhub 500 - CONVEYANCE UNIT
№ Номер партии Описание Примечание
1 50GA -913 0 PTL
10 50GA 4522 1 OPEN CLOSE LEVER 1
11 50GA 4531 1 OPEN CLOSE LEVER 2
12 50GA 4559 0 CONVEYANCE COVER PART 2
13 50GA 4575 0 CONVEYANCE COVER PART 5
14 50GA 4574 0 CONVEYANCE COVER PART 4
15 50GA 4573 0 CONVEYANCE COVER PART 3
16 50GA 4565 0 EARTH SHAFT 1
17 50GA 4527 0 CONVEYANCE SUPPORT PLATE 1
18 50GA 4558 0 CONVEYANCE COVER PART 1
19 50GA 4539 0 CORD COVER
2 50GA 4571 0 PTL LIGHT BLOCKING SHEET
20 50GA 4570 0 CONVEYANCE PRESSING PART
21 50GA 4572 0 CONVEYANCE PRESSING SPRING
22 50GA -452 0 CONVEYANCE COVER ASSY
23 56UA 9792 0 HIGE VOLTAGE CAUTION LABEL
24 50GA -450 0 CONVEYANCE UNIT
3 26NA 4552 0 STICKING PART
4 50GA 4553 0 CONVEYANCE COVER SHEET
5 26NA 4549 0 LIFTING SPRING 2
6 26NA 4507 1 LIFT UP SPRING
7 50GA 4535 1 CONVEYANCE HANDLE
8 50GA 4532 0 LOCK SPRING 1
9 50GA 4533 0 LOCK SPRING 2
