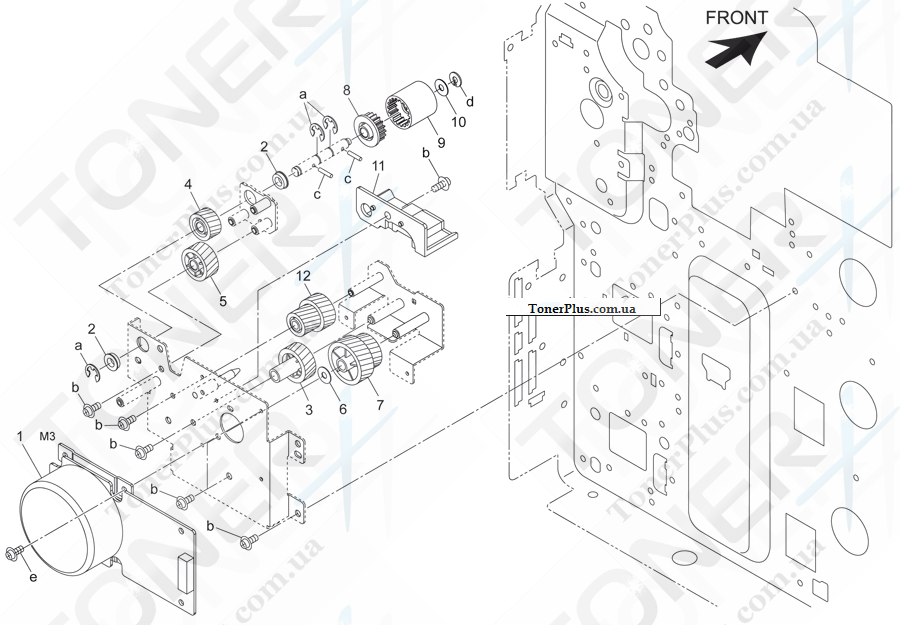

Каталог запчастей для Konica-Minolta bizhub 500 - DRIVING UNIT 3


Каталог запчастей для Konica-Minolta bizhub 500 - DRIVING UNIT 3
Номер партии Описание Примечание
1 27LA 8003 0 DC BRUSHLESS MOTOR 30
10 26NA 1759 0 SPACER B
11 50GA 1703 0 DUST PROOF COVER
12 50GA 1753 0 DEVELOPING DRIVE GEAR 3 25T 28T
2 26NA 1728 0 BALL BEARING
3 50GA 1752 0 DEVELOPING DRIVE GEAR 2 27T
4 40LA 1754 0 DEVELOPING DRIVE GEAR 6 32T
5 40LA 1755 0 DEVELOPING DRIVE GEAR 7 39T
6 1900 4141 0 PLYSLIDER 6
7 50GA 1751 0 DEVELOPING DRIVE GEAR 1 52T 26T
8 40LA 1756 0 DEVELOPING INPUT COUPLING A
9 26NA 1757 0 DEVELOPING INPUT COUPLING B
