Konica-Minolta bizhub C45

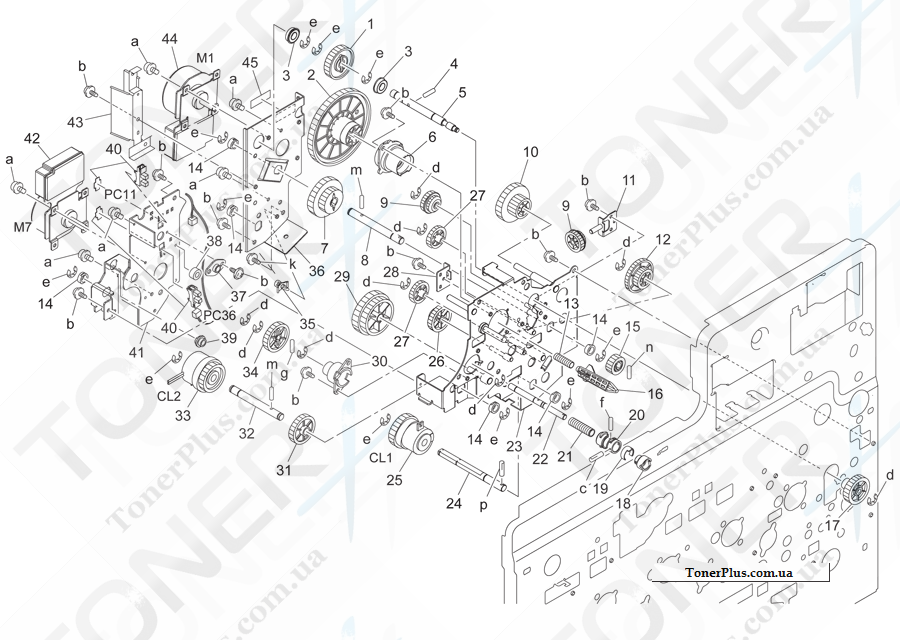

11. DRIVE SECTION
Каталог запчастей для Konica-Minolta bizhub C450P - DRIVE SECTION
№
Номер партии
Описание
Примечание
1
4004 2540 01
GEAR 88T
C
10
4036 2538 01
GEAR 44/80T
C
11
4004 2546 01
BRACKET
D
12
4036 2515 01
GEAR 27/91T
C
13
4036 2769 01
PRESSURE SPRING
D
14
1200 3131 08
BUSHING
C
15
4036 2514 01
GEAR 19T
C
16
4036 2766 02
JOINT
C
17
4036 2542 01
GEAR 13/39T
C
18
4004 2509 01
JOINT
C
19
4036 2775 01
CAP
D
2
4036 2754 02
GEAR 208T
C
20
4036 2774 01
JOINT
C
21
4004 2503 01
PRESSURE SPRING
D
22
4036 2520 01
SHAFT
D
23
4036 0208 01
BRACKET ASSY
D
24
4036 2531 01
SHAFT
D
25
9322 1300 31
CLUTCH
I
26
4036 2544 01
GEAR 21/36T
C
27
4036 2543 01
GEAR 32T
C
28
4036 2537 01
BRACKET
D
29
4036 2517 01
GEAR 52/114T
C
3
1300 4342 07
BALL BEARING
C
30
4036 2752 01
HOLDER
D
31
4036 2521 01
GEAR 40T
C
32
4036 2764 01
SHAFT
D
33
9322 1300 41
CLUTCH
I
34
4036 2519 01
GEAR 40T
C
35
9384 1621 21
PWB SUPPORT 6.4H
D
36
4036 2511 01
FRAME
D
37
4036 2768 01
BUSHING
C
38
1154 4670 01
PROTECTION
C
39
4036 2762 01
BUSHING
C
4
4004 2547 01
PIN
D
40
4037 0903 01
PHOTO INTERRUPTER
C
41
4036 2772 02
BRACKET
D
42
9314 2400 21
MOTOR
B
43
4036 2237 01
GUIDE
D
44
9314 2300 31
MOTOR
B
45
1129 7303 01
LABEL
D
5
4036 2541 01
SHAFT
D
6
4036 2767 01
BUSHING
C
7
4036 2513 01
GEAR 53/83T
C
8
4036 2512 01
SHAFT
D
9
4004 2545 01
GEAR 18/30T
C
